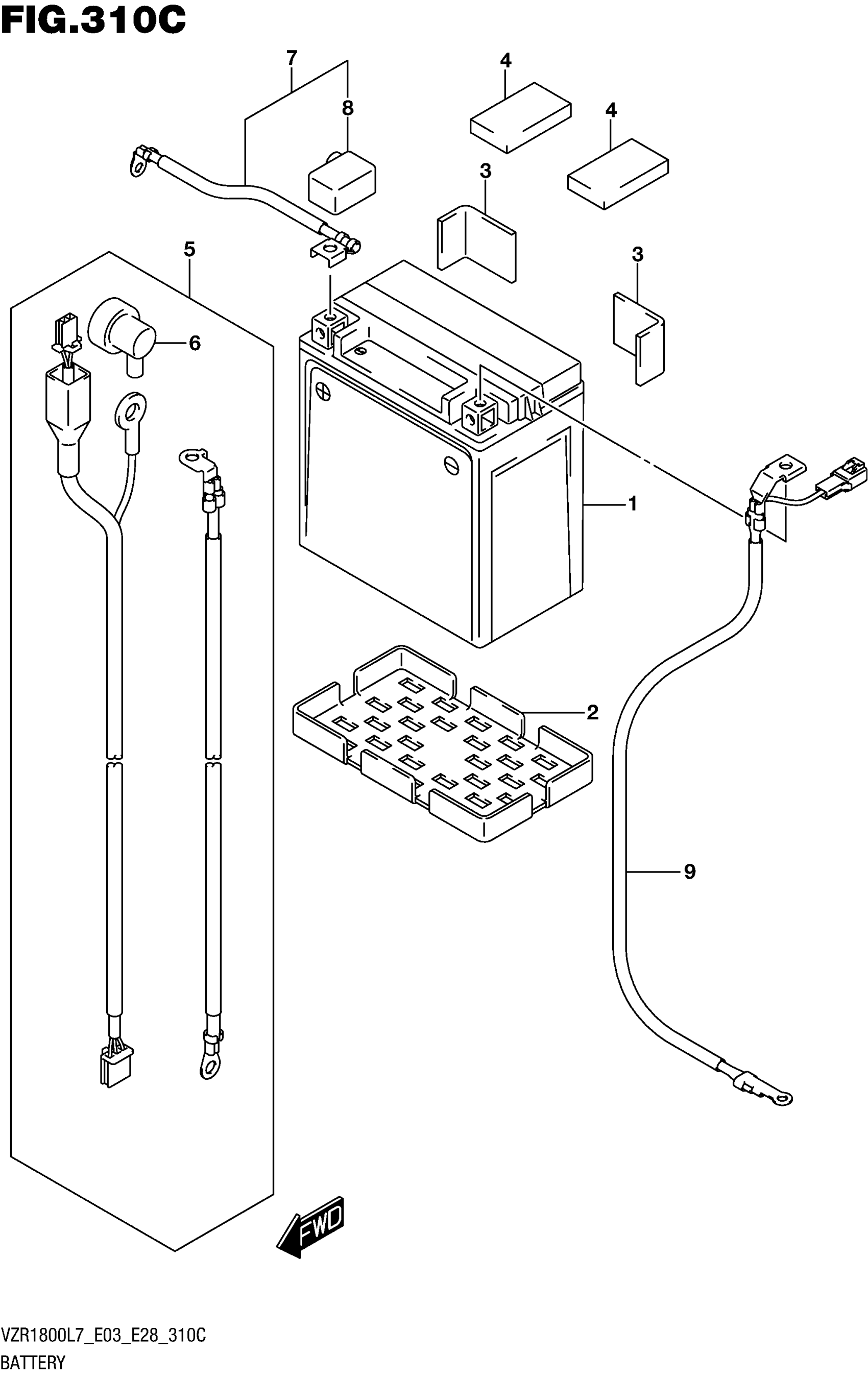

Suzuki VZR1800BZL7 (2017) BATTERY (VZR1800BZL7 E28) Diagram

#

Description

Price

1

BATTERY ASSY (FTZ16-BS,12V18A This part replaces 33630-31G00.

33630-31G01

$275.53

1

BATTERY ASSY (FTZ16-BS,12V18A This part replaces 33630-31G00.

33630-31G01

$275.53

2

PROTECTOR,BATTERY

33652-16G00

$13.50

3

PROTECTOR (30X50X3.0)

33652-36000

$2.87

4

CUSHION, REAR FENDER REAR | CUT AS REQUIRED This part replaces 33652-08420.

33651-37000

$4.09

5

WIRE,STARTER MOTOR LEAD This part replaces 33810-48G01.

33810-48G02

$85.35

6

.CAP, OIL PRESSURE SWITCH

36618-31J00

Unavailable

7

WIRE,BATTERY PLUS LEAD This part replaces 33820-48G00.

33820-48G01

$36.40

8

.CAP, BATTERY PLUS

33624-10D00

$7.12

9

WIRE, BATTERY MINUS LEAD

33860-48G10

Unavailable
