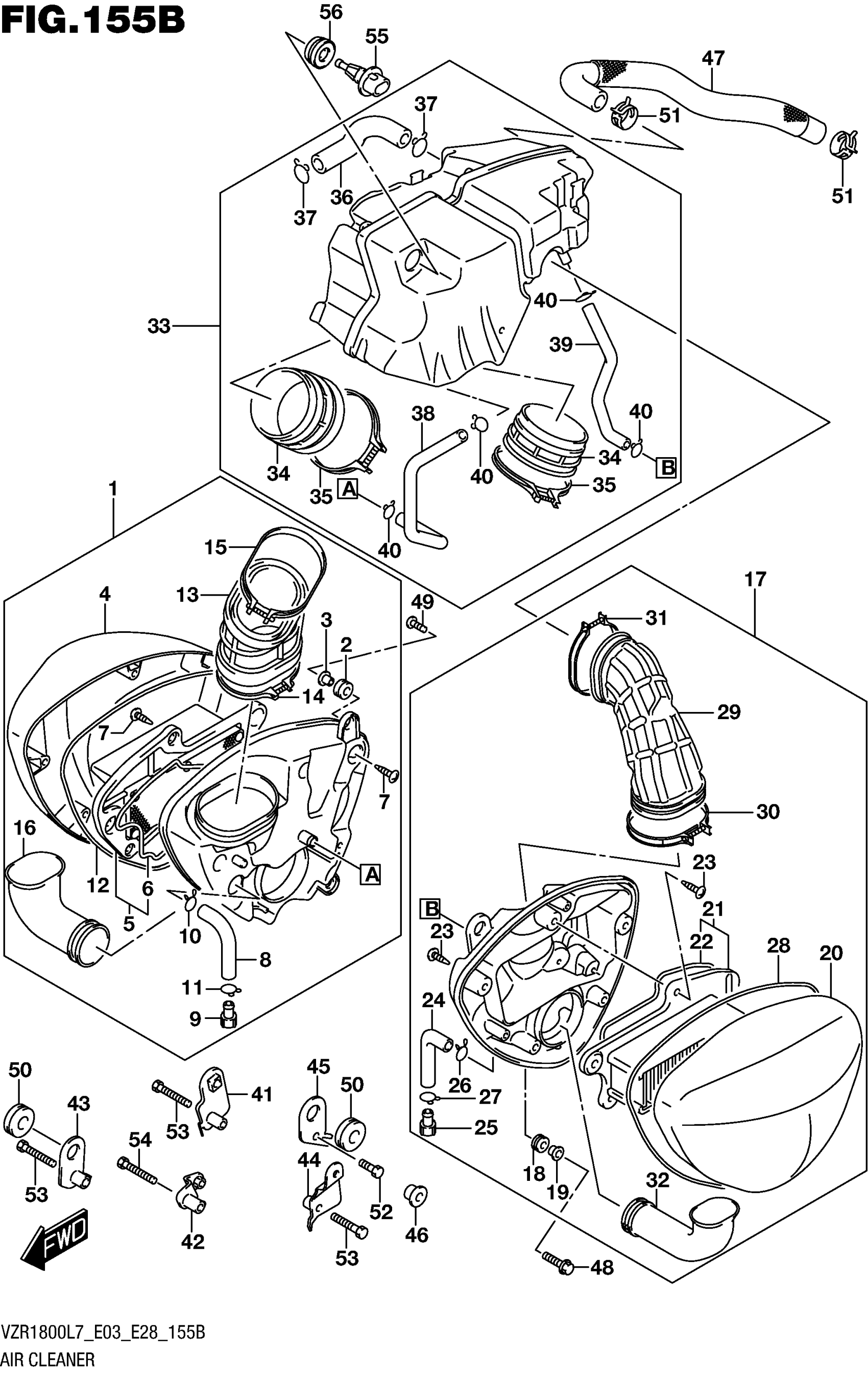

Suzuki VZR1800BZL7 (2017) AIR CLEANER (VZR1800BZL7 E03) Diagram

#

Description
Price

1

CLEANER,AIR,R This part replaces 13701-48G40.

13701-48G41

$469.68

2

.CUSHION

09320-09016

$1.97

3

.COLLAR, CLEANER CASE

13812-29C50

$3.05

4

.CAP, AIR CLEANER

13741-48G40

$227.88

5

.FILTER, AIR CLEANER

13780-48G20

$58.02

6

..GASKET, FILTER

13747-48G00

$16.10

7

.SCREW

03111-0516A

$1.85

8

.TUBE This part replaces 13873-48G00.

13873-48G01

$19.43

9

.PLUG

13877-00190

$6.00

10

.CLIP

09401-14301

$2.17

11

.CLIP

09401-15101

$2.28

12

.GASKET, CASE

13746-48G00

$19.23

13

.TUBE, JOINT RH

13739-48G00

$88.87

14

.CLAMP

13826-48G00

$23.93

15

.CLAMP This part replaces 13827-48G00.

13827-22H00

$24.83

16

.TUBE, INLET

13891-48G20

Unavailable

17

CLEANER,AIR,L This part replaces 13702-48G40.

13702-48G41

$370.17

18

.CUSHION

09320-09016

$1.97

19

.COLLAR, CLEANER CASE

13812-29C50

$3.05

20

.CAP, AIR CLEANER

13741-48G40

$227.88

21

.FILTER, AIR CLEANER

13780-48G20

$58.02

22

..GASKET, FILTER

13747-48G00

$16.10

23

.SCREW

03111-0516A

$1.85

24

.TUBE This part replaces 13873-48G00.

13873-48G01

$19.43

25

.PLUG

13877-00190

$6.00

26

.CLIP

09401-14301

$2.17

27

.CLIP

09401-15101

$2.28

28

.GASKET, CASE

13746-48G00

$19.23

29

.TUBE, JOINT LH

13739-48G10

$88.87

30

.CLAMP

13826-48G00

$23.93

31

.CLAMP This part replaces 13827-48G00.

13827-22H00

$24.83

32

.TUBE, INLET

13891-48G20

Unavailable

33

CHAMBER,AIR CLEANER This part replaces 13710-48G30.

13710-48G31

$267.38

34

.TUBE, OUTLET

13881-48G00

$33.12

35

.CLAMP

13826-22H00

$5.23

36

.HOSE This part replaces 13865-48G00.

13865-48G01

$24.37

37

.CLIP

09401-15101

$2.28

38

.TUBE,DRAIN This part replaces 13871-48G00.

13871-48G01

$28.47

39

.TUBE,DRAIN This part replaces 13871-48G10.

13871-48G11

$27.95

40

.CLIP

09401-13409

$2.13

41

BRACKET, NO.1

13760-48G00

$39.33

42

BRACKET, NO.2

13760-48G10

$27.13

43

BRACKET, NO.3

13760-48G20

$17.53

44

BRACKET, NO.4

13770-48G00

$31.90

45

BRACKET, NO.5

13770-48G10

$5.52

46

SPACER, AIR CLEANER, LH

13838-48G10

$9.70

47

TUBE, BREATHER

13850-48G10

$77.22

48

BOLT (6X35)

09139-06154

$4.92

49

BOLT (6X20)

09139-06155

$4.03

50

CUSHION

09320-08028

$2.80

51

CLIP

09401-20405

$4.43

52

BOLT

01500-0612A

$1.80

53

BOLT

01500-0625A

$1.77

54

BOLT (6X35)

09139-06154

$4.92

55

SENSOR, AIR TEMP

13650-52G00

$93.45

56

.GROMMET,AIR TEMP SENSOR This part replaces 13655-77E00.

13655-77E10

$4.33
