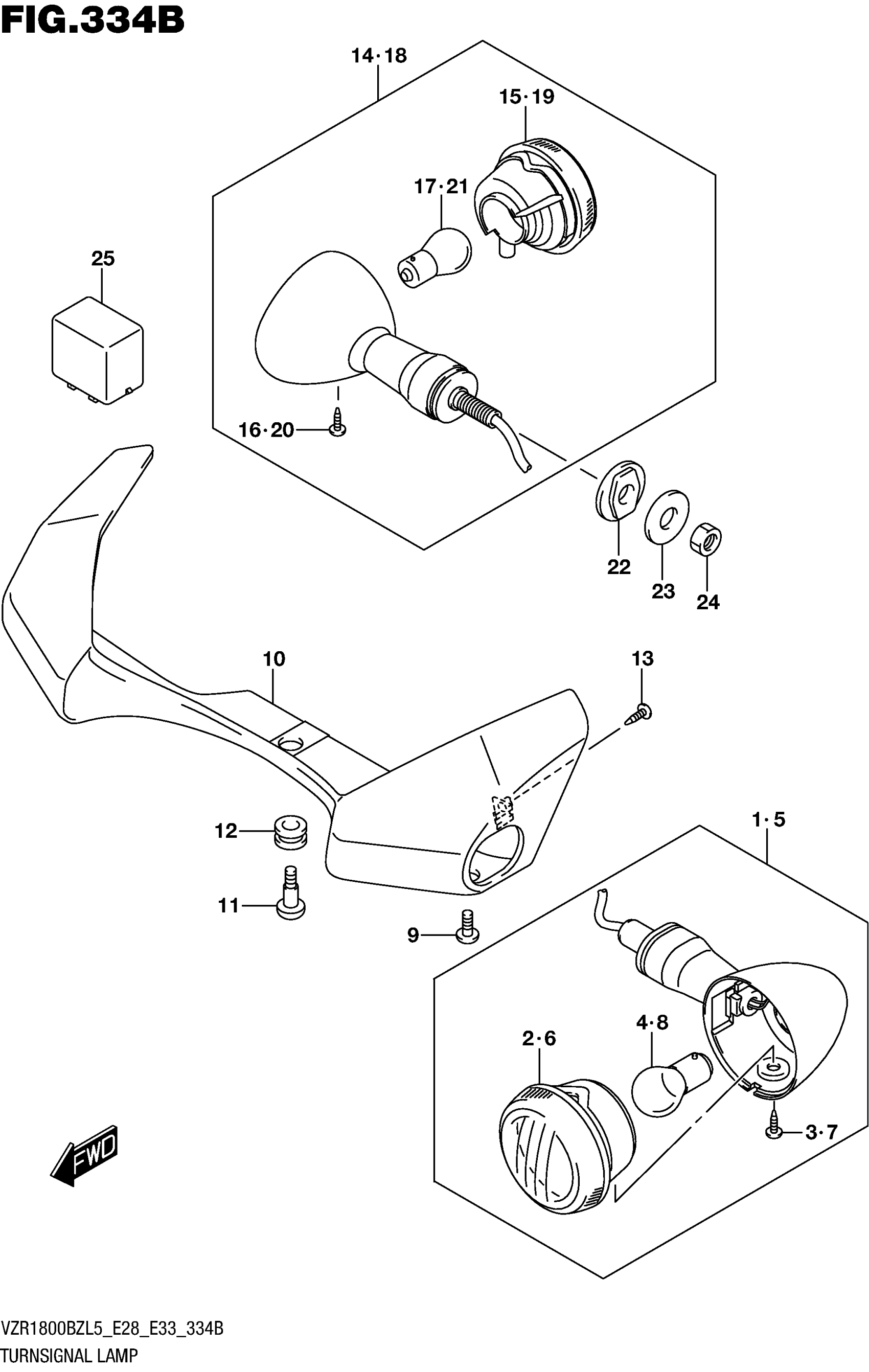

Suzuki VZR1800BZL5 (2015) TURNSIGNAL LAMP (VZR1800BZL5 E33) Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL RH

35601-38AF0

$114.67

2

LENS | FOR AMBER

35610-38AA0

$31.91

3

SCREW (4X10)

35623-38AA0

$5.11

4

BULB (12V,21/5W) | FOR CLEAR This part replaces 09471-12083.

09471-12128

$6.73

5

LAMP ASSY, FRONT TURNSIGNAL LH

35602-38AF0

$114.67

6

LENS | FOR AMBER

35630-38AA0

$31.91

7

SCREW (4X10)

35623-38AA0

$5.11

8

BULB (12V,21/5W) | FOR CLEAR This part replaces 09471-12083.

09471-12128

$6.73

9

SCREW

02142-0612A

$1.49

10

COVER, FRONT TURNSIGNAL

35641-48G00

$190.33

11

SCREW (6X16)

09139-06146

$2.95

12

CUSHION

09320-09016

$1.97

13

SCREW

03541-0512A

$1.49

14

LAMP ASSY,RR TURNSIGNAL RH This part replaces 35603-48EC0.

35603-48EC1

$92.68

15

LENS | FOR AMBER

35630-38AE1

$31.91

16

SCREW (4X10)

35623-38AA0

$5.11

17

BULB (12V,21W) | FOR CLEAR

09471-12045

$3.27

18

LAMP ASSY,RR TURNSIGNAL LH This part replaces 35604-38AE0.

35604-38AE1

$86.00

19

LENS | FOR AMBER

35610-38AE1

$31.91

20

SCREW (4X10)

35623-38AA0

$5.11

21

BULB (12V,21W) | FOR CLEAR

09471-12045

$3.27

22

SPACER, REAR TURNSIGNAL LAMP

35695-17C00

$4.03

23

WASHER (10.5X30X2.3)

09160-10501

$2.33

24

NUT

08310-0010A

$1.84

25

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08
