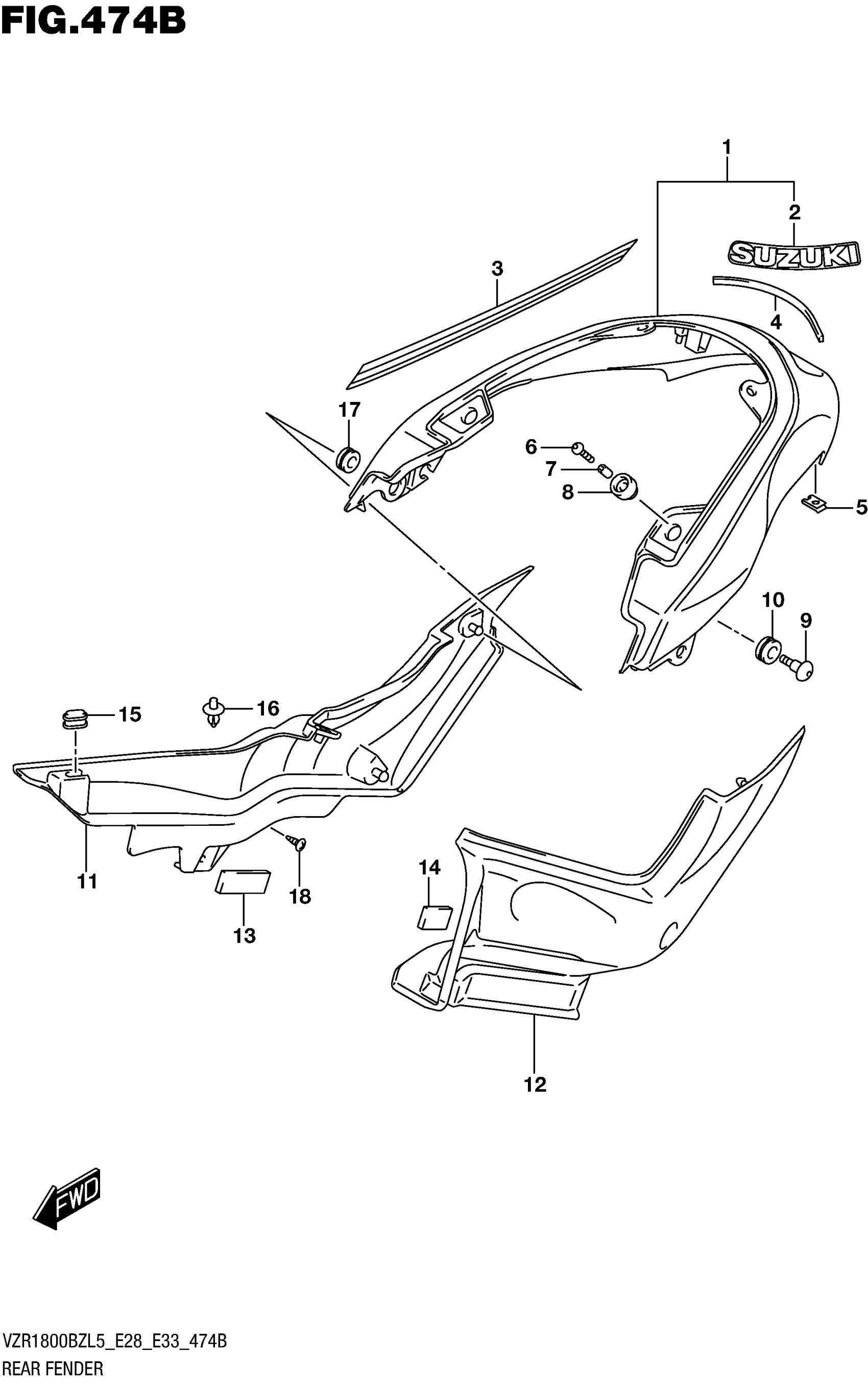

Suzuki VZR1800BZL5 (2015) REAR FENDER (VZR1800BZL5 E33) Diagram

#

Description
Price

1

FENDER, REAR (WHITE/BLACK)

63110-48G70-AR5

$1,547.94

1

FENDER, REAR (RED/BLACK)

63110-48G70-AV4

Unavailable

2

TAPE SET, REAR FENDER | FOR AR5

68170-48GB0-A7D

Unavailable

2

TAPE SET, REAR FENDER | FOR AV4

68170-48GB0-A7Q

$56.25

3

EMBLEM, SUZUKI (SILVER/BLACK) | FOR AR5

68161-44GA0-APT

$13.48

3

EMBLEM, SUZUKI (SILVER/RED) | FOR AV4

68161-44GA0-A71

Unavailable

4

CUSHION, LAMP

63117-39G00

$4.65

5

NUT COWL

94484-24F00

$4.03

6

SCREW (6X16)

09139-06139

$3.23

7

SPACER (6.5X10X9.4)

09180-06286

$2.50

8

CUSHION

09320-10045

$3.76

9

BOLT (6X20)

09139-06190

$4.17

10

CUSHION

09320-09016

$1.97

11

COVER, FENDER RH (WHITE) | FOR AR5

63171-48G51-RB5

Unavailable

11

COVER, FENDER RH (BLACK) | FOR AV4

63171-48G51-YVB

$213.09

12

COVER, FENDER LH (WHITE) | FOR AR5

63181-48G51-RB5

Unavailable

12

COVER, FENDER LH (BLACK) | FOR AV4

63181-48G51-YVB

$250.68

13

CUSHION, RH

15439-70G10

$4.33

14

CUSHION, LH

47161-19C00

$3.03

15

CUSHION,FUEL TANK COVER This part replaces 44276-29G00.

44276-29G01

$3.56

16

CLIP (BLACK)

09409-06314-5PK

$2.78

17

CUSHION

09320-08028

$3.04

18

SCREW

03541-0516A

$1.49
