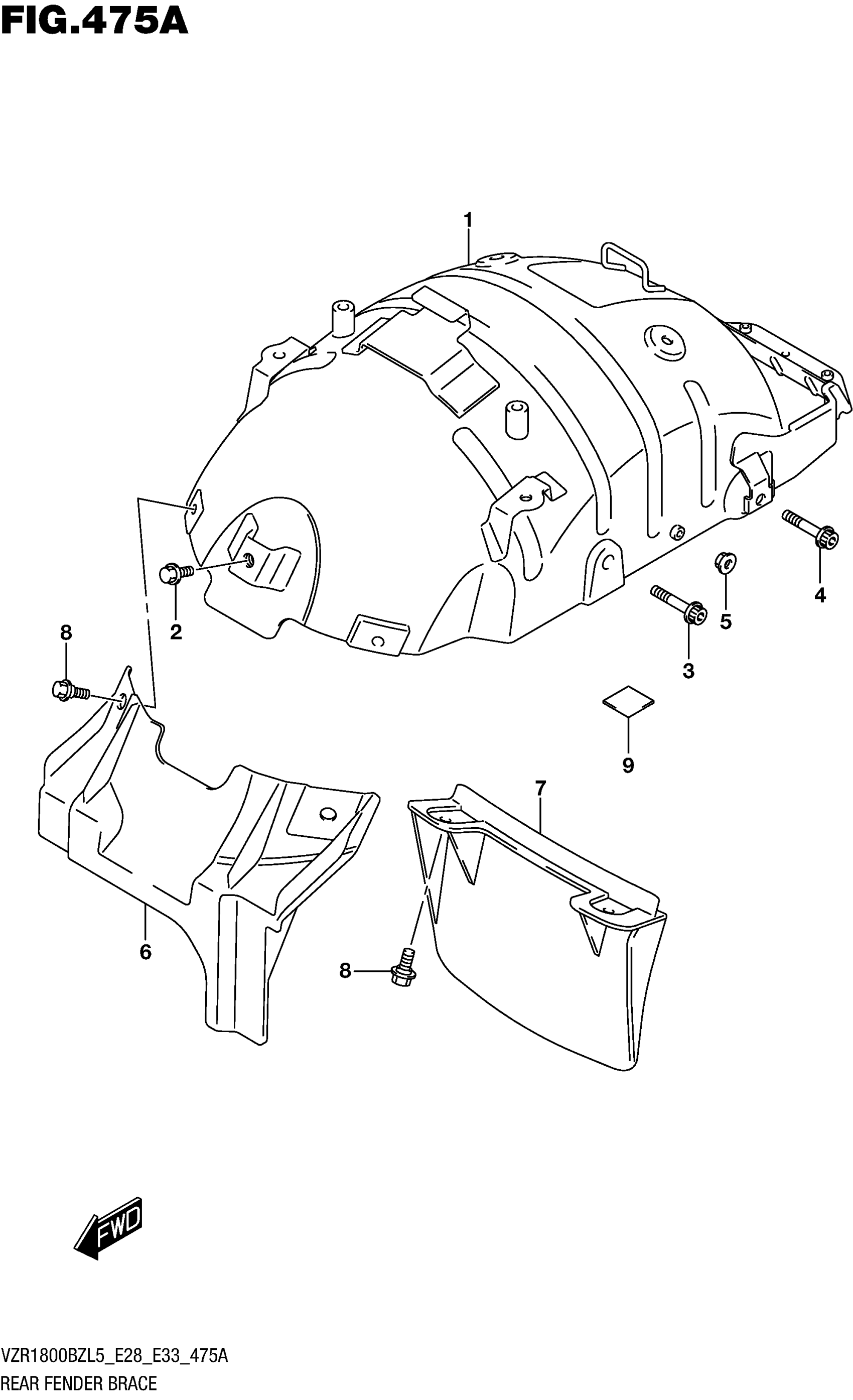

Suzuki VZR1800BZL5 (2015) REAR FENDER BRACE Diagram

#

Description
Price

1

BRACE, REAR FENDER

63140-48G00

$535.48

2

BOLT (8X12) | FRONT

01550-0812A

$2.38

3

BOLT (8X70) | FRONT

09106-08182

$3.96

4

BOLT (8X50) | REAR

09106-08183

$3.50

5

NUT

08316-1008A

$2.56

6

MUDGUARD, FRONT UPPER

63411-48G00

Unavailable

7

MUDGUARD, FRONT LOWER

63421-48G00

Unavailable

8

BOLT (6X12)

09111-06107

$2.66

9

.CUSHION (15X15X1) This part replaces 94429-13E00.

94429-20K00

$1.73
