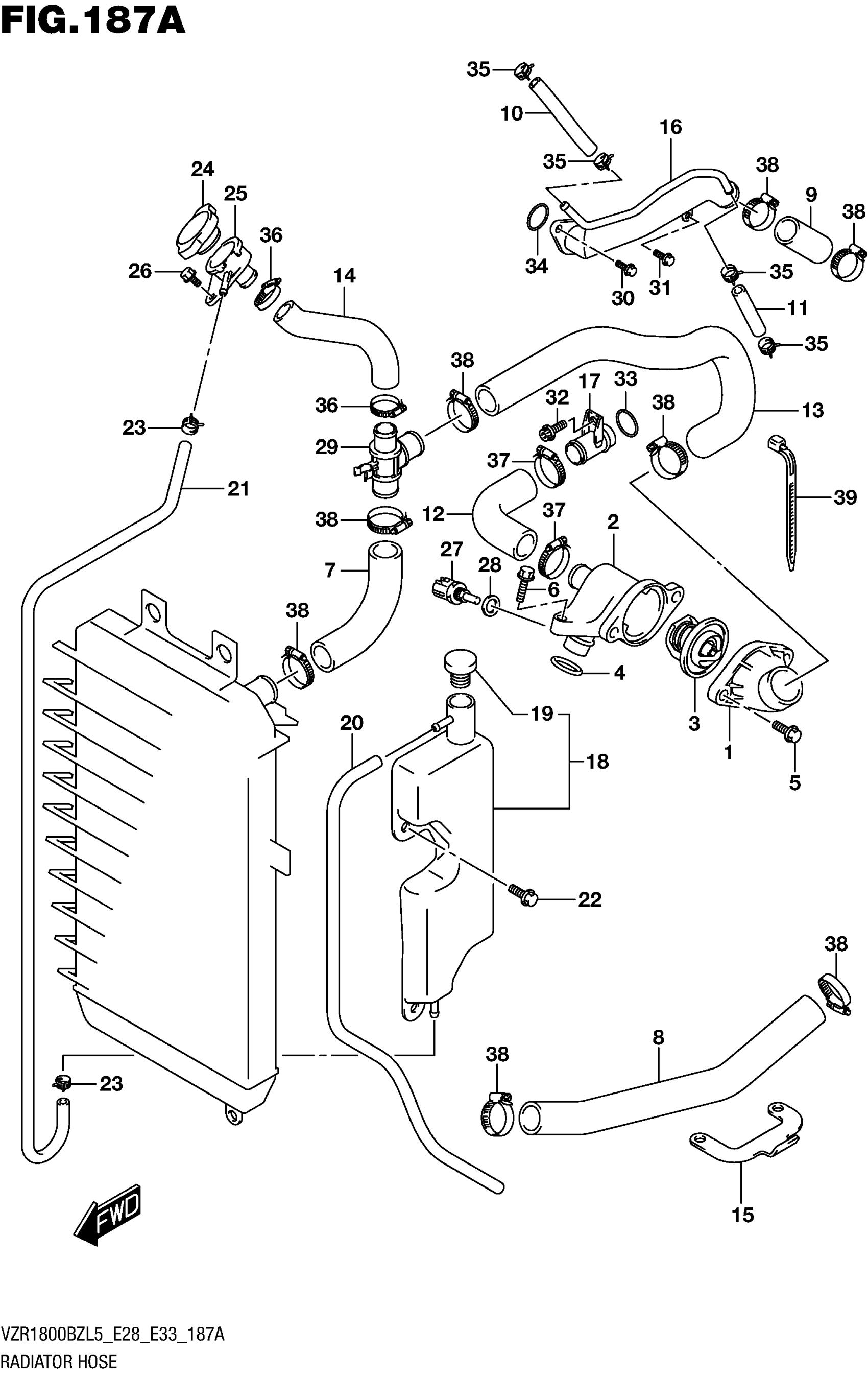

Suzuki VZR1800BZL5 (2015) RADIATOR HOSE Diagram

#

Description
Price

1

COVER, THERMOSTAT

17661-48G10

$29.83

2

CONNECTOR, HERMOSTAT INLET

17662-48G00

$97.95

3

THERMOSTAT,WATER This part replaces 17670-06G50.

17670-06G51

$25.77

4

O RING (D:3.2,ID:17.8) This part replaces 09280-18008.

09280-18009

$5.83

5

BOLT

01547-0620A

$2.03

6

BOLT

01547-0625A

$2.01

7

HOSE, RADIATOR INLET

17851-48G00

$22.22

8

HOSE, RADIATOR OUTLET

17852-48G00

$43.68

9

HOSE, CYLINDER INLET

17853-48G00

$11.35

10

HOSE, WATER BYPASS UPPER

17854-48G00

$14.77

11

HOSE, WATER BYPASS LOWER

17855-48G00

$7.05

12

HOSE, REAR CYL HEAD OUTLET

17856-48G00

$16.15

13

HOSE, THERMOSTAT OUTLET

17857-48G10

$50.98

14

HOSE, CONDUCTION

17858-48G00

$18.08

15

BRACKET, HOSE GUIDE

17859-48G00

Unavailable

16

PIPE, CYL WATER INLET

17860-48G00

$175.18

17

UNION, CONNECTOR HOSE

17890-06G20

$14.43

18

TANK ASSY, RESERVOIR

17910-48G00

$63.82

19

.CAP,RESERVOIR TANK

17931-02FA0

$5.56

20

HOSE (5X9X2000) | L:2000->700

09352-50901-00B

$26.94

21

HOSE, TANK INLET

17981-48G00

$24.07

22

BOLT (6X12)

09111-06085

$4.54

23

CLIP

09401-08411

$1.78

24

CAP

17730-08J00

$42.50

25

CONDUCTION

17791-24D00

$61.15

26

BOLT

01550-0612A

$1.97

27

SENSOR, WATER TEMP

13650-10G00

$87.24

28

GASKET (12X17X1)

09168-12017

$1.95

29

JOINT, 3 WAY

17891-48G00

$11.37

30

BOLT (6X16)

09103-06274

$2.03

31

BOLT (6X12)

09103-06280

$3.03

32

BOLT

07130-0612A

$2.50

33

O RING (D:3.2,ID:17.8) This part replaces 09280-18008.

09280-18009

$5.83

34

O RING (D:2.4,ID:26.2)

09280-26005

$2.30

35

CLIP

09401-12414

$3.26

36

CLAMP

09402-28513

$6.88

37

CLAMP

09402-32512

$12.85

38

CLAMP

09402-38512

$11.72

39

CLAMP (L:235)

09407-25401

$4.66
