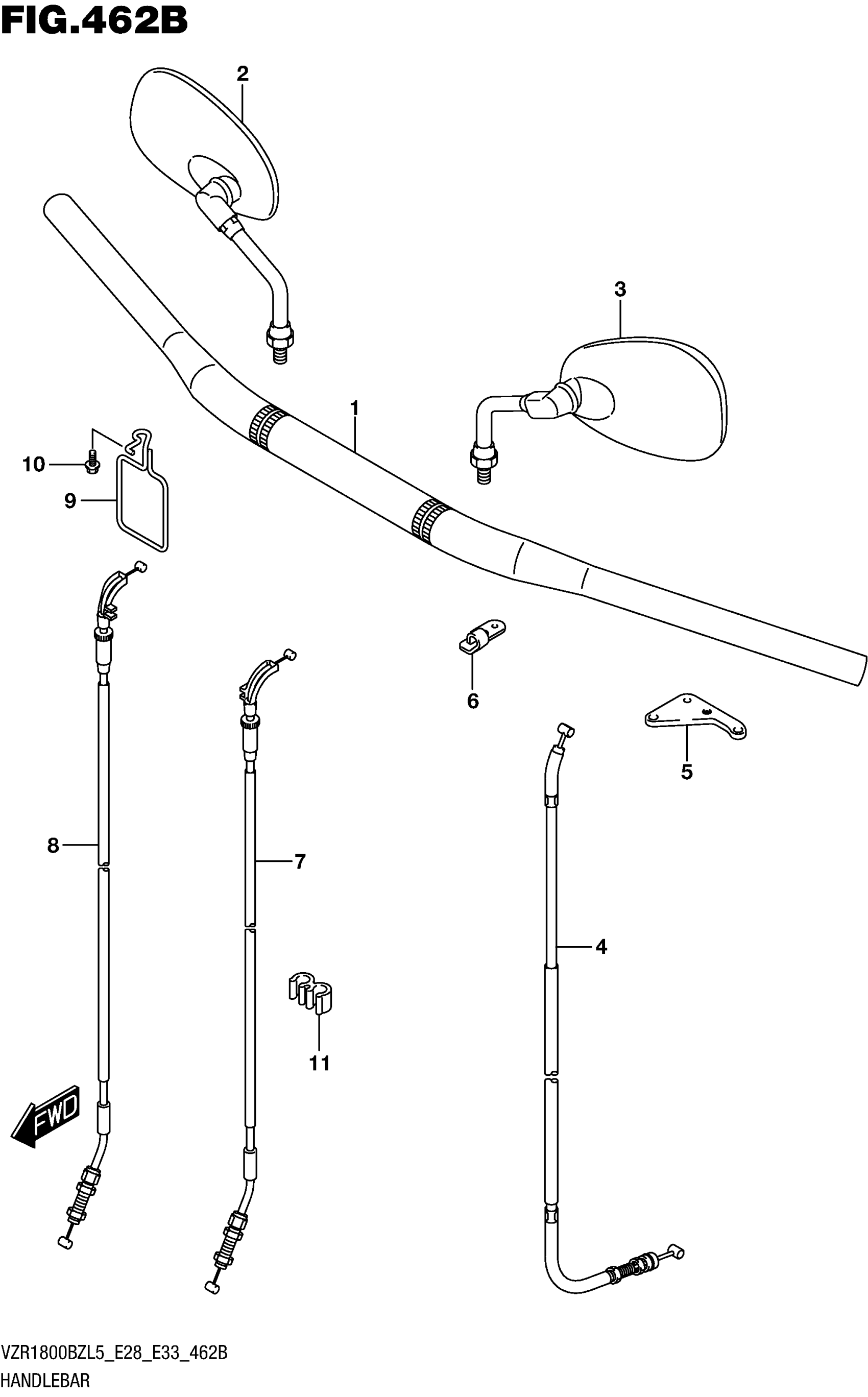

Suzuki VZR1800BZL5 (2015) HANDLEBAR (VZR1800BZL5 E33) Diagram

#

Description

Price

1

HANDLEBAR This part replaces 56110-48G10.

56110-48G11

$162.61

2

MIRROR ASSY, REAR VIEW RH

56500-41F90

$152.93

3

MIRROR ASSY, REAR VIEW LH

56600-41F90

$152.20

4

CABLE ASSY, CLUTCH

58200-48G11

$69.14

5

STOPPER, CLUTCH CABLE NO.1

58634-48G00

$15.42

6

STOPPER, CLUTCH CABLE NO.2

58635-48G01

$14.03

7

CABLE ASSY,THROTTLE NO.1 This part replaces 58300-48G40.

58300-48G41

$51.82

8

CABLE ASSY,THROTTLE NO.2 This part replaces 58300-48G50.

58300-48G51

$51.32

9

GUIDE, CABLE NO.2

58620-48GC0

Unavailable

10

BOLT

01550-0612A

$1.97

11

CLIP

09408-00244

$2.83
