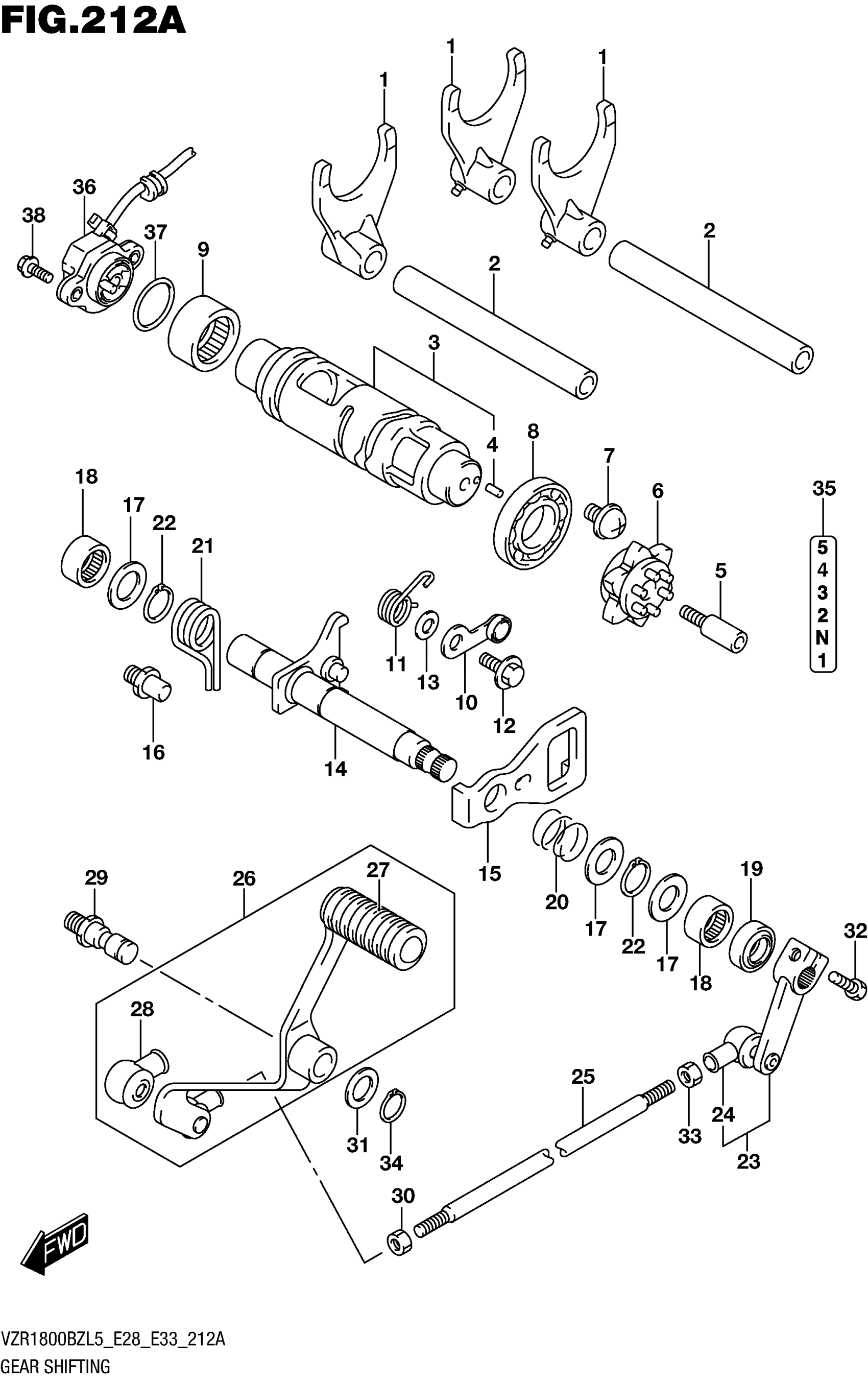

Suzuki VZR1800BZL5 (2015) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT NO.1

25211-35F11

$82.82

2

SHAFT, GEAR SHIFT FORK

25411-48G00

$24.36

3

CAM, GEAR SHIFT

25310-48G00

$275.40

4

PIN (4X13.8)

04221-04089

$1.15

5

BOLT, GEAR SHIFT CAM PLATE

25312-42F01

$7.60

6

PLATE, GEAR SHIFT CAM

25381-13E00

$63.22

7

SCREW (6X12)

09136-06147

$3.48

8

BEARING (25X47X8)

09262-25006

$23.85

9

BEARING (25X32X12)

09263-25018

$19.88

10

STOPPER,SHIFT CAM This part replaces 25350-06G00.

25350-06G10

$20.35

11

SPRING, GR SHF CAM STOPPER ARM

25355-38F00

$5.52

12

BOLT (6X14.3)

09111-06041

$2.73

13

WASHER

08211-06141

$1.66

14

SHAFT, GEAR SHIFT

25510-48G00

$125.93

15

PLATE, GEAR SHIFT CAM DRIVE

25512-13E20

$43.10

16

STOPPER, GEAR SHIFT ARM

25671-01011

$4.28

17

SHIM (14X22X1)

09181-14167

$2.64

18

BEARING (14X20X12)

09263-14027

$12.57

19

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

$6.23

20

SPRING

09440-17009

$1.80

21

SPRING

09444-20001

$4.97

22

CIRCLIP

08331-3114A

$1.97

23

ARM,GEAR SHIFT LINK This part replaces 25520-48G00.

25520-48G01

$50.33

24

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.21

25

ROD, GEAR SHIFT LINK

25525-48G00

$13.42

26

LEVER ASSY,GEAR SHIFT This part replaces 25600-48G10.

25600-48G11

$121.42

27

RUBBER, GEAR SHIFT

25652-38B00

$5.27

28

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.21

29

SHAFT, GEAR SHIFT LEVER

25617-03F10

$11.80

30

NUT

09140-06025

$1.89

31

WASHER (12.5X20X1)

09160-12011

$1.52

32

BOLT

01547-0620A

$2.10

33

NUT

08310-0006A

$1.89

34

CIRCLIP

08331-3112A

$1.82

35

LABEL, GEAR SHIFT

68392-38B00

Unavailable

36

SENSOR ASSY,GEAR POSITION This part replaces 37730-48G02.

37730-48G03

$70.31

37

O RING (D:2.4,ID:26.2)

09280-26005

$2.38

38

BOLT (5X16)

09106-05023

$2.80
