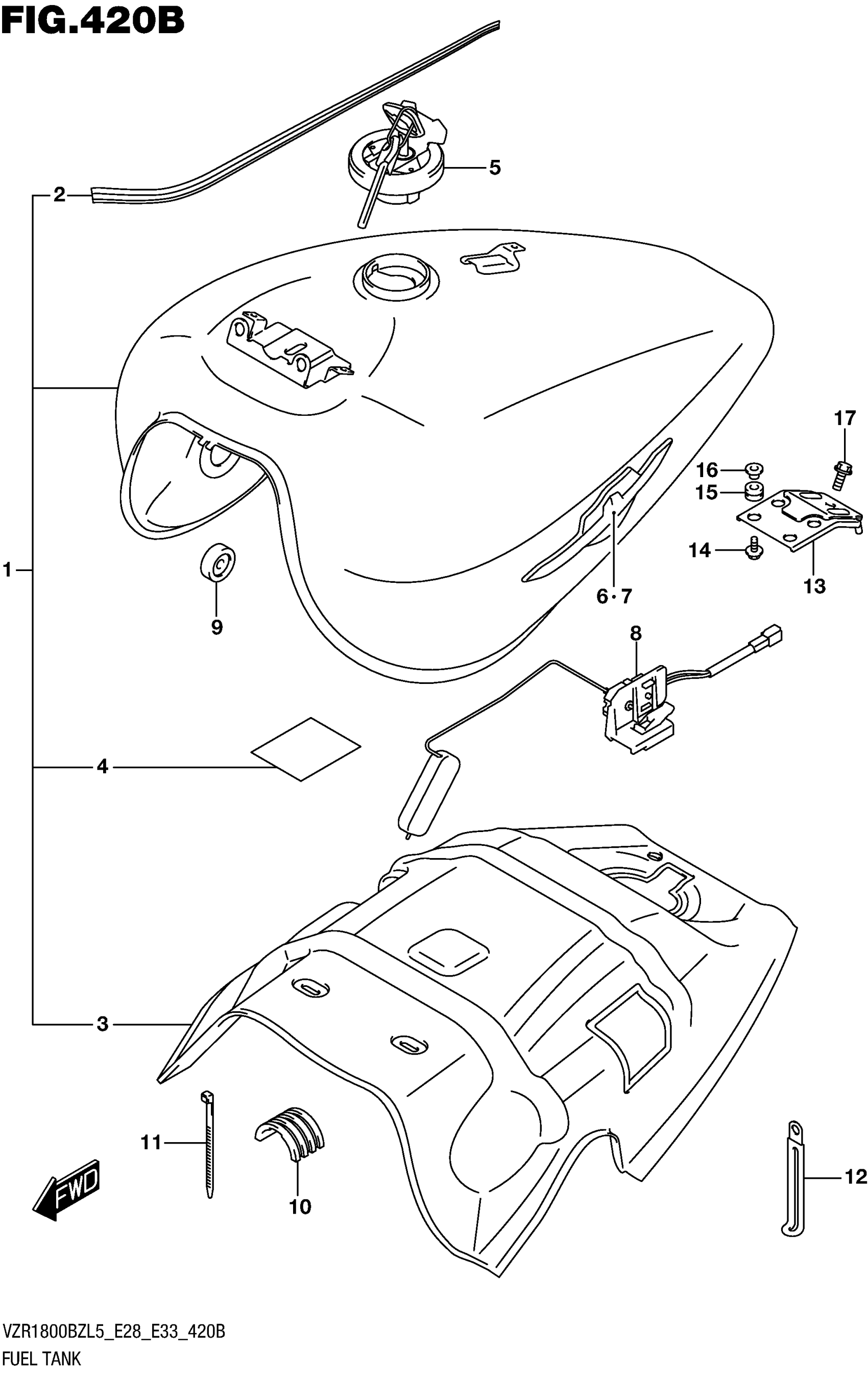

Suzuki VZR1800BZL5 (2015) FUEL TANK (VZR1800BZL5 E33) Diagram

#

Description
Price

1

TANK ASSY, FUEL (WHITE/BLACK)

44100-48GQ0-AR5

Unavailable

1

TANK ASSY, FUEL (RED/BLACK)

44100-48GQ0-AV4

Unavailable

2

TAPE SET, FUEL TANK | FOR AR5

68110-48GB0-A7D

Unavailable

2

TAPE SET, FUEL TANK | FOR AV4

68110-48GB0-A7Q

Unavailable

3

SHIELD, TANK HEAT

44191-48G10

$336.25

4

TAPE

44192-48G00

$15.18

5

CAP SET,FUEL TANK This part replaces 44200-39870.

44200-39871

$237.20

6

EMBLEM, RH

68111-48G01

$70.02

7

EMBLEM, LH

68121-48G01

$71.38

8

GAUGE ASSY,FUEL This part replaces 34810-48G00.

34810-48G01

$61.74

9

CUSHION | FRONT This part replaces 09329-10007.

09329-10026

$2.23

10

CUSHION, FUEL TANK

44541-13E10

$26.73

11

CLAMP (L:300)

09407-30402

$4.11

12

CLAMP(L:80) | SHIELD This part replaces 09404-06434.

09404-06036

$1.74

13

BRACKET, REAR

44530-48G10

$47.07

14

BOLT (6X20)

09116-06192

$2.30

15

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

16

WASHER

09169-06062

$2.50

17

BOLT (8X16) | REAR

01550-0816A

$2.32
