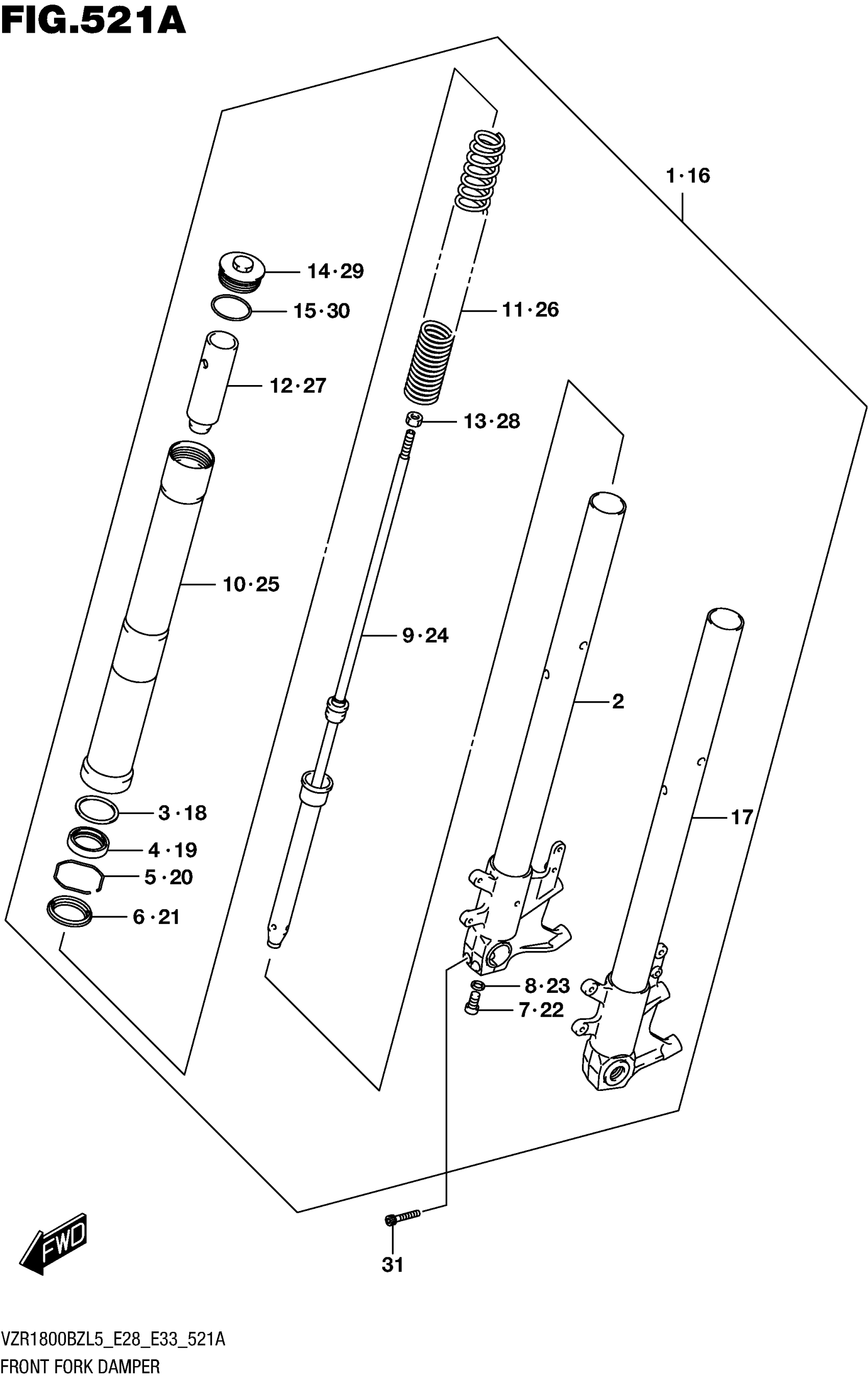

Suzuki VZR1800BZL5 (2015) FRONT FORK DAMPER (VZR1800BZL5 E28) Diagram

#

Description
Price

1

DAMPER ASSY,FR FORK,RH This part replaces 51103-48G30.

51103-48G31

$1,567.10

2

TUBE, INNER RH

51110-48G30

$948.58

3

WASHER

51158-27C00

$5.93

4

OIL SEAL

51153-48G00

$24.07

5

RING, STOPPER

51156-27C00

$5.71

6

SEAL, DUST

51173-42F00

$25.43

7

BOLT

51147-05H00

$6.10

8

GASKET

51148-41310

$2.14

9

CYLINDER

51146-48G20

Unavailable

10

TUBE, OUTER

51130-48G30

Unavailable

11

SPRING, FRONT

51171-48G20

$122.46

12

SPACER, SPRING

51176-21H00

$30.92

13

.NUT, ROD

51352-13A60

$3.42

14

CAP

51351-48G30

Unavailable

15

..O RING This part replaces 51117-48G00.

51117-48G01

$3.00

16

DAMPER ASSY,FR FORK,L This part replaces 51104-48G30.

51104-48G31

$1,692.47

17

TUBE, INNER LH

51120-48G30

$948.58

18

WASHER

51158-27C00

$5.93

19

OIL SEAL

51153-48G00

$24.07

20

RING, STOPPER

51156-27C00

$5.71

21

SEAL, DUST

51173-42F00

$25.43

22

BOLT

51147-05H00

$6.10

23

GASKET

51148-41310

$2.14

24

CYLINDER

51146-48G20

Unavailable

25

TUBE, OUTER

51130-48G30

Unavailable

26

SPRING, FRONT

51171-48G20

$122.46

27

SPACER, SPRING

51176-21H00

$30.92

28

.NUT, ROD

51352-13A60

$3.42

29

CAP

51351-48G30

Unavailable

30

..O RING This part replaces 51117-48G00.

51117-48G01

$3.00

31

BOLT

51328-39G20

$13.27
