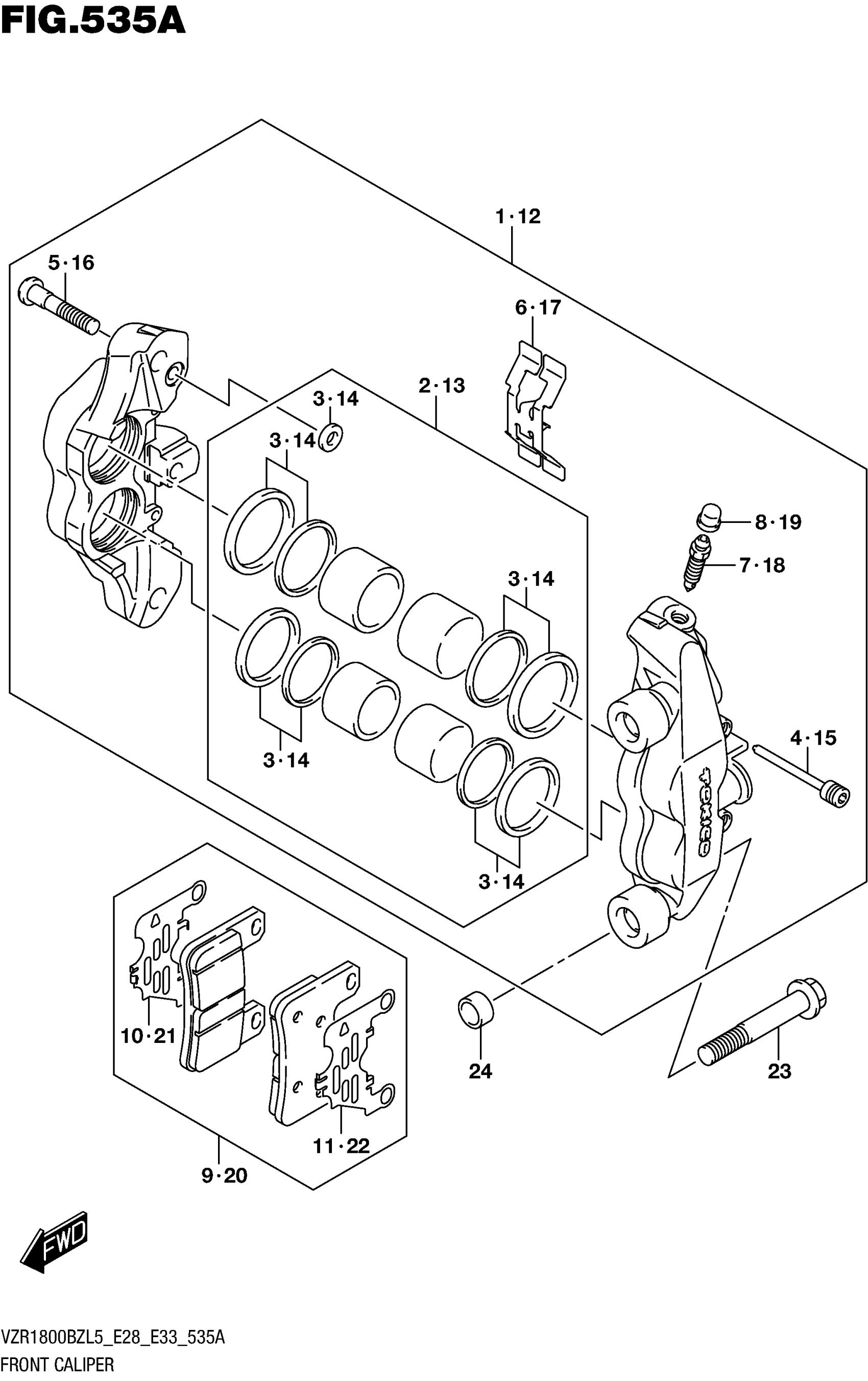

Suzuki VZR1800BZL5 (2015) FRONT CALIPER (VZR1800BZL5 E28) Diagram

#

Description
Price

1

CALIPER ASSY, FRONT RH

59100-41G40-999

$621.97

2

PISTON SET

59100-35870

$109.45

3

SEAL SET, PISTON This part replaces 59100-35820.

59100-29830

$42.60

4

PIN

59141-41G10

$26.99

5

BOLT

59145-18G00

$9.92

6

SPRING, PAD

59151-29G00

$12.48

7

BLEEDER

59121-18410

$8.73

8

CAP, BLEEDER PLUG

55156-66310

$5.17

9

PAD & SHIM SET

59100-29850

$47.16

10

SHIM, PAD A

59171-41G00

$15.42

11

SHIM, PAD B

59172-41G00

$15.42

12

CALIPER ASSY, FRONT LH

59300-41G40-999

$621.97

13

PISTON SET

59100-35870

$109.45

14

SEAL SET, PISTON This part replaces 59100-35820.

59100-29830

$42.60

15

PIN

59141-41G10

$26.99

16

BOLT

59145-18G00

$9.92

17

SPRING, PAD

59151-29G00

$12.48

18

BLEEDER

59121-18410

$8.73

19

CAP, BLEEDER PLUG

55156-66310

$5.17

20

PAD & SHIM SET

59100-29850

$47.16

21

SHIM, PAD A

59171-41G00

$15.42

22

SHIM, PAD B

59172-41G00

$15.42

23

BOLT (10X70)

09103-10392

$4.90

24

PIN, CALIPER

59151-41G00

$11.64
