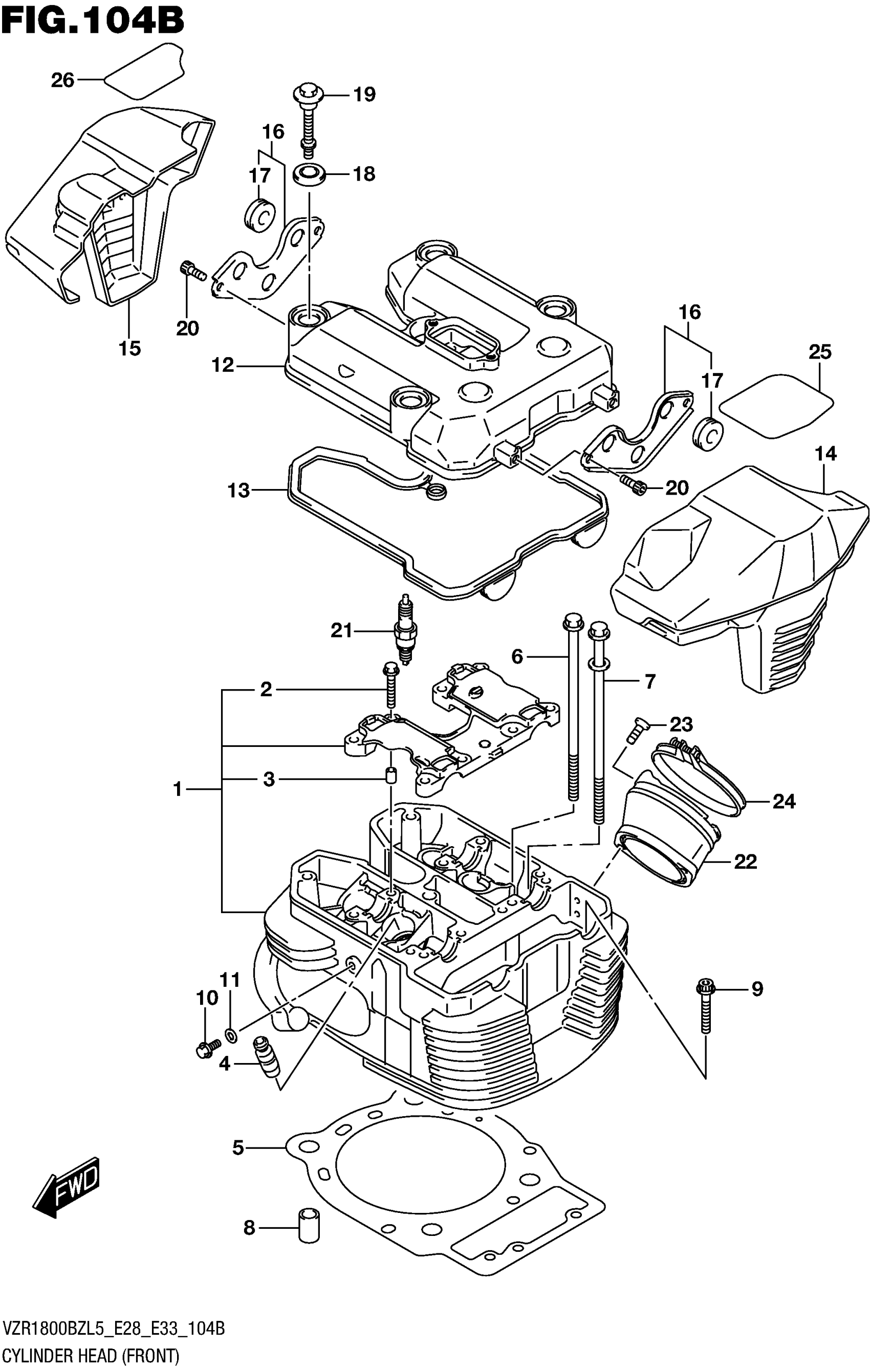

Suzuki VZR1800BZL5 (2015) CYLINDER HEAD (FRONT) (VZR1800BZL5 E33) Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER FRONT

11101-48G10

$1,919.23

2

BOLT (6X39)

09103-06026

$1.84

3

PIN (8X11)

09206-08001

$1.82

4

GUIDE, VALVE (OS 0.3) | OPT

11115-65J00-001

$36.07

5

GASKET, CYLINDER HEAD FRONT

11141-48G00

$61.37

6

BOLT (8X180)

09103-08415

$12.60

7

BOLT (10X19)

09103-10396

$28.57

8

PIN

04211-13189

$2.25

9

BOLT

07120-0670A

Unavailable

10

BOLT (6X12)

09103-06222

$2.35

11

GASKET (5.8X13X1.2)

09168-06023

$2.09

12

COVER, CYLINDER HEAD

11170-48G00

Unavailable

13

GASKET

11173-48G00

$34.90

14

CAP, CYL HEAD COVER NO.1

11174-48G20

$123.00

15

CAP, CYL HEAD COVER NO.2

11175-48G20

$123.00

16

BRACKET,HEAD COVER CAP This part replaces 11180-48G00.

11180-48G01

$10.97

17

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.98

18

CUSHION,HEAD COVER BOLT

11192-13E00

$4.15

19

BOLT (6X52)

09111-06091

$24.82

20

BOLT

07130-0612A

$2.58

21

SPARK PLUG (CR8EK) | NGK

09482-00412

$10.09

21

SPARK PLUG (U24ETR) | DENSO

09482-00413

$14.37

21

SPARK PLUG (CR9EK) | OPT,NGK

09482-00410

$11.01

21

SPARK PLUG (DENSO,U27ESR-N) | OPT,DENSO This part replaces 09482-00411.

09482-00459

$5.79

21

SPARK PLUG (CR7EK) | OPT,NGK

09482-00414

$13.63

21

SPARK PLUG (U22ETR) | OPT,DENSO

09482-00415

Unavailable

22

PIPE ASSY,INTAKE This part replaces 13101-48G00.

13101-48G01

$109.97

23

BOLT (6X20.5)

09120-06008

$2.97

24

CLAMP, INTAKE PIPE

13170-22H00

Unavailable

25

PROTECTOR, HEAD COVER CAP NO.1

11178-48G00

Unavailable

26

PROTECTOR, HEAD COVER CAP NO.2

11178-48G10

Unavailable
