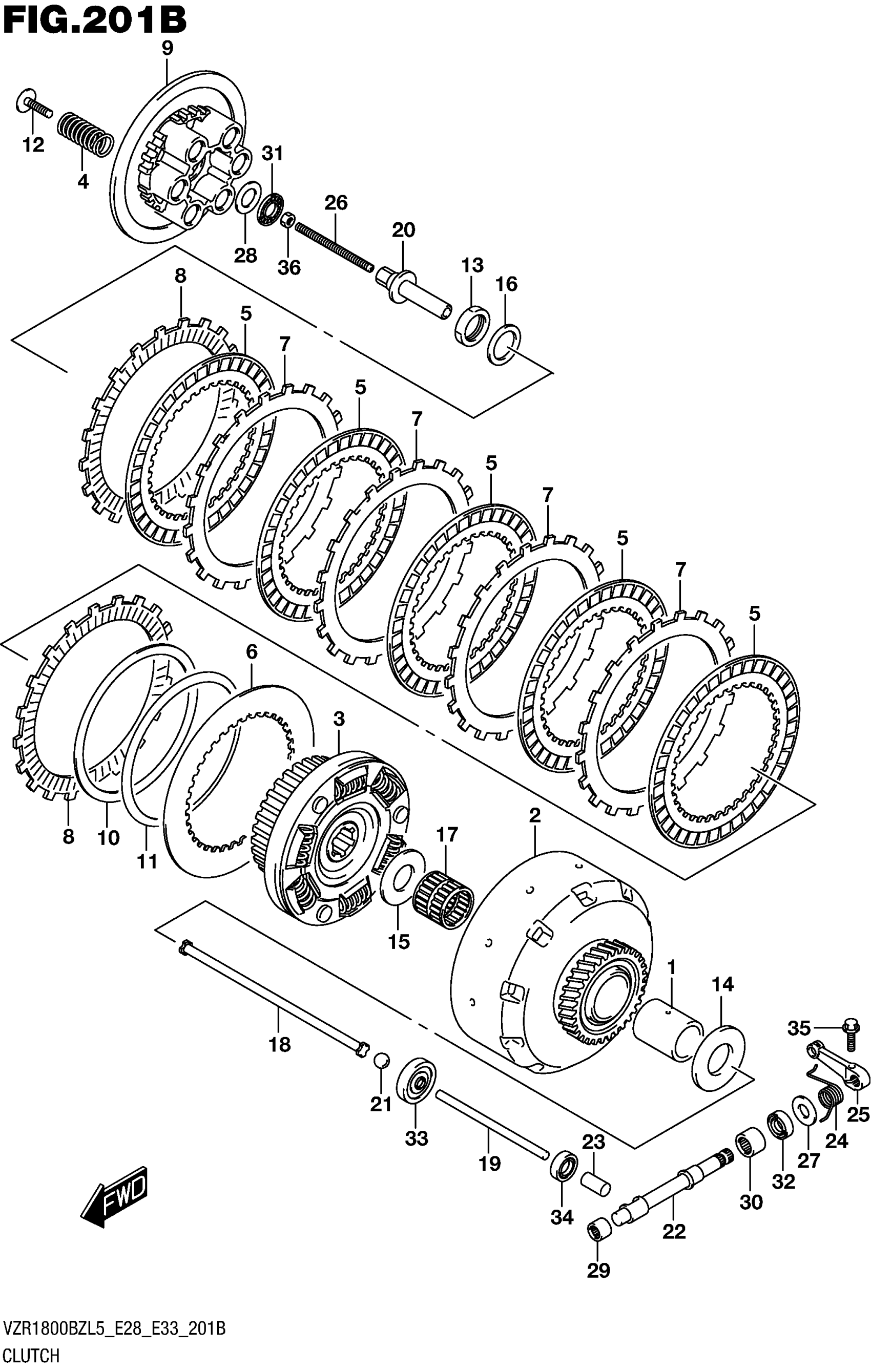

Suzuki VZR1800BZL5 (2015) CLUTCH (VZR1800BZL5 E33) Diagram

#

Description
Price

1

SPACER, PRIMARY DRIVE GEAR

21151-48G00

$51.63

2

GEAR ASSY, PRIMARY DRIVE (NT:33)

21100-48G01

$383.37

3

HUB, CLUTCH SLEEVE

21410-48G10

$485.47

4

SPRING, CLUTCH

21413-35F10

$6.80

5

PLATE, CLUTCH DRIVE NO.1 (T:3.0)

21441-22H00

$47.79

6

PLATE, CLUTCH DRIVE NO.2 (T:2.0)

21441-48G40

$18.06

7

PLATE, CLUTCH DRIVEN NO.1 (T:2.3)

21451-22H00

$20.09

8

PLATE, CLUTCH DRIVEN NO.2 (T:3.4)

21451-48G10

$35.20

9

DISC, CLUTCH PRESSURE

21462-48G00

$61.62

10

SEAT, WAVE WASHER

21471-48G00

$13.59

11

WASHER, CLUTCH PLATE

21472-48G10

$24.88

12

BOLT, CLUTCH SPRING

21482-41G00

$2.81

13

NUT

09159-24010

$12.27

14

.WASHER (25X50X2.5)

09160-25056

$10.94

15

.WASHER (25X50X2.5)

09160-25056

$10.94

16

WASHER

09164-24008

$5.00

17

BEARING (32X37X38.3)

09263-32020

$50.87

18

ROD, CLUTCH

23110-24F00

$21.87

19

ROD, CLUTCH PUSH LH

23111-48G00

$22.30

20

PIECE, CLUTCH PUSH

23121-41G00

$55.32

21

BALL, CLUTCH PUSH

23122-02FR0

$100.95

22

CAMSHAFT, CLUTCH RELEASE

23122-48G00

$66.67

23

CAP, CLUTCH PUSH ROD

23123-41G00

$10.46

24

SPRING, CLUTCH RELEASE RETURN

23125-48G00

$4.47

25

ARM, CLUTCH RELEASE

23271-48G00

$86.48

26

SCREW (6X73)

09134-06015

$6.44

27

WASHER (10.5X24X1)

09160-10020

$1.93

28

WASHER (15.5X28X1)

09160-15045

$3.62

29

BEARING (10X14X10) | LOWER

09263-10014

$12.57

30

BEARING (12X18X12) | UPPER

09263-12027

$6.79

31

BEARING (15X28X2)

09263-15003

$7.70

32

OIL SEAL (10X20X6)

09282-10012

$7.42

33

OIL SEAL (6X34X10.5)

09283-06010

$15.62

34

OIL SEAL (10X17X5)

09285-10004

$3.13

35

BOLT

01547-0620A

$2.10

36

NUT

08310-0006A

$1.89
