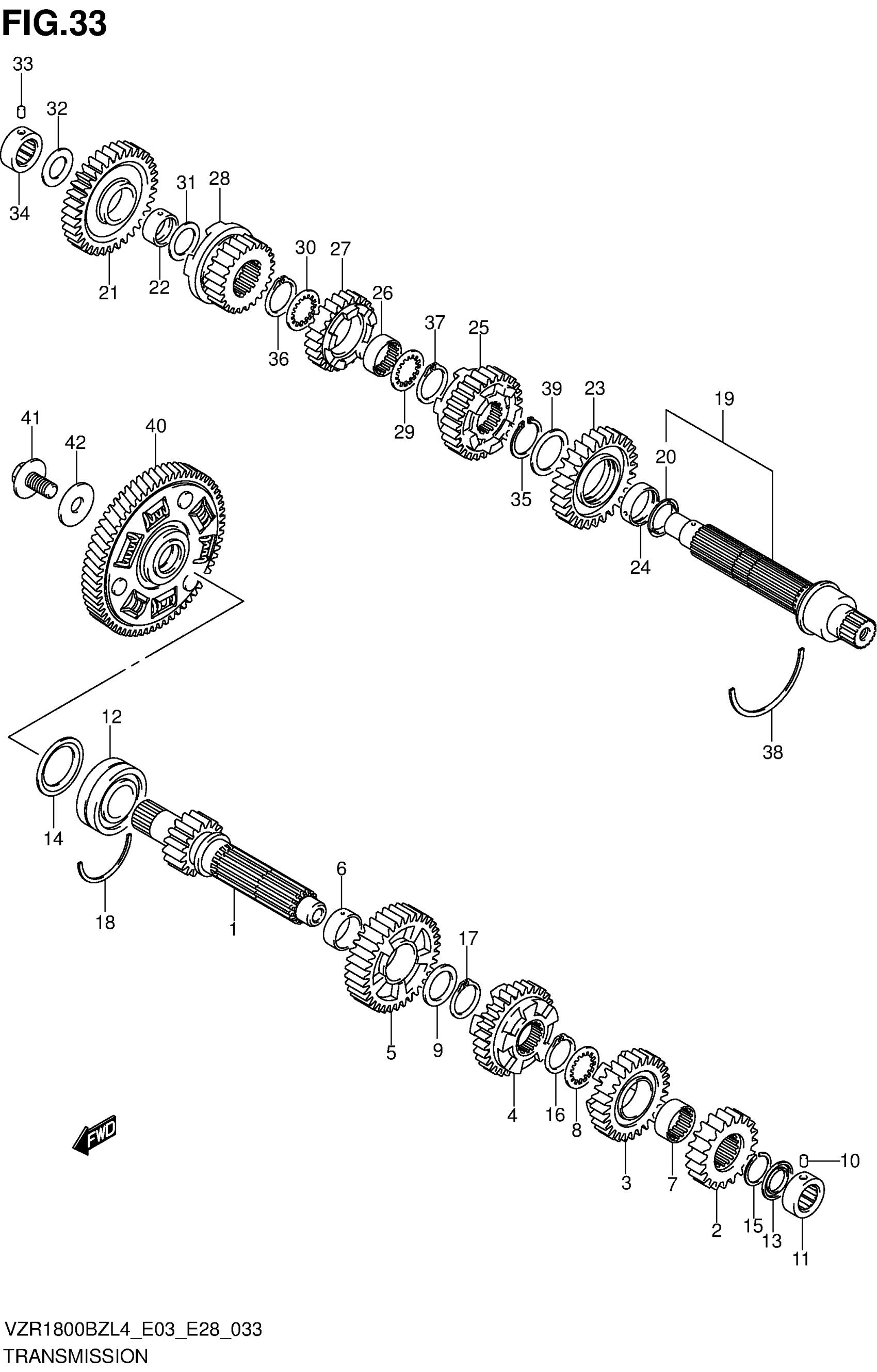

Suzuki VZR1800BZL4 (2014) TRANSMISSION (VZR1800BZL4 E03) Diagram

#

Description
Price

1

SHAFT, COUNTER | NT:18

24121-48G10

$325.12

2

GEAR, 2ND DRIVE | NT:20

24221-48G00

$153.55

3

GEAR, 3RD DRIVE | NT:28

24231-48G10

$185.15

4

GEAR, 4TH DRIVE | NT:29

24241-48G10

$223.32

5

GEAR, 5TH DRIVE | NT:35

24251-48G00

$212.68

6

BUSH, 5TH DRIVE GEAR

24252-24F10

$35.47

7

BUSH, 3RD DRIVE GEAR

24262-24F10

$35.47

8

LOCK WASHER

09167-27003

$6.80

9

SHIM (27X36X2.5)

09181-27014

$6.32

10

PIN (6X10) | LH

09261-06003

$1.49

11

BEARING (20X34X13.5) | LH

09263-20087

$42.65

12

BEARING (25X62X25.4) | RH

09267-25012

$156.13

13

OIL SEAL (20X31.2X2.7)

09285-20006

$6.51

14

OIL SEAL (34X55.5X4) | RH

09285-34011

$24.52

15

CIRCLIP

09380-27004

$3.70

16

CIRCLIP

09380-27006

$2.73

17

CIRCLIP

09380-27006

$2.73

18

C RING | RH

09390-62012

$7.31

19

SHAFT, DRIVE

24130-48G01

$298.63

20

RING, FRICTION

24136-48G01

$39.68

21

GEAR, 1ST DRIVEN | NT:35

24311-48G00

$208.75

22

BUSH, 1ST DRIVEN GEAR

24312-24F10

$35.47

23

GEAR, 2ND DRIVEN | NT:28

24321-48G10

$208.75

24

BUSH, 2ND DRIVEN GEAR

24322-48G00

$32.12

25

GEAR, 3RD DRIVEN | NT:27

24331-48G10

$223.88

26

BUSH, 4TH DRIVEN GEAR

24332-24F10

$34.15

27

GEAR, 4TH DRIVEN | NT:24

24341-48G00

$187.95

28

GEAR, 5TH DRIVEN | NT:24

24351-48G00

$205.32

29

LOCK WASHER

09167-30008

$6.12

30

LOCK WASHER

09167-30008

$6.12

31

SHIM (20X34X1) | RH

09181-20251

$2.79

32

SHIM (24X34X1) | LH

09181-24005

$3.55

33

PIN (6X10) | RH

09261-06003

$1.49

34

BEARING (20X34X13.5) | RH

09263-20087

$42.65

35

CIRCLIP

09380-30009

$3.49

36

CIRCLIP | RH

09380-30009

$3.49

37

CIRCLIP | LH

09380-30009

$3.49

38

C RING | LH

09390-80004

$11.52

39

WASHER

08211-30403

$4.10

40

GEAR ASSY, PRIMARY DRIVEN | NT:56

21200-22830

$621.97

41

BOLT (12X24)

09103-12084

$8.48

42

WASHER (12X35X2)

09160-12045

$4.11
