2014 Suzuki VZR1800BZL4 Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 2014 Suzuki VZR1800BZL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

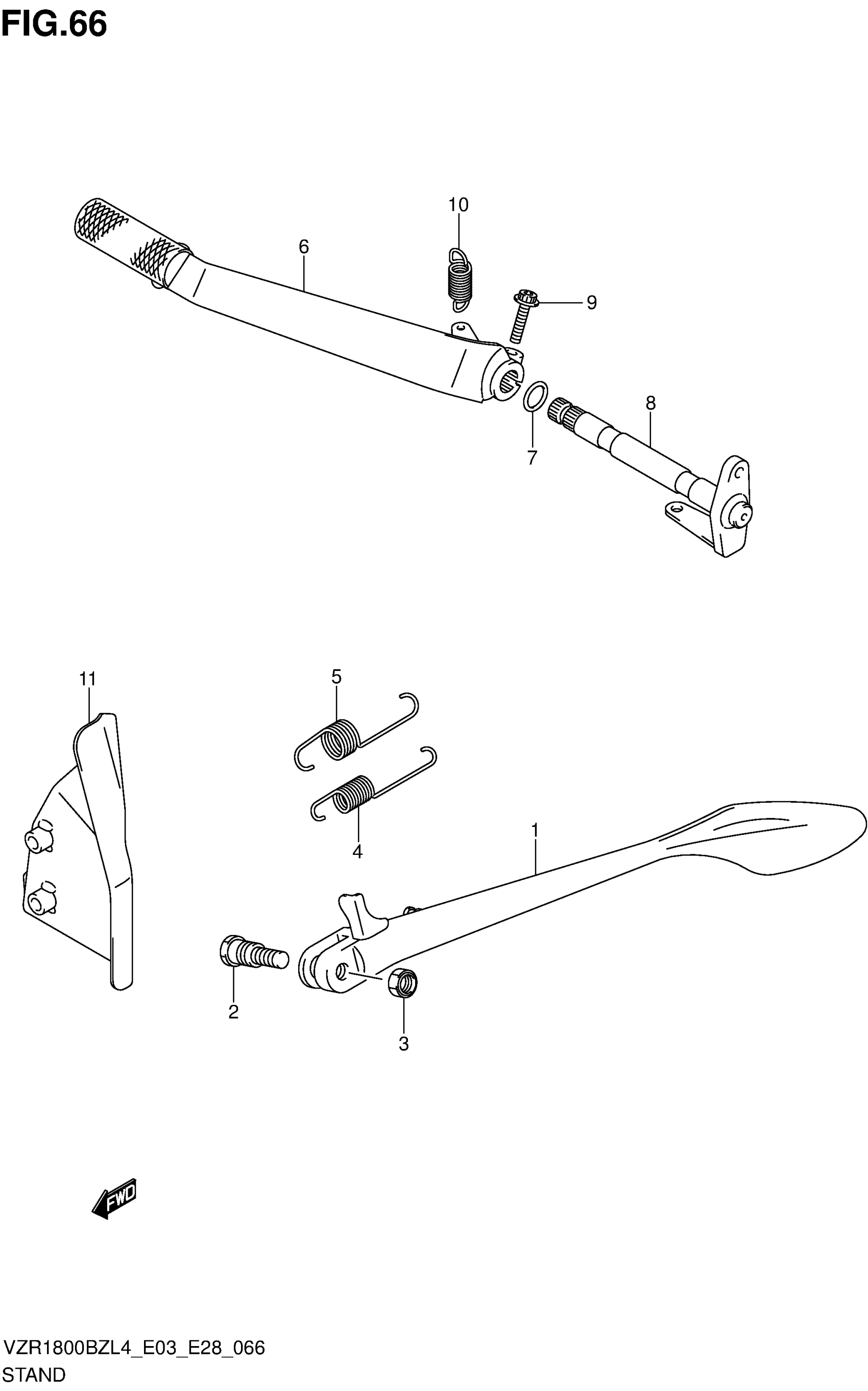

2014 Suzuki VZR1800BZL4 Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, PROP

42310-48G20

1
Out of stock

2

BOLT (10X37.5)

09111-10058

1
Out of stock

3

NUT, PROP STAND

42321-03FK0

1
Out of stock

4

SPRING | INNER

09443-14069

1
Out of stock

5

SPRING | OUTER

09443-19012

1
Out of stock

6

PEDAL, BRAKE This part replaces 43110-48G11.

43110-48G12

1
Out of stock

7

O RING (D:2.5,ID:13.8)

09280-14011

2
Out of stock

8

ARM, BRAKE ROD

43120-48G10

1
Out of stock

9

BOLT

07120-0625A

1
Out of stock

10

SPRING

09443-11030

1
Out of stock

11

GUARD, REAR MASTER

43570-48G00

1
Out of stock
