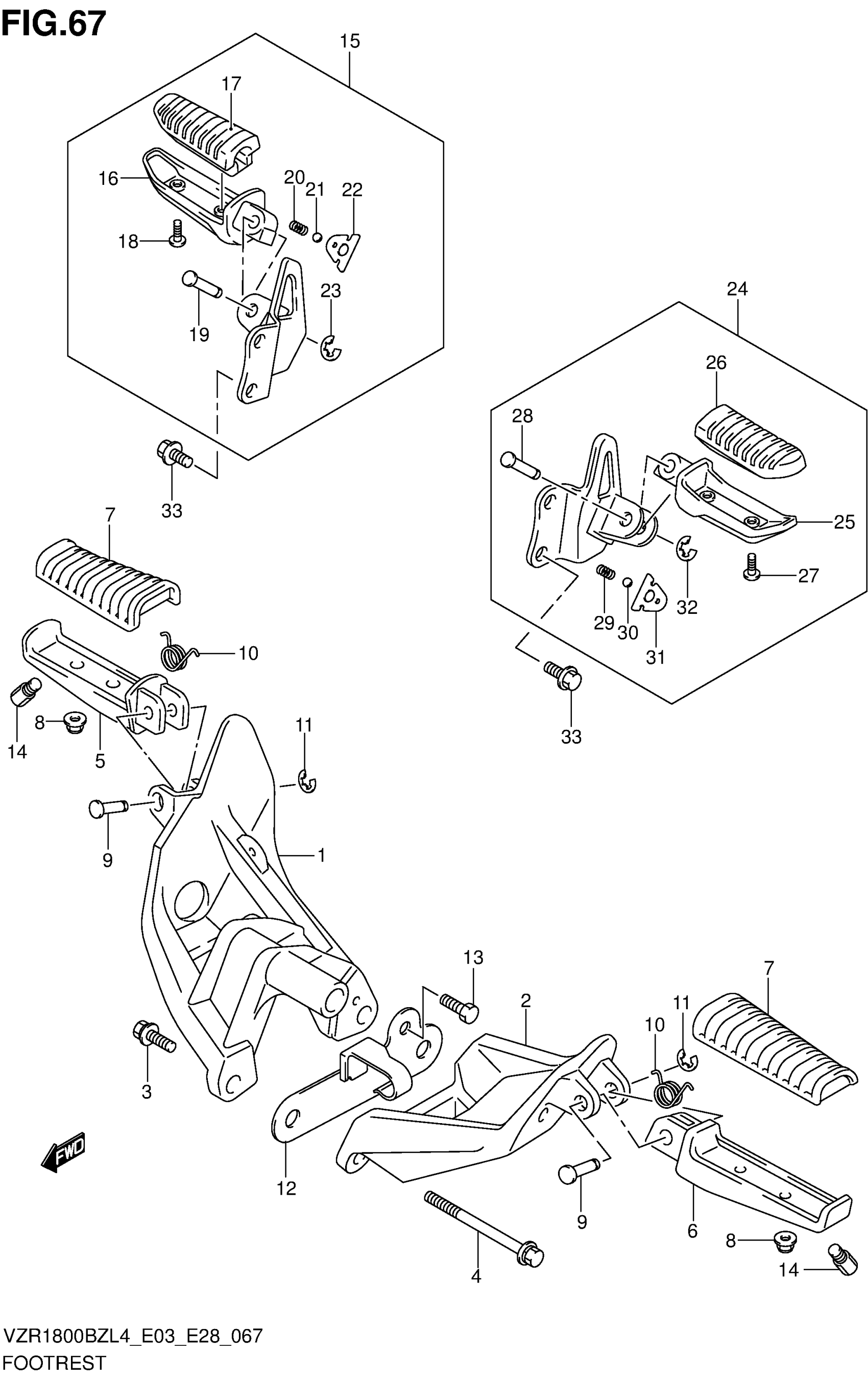

Suzuki VZR1800BZL4 (2014) FOOTREST Diagram

#

Description
Price

1

BRACKET, FRONT FOOTREST RH

43511-48G10

$270.67

2

BRACKET, FRONT FOOTREST LH

43521-48G01

$477.90

3

BOLT (10X28)

09103-10268

$5.98

4

BOLT (10X85) | LH

09103-10337

$7.10

5

BAR, FRONT FOOTREST RH This part replaces 43531-48G00.

43531-48G01

$53.23

6

BAR, FRONT FOOTREST LH This part replaces 43541-48G00.

43541-48G01

$51.92

7

RUBBER

43550-48G00

$27.50

8

NUT

08319-2106A

$1.89

9

PIN

09208-08019

$2.77

10

SPRING

09448-14047

$3.84

11

E RING

08332-1106A

$1.43

12

PLATE, FOOTREST BRACKET

43560-48G00

$35.78

13

BOLT

01500-0612A

$1.80

14

.BOLT,BANK SENSOR

43576-07D01

$8.10

15

FOOTREST, PILLION RH

43600-48G00

$197.60

16

BAR, RH

43611-44G00

$61.88

17

RUBBER

43550-44G00

$40.13

18

SCREW

02142-05127

$1.97

19

PIN

09208-08017

$3.67

20

SPRING

09440-05005

$1.45

21

BALL

06111-07004

$1.22

22

PLATE, PILLION

43816-44G00

$4.71

23

E RING

08332-1106A

$1.43

24

FOOTREST, PILLION LH

43700-48G00

$197.60

25

BAR, LH

43621-44G00

$61.88

26

RUBBER

43550-44G00

$40.13

27

SCREW

02142-05127

$1.97

28

PIN

09208-08017

$3.67

29

SPRING

09440-05005

$1.45

30

BALL

06111-07004

$1.22

31

PLATE, PILLION

43816-44G00

$4.71

32

E RING

08332-1106A

$1.43

33

BOLT (8X16)

09103-08412

$3.30
