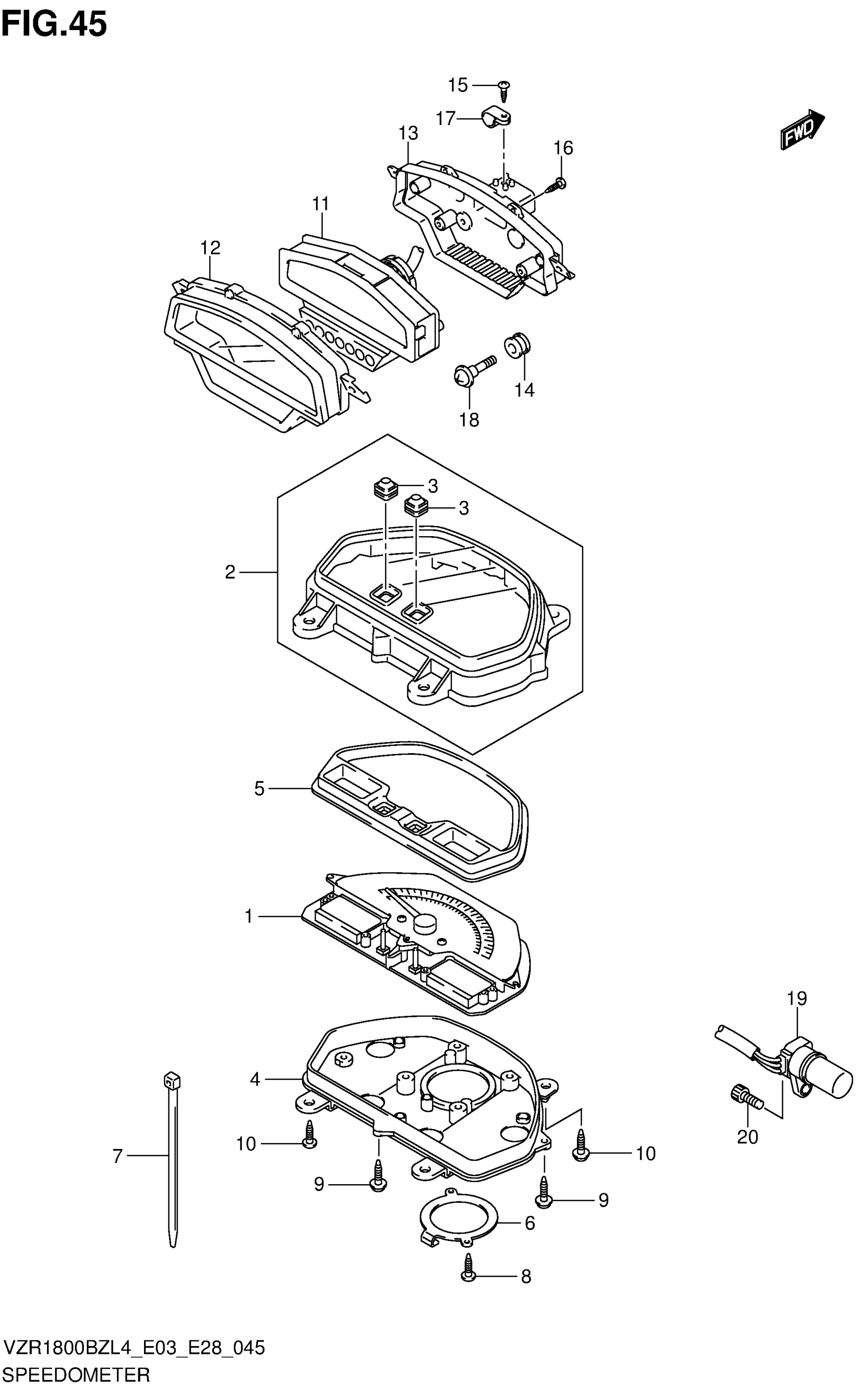

Suzuki VZR1800BZL4 (2014) SPEEDOMETER (VZR1800BZL4 E03) Diagram

#

Description
Price

1

SPEEDOMETER

34120-48GD0

Unavailable

2

UPPER CASE ASSY

34150-48G00

$123.73

3

RUBBER, SWITCH

34124-32F00

$5.75

4

LOWER CASE ASSY

34111-48G40

$84.72

5

REFLECTOR ASSY

34125-48G00

$71.50

6

BRACKET

34950-48G00

Unavailable

7

CLAMP

34192-48G00

Unavailable

8

.SCREW (3X12)

34183-09F00

$2.56

9

SCREW (3X14)

34149-03G00

$3.71

10

SCREW

03541-0516A

$1.49

11

TACHOMETER ASSY

34220-48G30

$912.22

12

CASE ASSY, UPPER

34250-48G30

$120.88

13

CASE ASSY, LOWER

34211-48G30

$86.03

14

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

$2.92

15

SCREW (4X14)

34149-17E10

$6.23

16

SCREW (3X16)

09132-03008

$1.53

17

CLAMP

36385-24A30

Unavailable

18

SCREW

03541-0516A

$1.49

19

SENSOR,SPEED This part replaces 34990-48G00.

34990-48G01

$159.05

20

BOLT This part replaces 07130-0616A.

07130-0616B

$2.39
