Description

Price

1

WHEEL SET, REAR (18M/CXMT8.5) (BLACK)

64100-48820-019

$1,792.15

2

BUSH

09319-12019

$12.42

3

SPACER, REAR WHEEL BEARING

64731-48G00

$81.65

4

BEARING (25X52X15) | RH

09262-25072

$41.35

5

BEARING (25X52X15) | LH

08143-62057

$22.79

6

.SEAL,OIL (32X52X7) | RH

09285-32004

$7.42

7

DISC, REAR BRAKE

69210-10F60

$322.53

8

BOLT (8X21)

09106-08160

$3.32

9

BRACKET, REAR CALIPER

69721-48G10

Unavailable

10

BOLT (12X40)

09103-12109

$5.75

11

AXLE, REAR

64711-48G00

$242.02

12

SPACER, REAR AXLE RH

64741-48G00

$29.88

13

SPACER, REAR AXLE LH

64772-48G00

$45.40

14

NUT

09159-22007

$17.84

15

WASHER (22X35X2)

09160-22081

$2.82

16

JOINT ASSY, REAR HUB

64680-48G00

$425.25

17

O RING (D:2.4,ID:79.8)

09280-80001

$3.64

18

BOLT

09119-06049

$1.63

19

WASHER, REAR HUB DRIVEN

64679-48G00

$7.10

20

WASHER, THRUST

64677-48G10

$8.37

21

TIRE, REAR (240/40R18M/C 79V) (DUNLOP)

65110-48G01

$1,030.53

22

VALVE ASSY, WHEEL RIM

43130-24A00

$8.46

23

BALANCER, WHEEL NO.1 (10G)

55411-22H00

$9.70

23

BALANCER, WHEEL NO.2 (20G)

55412-22H00

$11.37

23

BALANCER, WHEEL NO.3 (30G)

55413-22H00

$12.93

24

TAPE, WHEEL (YELLOW/BLACK)

68251-48G00-ETB

$75.08

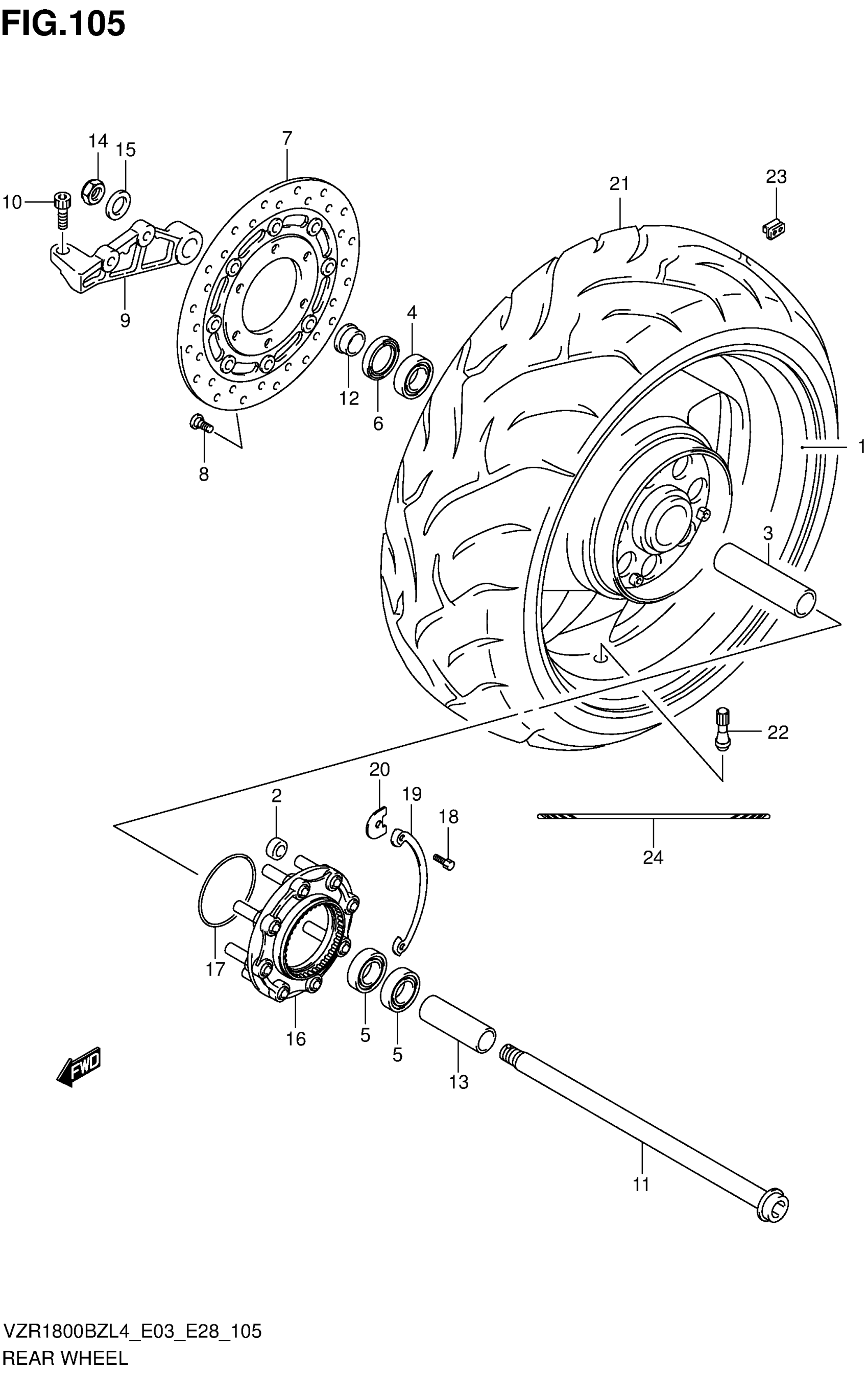

Suzuki VZR1800BZL4 (2014) REAR WHEEL Diagram
