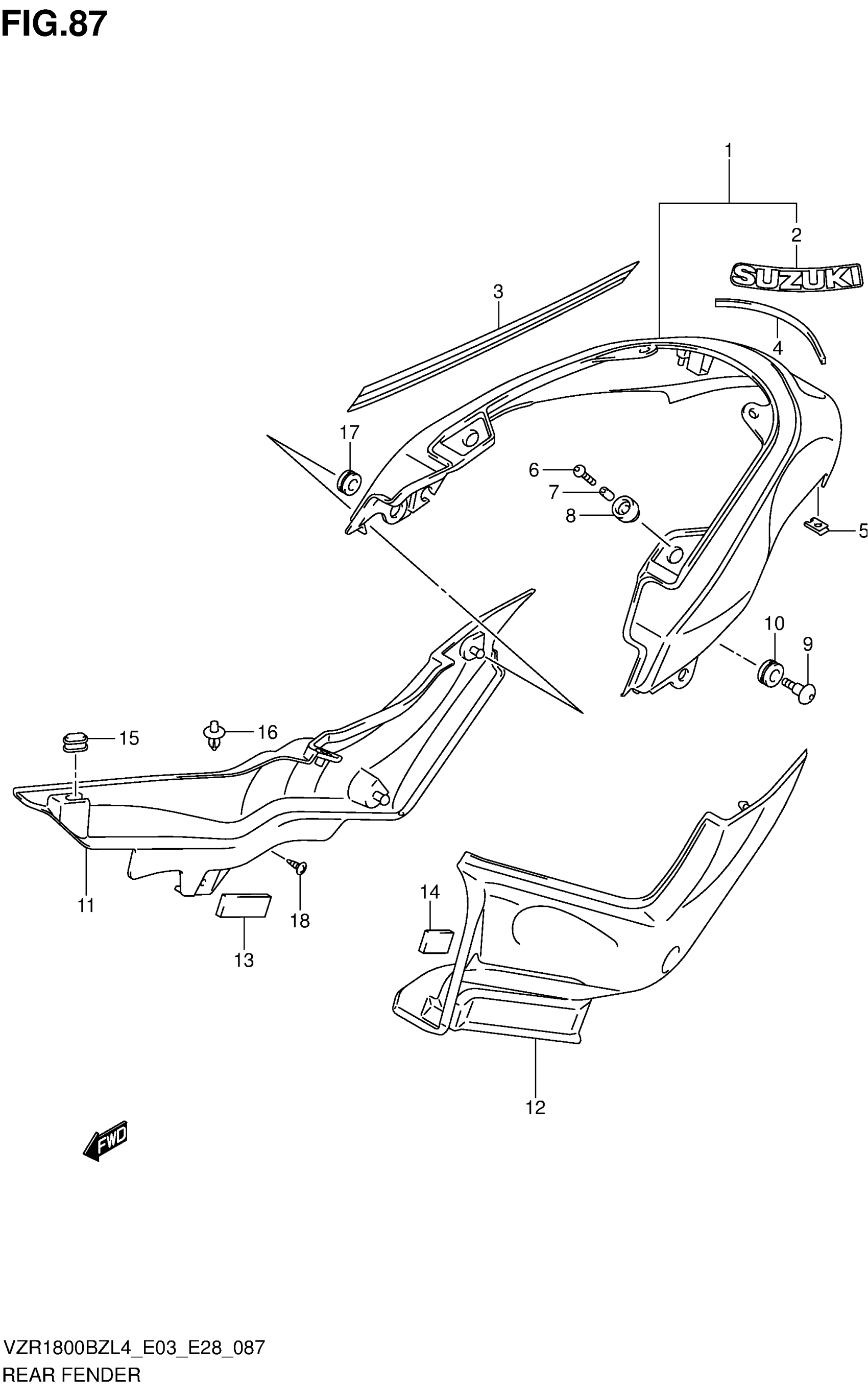

Suzuki VZR1800BZL4 (2014) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR (YELLOW/BLACK)

63110-48G70-KGK

Unavailable

2

EMBLEM (YELLOW/BLACK)

68161-44GA0-KGK

Unavailable

3

TAPE SET, REAR FENDER

68170-48GB0-ANW

Unavailable

4

CUSHION

63117-39G00

$4.65

5

NUT COWL

94484-24F00

$4.03

6

SCREW (6X16)

09139-06139

$3.23

7

SPACER (6.5X10X9.4)

09180-06286

$2.50

8

CUSHION

09320-10045

$3.76

9

BOLT (6X20)

09139-06190

$4.17

10

CUSHION

09320-09016

$1.97

11

COVER, REAR FENDER RH (BLACK)

63171-48G51-YVB

$213.09

12

COVER, REAR FENDER LH (BLACK)

63181-48G51-YVB

$250.68

13

CUSHION, RH

15439-70G10

$4.33

14

CUSHION, LH

47161-19C00

$3.03

15

CUSHION,FUEL TANK COVER This part replaces 44276-29G00.

44276-29G01

$3.56

16

CLIP (BLACK)

09409-06314-5PK

$2.78

17

CUSHION

09320-08028

$3.04

18

SCREW

03541-0516A

$1.49
