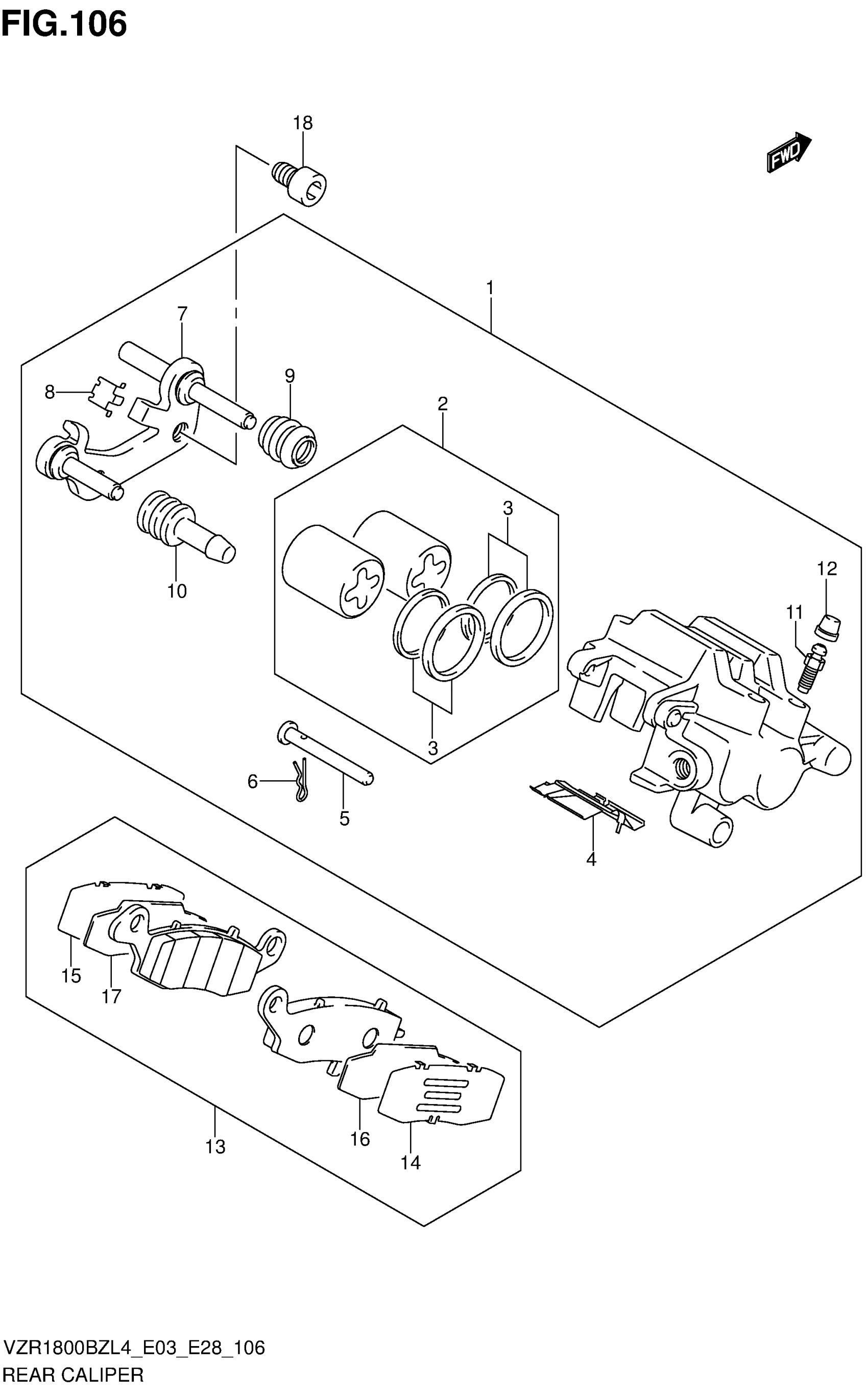

Suzuki VZR1800BZL4 (2014) REAR CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, REAR

69100-01D40-999

$395.90

2

PISTON SET

69100-01840

$124.75

3

SEAL SET, PISTON

59300-33841

$15.45

4

SPRING, PAD

69115-01D40

$18.35

5

PIN, PAD

69141-01D40

$12.48

6

.CLIP, PAD PIN

69142-45000

$4.34

7

CARRIER, CALIPER

69150-01D40

Unavailable

8

.GUIDE, PAD

59116-33D00

$7.97

9

BOOT, AXLE

59112-44B00

$8.91

10

INSULATOR, AXLE

59113-01D00

$10.17

11

BLEEDER

59121-03B00

$20.52

12

CAP, BLEEDER PLUG

55156-66310

$5.17

13

PAD & SHIM SET

69100-01870

$55.06

14

.SHIM, PAD

59171-33D00

$14.85

15

.SHIM, PAD NO.2

59172-33D00

$16.78

16

INSULATOR NO.1

69171-01D40

Unavailable

17

INSULATOR NO.2

69172-01D40

$25.92

18

BOLT,10X20 (10X20)

09106-10093

Unavailable
