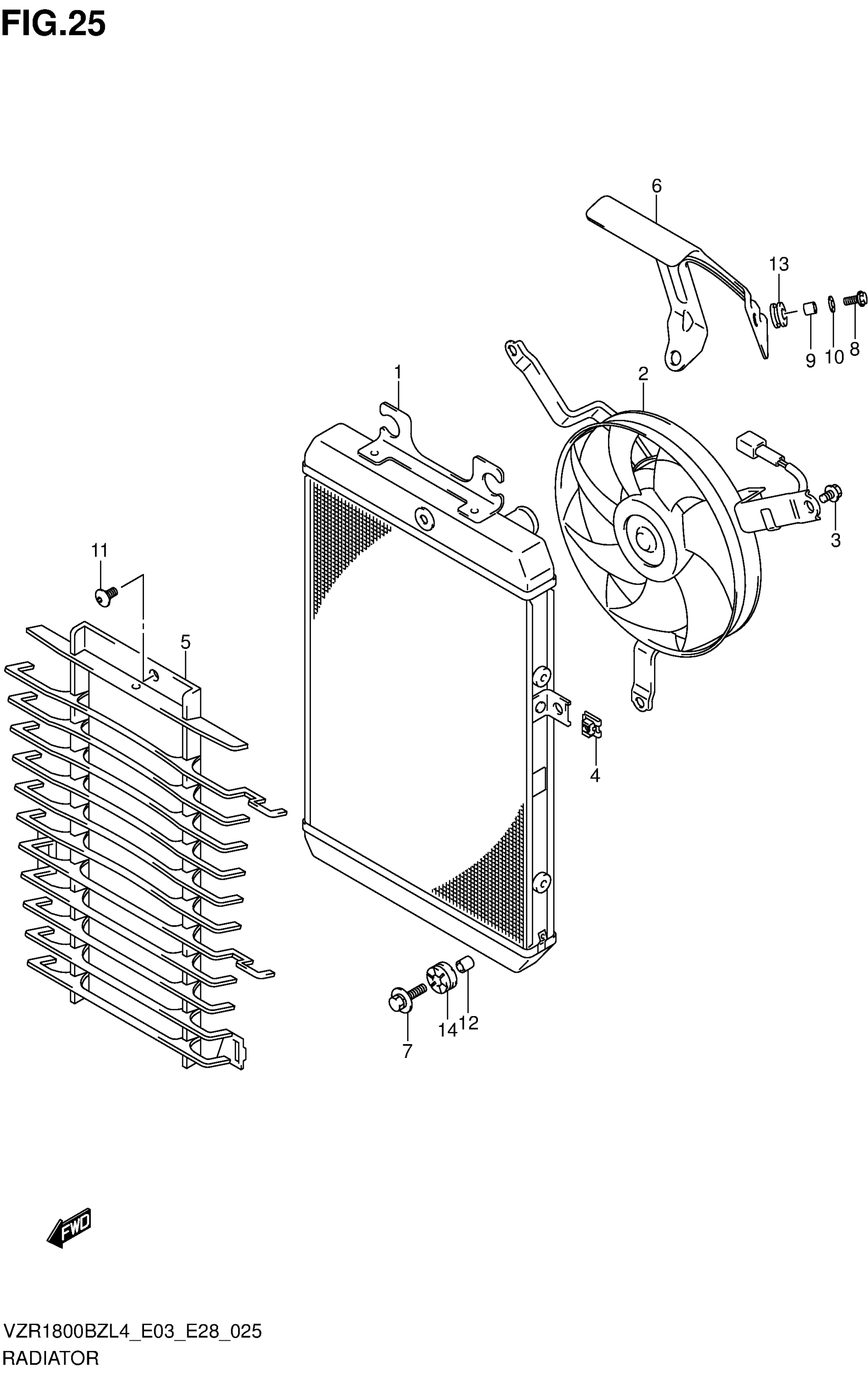

Suzuki VZR1800BZL4 (2014) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY, WATER

17710-48G00

$1,267.58

2

FAN ASSY, RADIATOR

17800-48G00

$674.78

3

BOLT

17711-40F00

$6.30

4

NUT, FAN ASSY

17712-40F00

$4.42

5

GUARD, RADIATOR

17761-48G00

$69.50

6

SHIELD, HEAT

17771-48G10

Unavailable

7

BOLT (6X25)

09118-06097

$2.50

8

BOLT

01547-0616B

$2.43

9

SPACER (6.2X8.3X5.7)

09180-06001

$2.50

10

WASHER (6.5X20X1.2)

09160-06152

$2.57

11

SCREW (6X12)

09139-06144

$2.50

12

SPACER (6.5X10X12)

09180-06290

$2.01

13

CUSHION (8.4X18X6)

09320-08066

$7.44

14

CUSHION

09320-10051

$2.81
