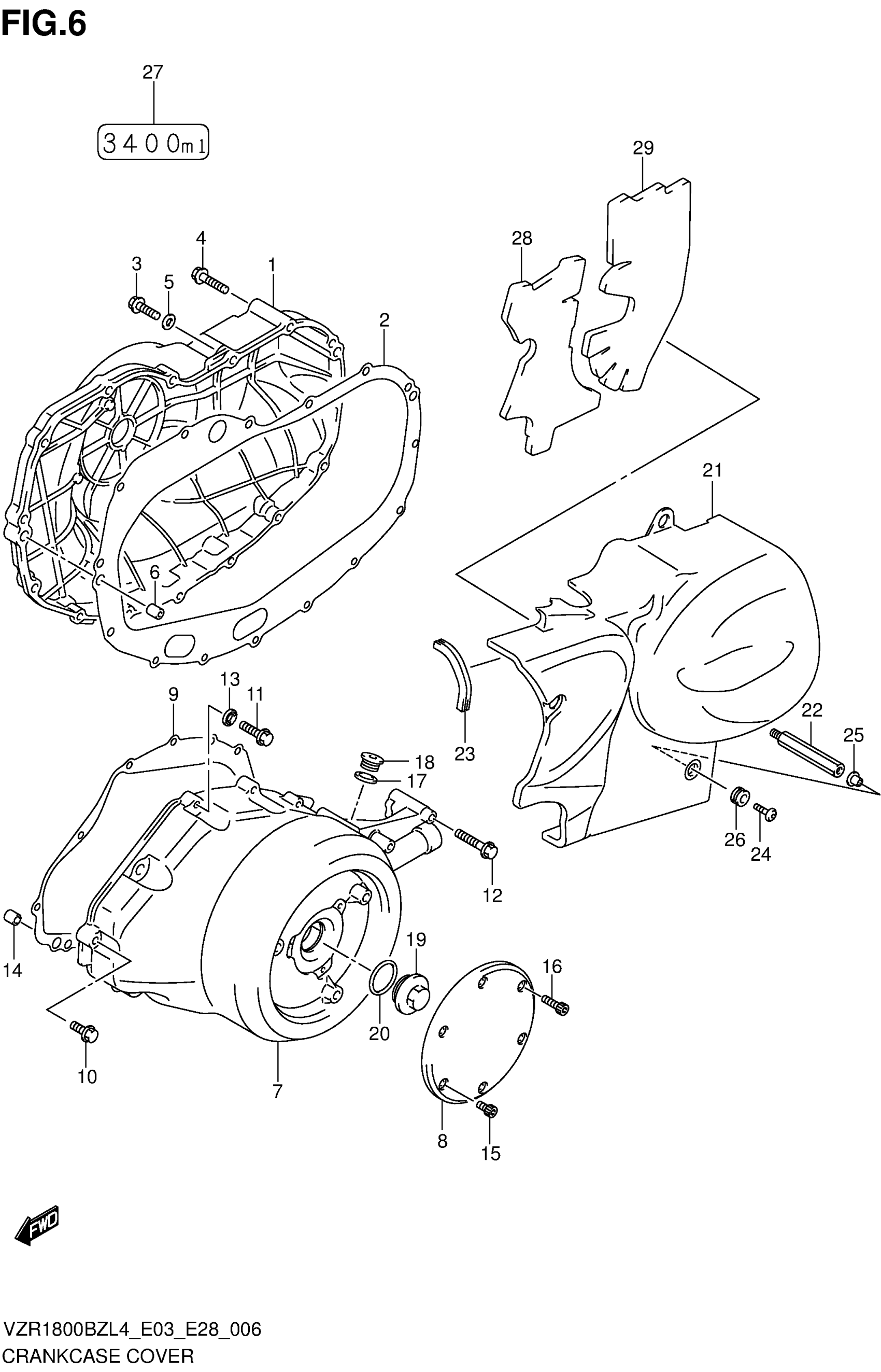

Suzuki VZR1800BZL4 (2014) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11341-48G10

$1,271.92

2

GASKET

11482-48G00

$22.58

3

BOLT (6X30)

09103-06213

$2.53

4

BOLT (6X60)

09103-06261

$2.90

5

GASKET (5.8X13X1.2)

09168-06023

$2.01

6

PIN

04211-09189

$1.64

7

COVER, MAGNETO

11351-48G10

$1,276.78

8

CAP

11352-48G00

$217.12

9

GASKET

11483-48G00

$17.42

10

BOLT (6X30)

09103-06213

$2.53

11

BOLT (6X50)

09103-06238

$2.65

12

BOLT (6X70)

09103-06225

$2.90

13

GASKET (5.8X13X1.2)

09168-06023

$2.01

14

PIN

04211-09149

$1.64

15

BOLT (6X10) This part replaces 09106-06068.

09106-06076

$3.01

16

BOLT (6X20)

09106-06123

$2.62

17

GASKET (16X22X2)

09168-16002

$1.89

18

PLUG

09248-16012

$4.19

19

CAP

09259-30005

$10.57

20

O RING (D:3.1,ID:26.4)

09280-26006

$2.77

21

COVER, SECONDARY DRIVE

11361-48G30

$754.38

22

BOLT

11372-48G00

$17.78

23

SCREW (6X20)

09139-06028

$3.33

24

WASHER

09169-06062

$2.50

25

CUSHION

09320-09501

$2.06

26

NOTE, ENGINE OIL

68322-48G00

Unavailable

27

DAMPER,MAGNETO COVER CAP This part replaces 11353-48G00.

11353-48G01

$27.03

28

DAMPER, SEC DRIVE COVER

11363-48G20

$22.72

29

DAMPER, SEC DRIVE COVER

11364-48G00

$39.53
