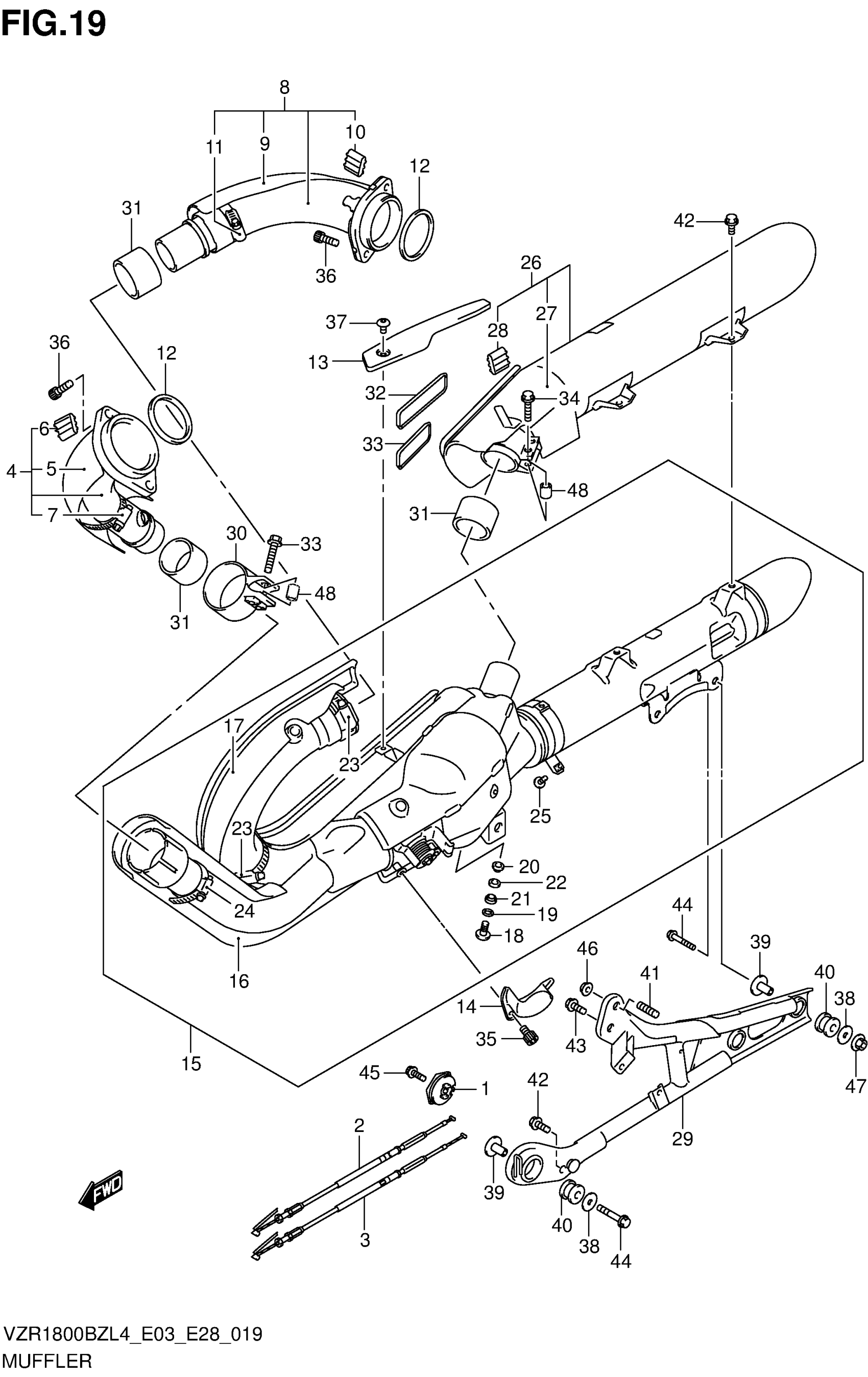

Suzuki VZR1800BZL4 (2014) MUFFLER (VZR1800BZL4 E03) Diagram

#

Description
Price

1

PULLEY, CONTROLLER

11269-18G01

$28.78

2

CABLE, EXHAUST VALVE NO.1

11276-48G00

$55.23

3

CABLE, EXHAUST VALVE NO.2

11277-48G00

$55.23

4

PIPE, EXHAUST FR

14150-48G50

Unavailable

5

COVER, EXH FR PIPE

14168-48G20

$122.58

6

GROMMET

14795-10FA0

$5.58

7

CLAMP

09402-57511

$13.30

8

PIPE, EXHAUST RR

14160-48G30

$367.37

9

COVER, EXH RR PIPE

14169-48G20

$115.65

10

GROMMET

14795-10FA0

$5.58

11

CLAMP

09402-67501

$38.88

12

GASKET

14181-10F00

$12.91

13

COVER, REAR UPPER

14260-48G10

$156.58

14

COVER, EXHAUST VALVE

14280-48G00

$24.95

15

MUFFLER, FR

14305-48G70-H01

$2,745.43

16

COVER, EXH FR

14170-48G50

$304.40

17

COVER, EXH RR

14180-48G70

$421.25

18

SCREW (6X20)

09139-06028

$3.70

19

WASHER (6.5X20X1)

09160-06141

Unavailable

20

SPACER (6.2X8.4X10.9)

09180-06331

$4.77

21

CUSHION

09320-08080

$9.45

22

CUSHION

09320-08081

$8.55

23

CLAMP

09402-67501

$38.88

24

CLAMP

09402-57511

$13.30

25

.BOLT

07120-0610A

$2.30

26

BODY, MUFFLER RR

14340-48G50-H01

$1,134.90

27

COVER, UP MUFFLER FR

14344-48G20

$305.05

28

GROMMET

14795-10FA0

$5.58

29

BRACKET,MUF SPRT

14410-48G00

$245.72

30

CLAMP

14459-48G00

Unavailable

31

CONNECTOR

14771-42F31

$27.33

32

PROTECTOR, FR

14780-48G10

$42.00

33

PROTECTOR, RR

14790-48G20

$39.43

34

BOLT (8X35)

09103-08365

$3.91

35

BOLT (6X12)

09106-06075

$2.48

36

BOLT (8X25)

09106-08165

$4.03

37

SCREW (6X10)

09139-06122

$3.04

38

WASHER (8.5X33X1.5)

09160-08146

$2.60

39

SPACER (8.6X12X27.1)

09180-08156

$6.70

40

CUSHION

09320-12049

$10.68

41

BOLT,STUD

01411-0820A

Unavailable

42

BOLT

14425-48G00

$3.35

43

BOLT

14425-48G00

$3.35

44

BOLT

01550-0845A

$3.14

45

BOLT

07120-0516A

$2.28

46

NUT

08319-3108A

$2.32

47

NUT

08361-2508A

$1.97

48

SPACER

14458-06H00

$7.05
