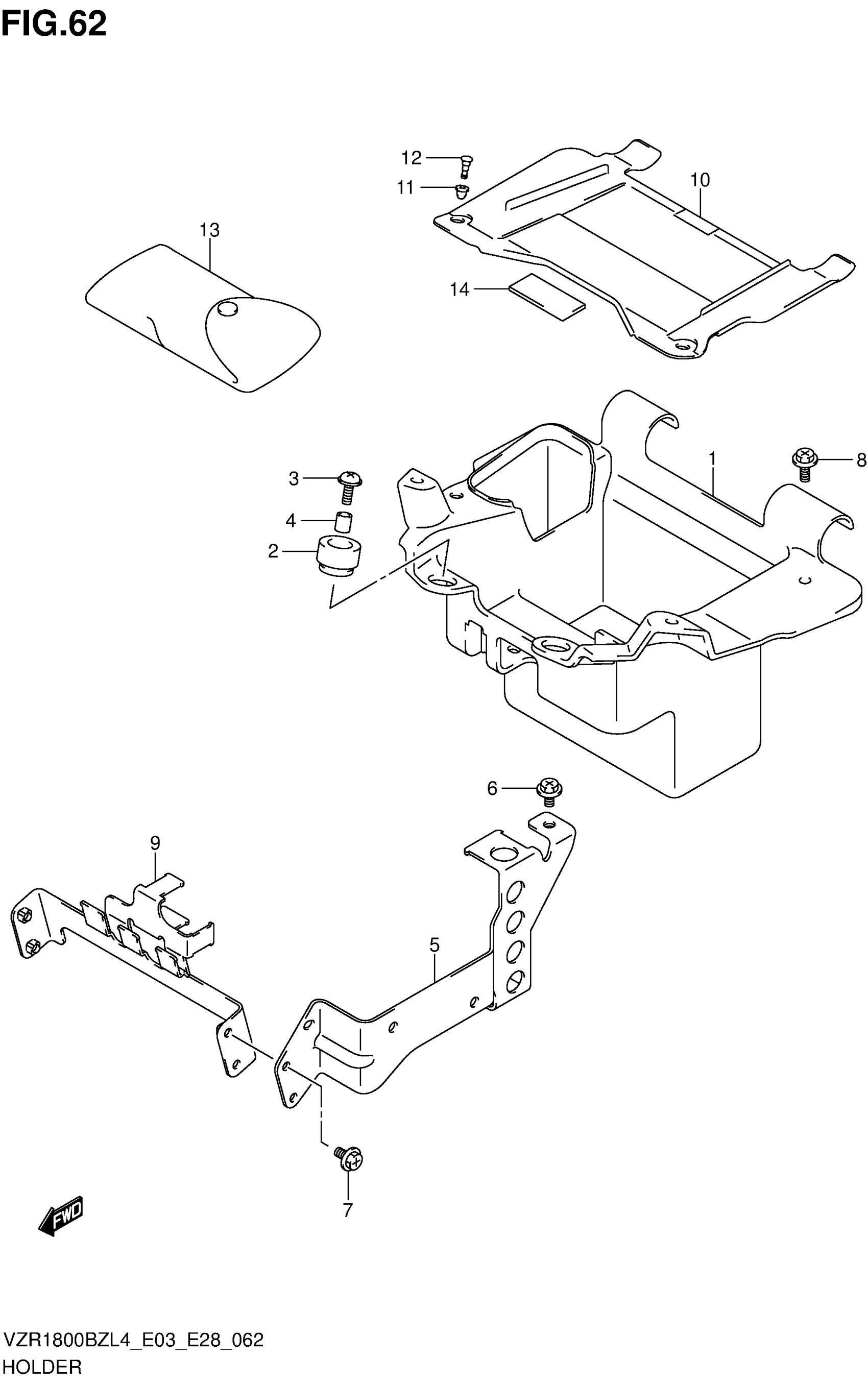

Suzuki VZR1800BZL4 (2014) HOLDER Diagram

#

Description
Price

1

HOLDER, BATTERY

41541-48G00

$62.07

2

CUSHION,FRAME COVER UP This part replaces 47115-16G00.

47115-16G01

$3.37

3

SCREW (6X20)

09136-06105

$1.97

4

SPACER (6.5X10X11.5)

09180-06289

$2.56

5

HOLDER, ELECTRIC PARTS

41550-48G00

Unavailable

6

BOLT | RH

02162-0608A

Unavailable

7

BOLT | LH

02162-0610A

Unavailable

8

SCREW | REAR This part replaces 02162-0616A.

02162-0616B

$2.03

9

BRACKET, RELAY

41560-48G00

Unavailable

10

LID, BATTERY HOLDER

47432-48G00

$28.27

11

GROMMET

09409-08329

$2.40

12

PLUNGER

09409-08330

$2.38

13

TOOL ASSY This part replaces 09800-21055.

09800-21102

$20.21

14

CUSHION, LID

63115-35G10

$6.42
