Description

Price

1

COVER, HEADLAMP (YELLOW)

51811-48GC0-YMF

$521.49

2

COVER, CENTER (BLACK/YELLOW)

51820-48GE0-KGK

$743.56

3

TAPE,HEADLAMP HOUSING LOWER,R

68721-48GB0-ANW

$45.02

4

TAPE,HEADLAMP HOUSING LOWER,L

68731-48GB0-ANW

$52.95

5

SCREW

03541-0510A

$1.49

6

NUT (M5)

09148-05045

$2.36

7

SCREW (6X22)

09139-06191

$4.03

8

.CUSHION (9X18X14) This part replaces 09320-09039.

09320-09059

$3.26

9

BRACE, HOUSING

51860-48GB0

$259.07

10

BRACE, COVER This part replaces 51850-48GB0.

51850-48GB1

$234.75

11

BOLT

01550-0612A

$1.97

12

BOLT (8X16)

01550-0816A

$2.32

13

CUSHION, BRACE

51831-21D00

$4.58

14

COVER, UPPER This part replaces 51831-48GB0.

51831-48GB1

$21.85

15

CLIP (BLACK)

09409-06314-5PK

$2.78

16

COVER, BRACKET

51841-48GB0

$24.37

17

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.10

18

CUSHION, COVER UPPER

51832-48GB0

$5.78

19

.CUSHION,HEADLAMP COVER

51833-48GB0

Unavailable

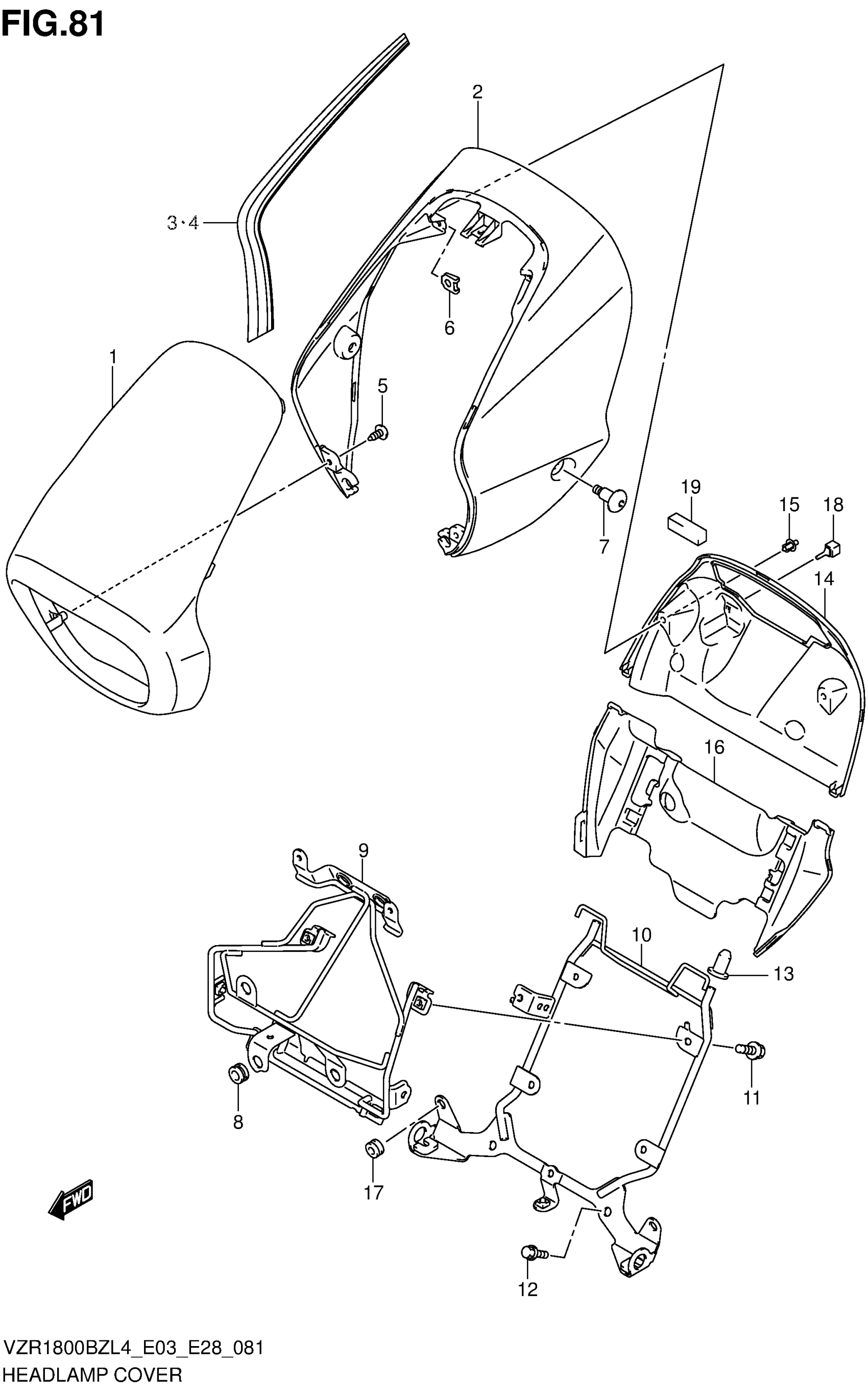

Suzuki VZR1800BZL4 (2014) HEADLAMP COVER Diagram
