Description

Price

1

TANK ASSY, FUEL (YELLOW/BLACK)

44100-48GQ0-KGK

Unavailable

2

TAPE SET, FUEL TANK

68110-48GB0-ANW

Unavailable

3

SHIELD, TANK HEAT

44191-48G10

$374.17

4

TAPE

44192-48G00

$17.15

5

CAP SET,FUEL TANK This part replaces 44200-39870.

44200-39871

$263.97

6

EMBLEM, RH

68111-48G01

$79.03

7

EMBLEM, LH

68121-48G01

$80.57

8

GAUGE ASSY,FUEL This part replaces 34810-48G00.

34810-48G01

$79.30

9

CUSHION | FRONT This part replaces 09329-10007.

09329-10026

$1.91

10

CUSHION, FUEL TANK

44541-13E10

$30.18

11

CLAMP (L:300)

09407-30402

$3.76

12

CLAMP(L:80) | SHIELD This part replaces 09404-06434.

09404-06036

$1.76

13

BRACKET, REAR

44530-48G10

$53.13

14

BOLT (6X20)

09116-06192

$2.44

15

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.07

16

WASHER

09169-06062

$2.50

17

BOLT (8X16) | REAR

01550-0816A

$2.31

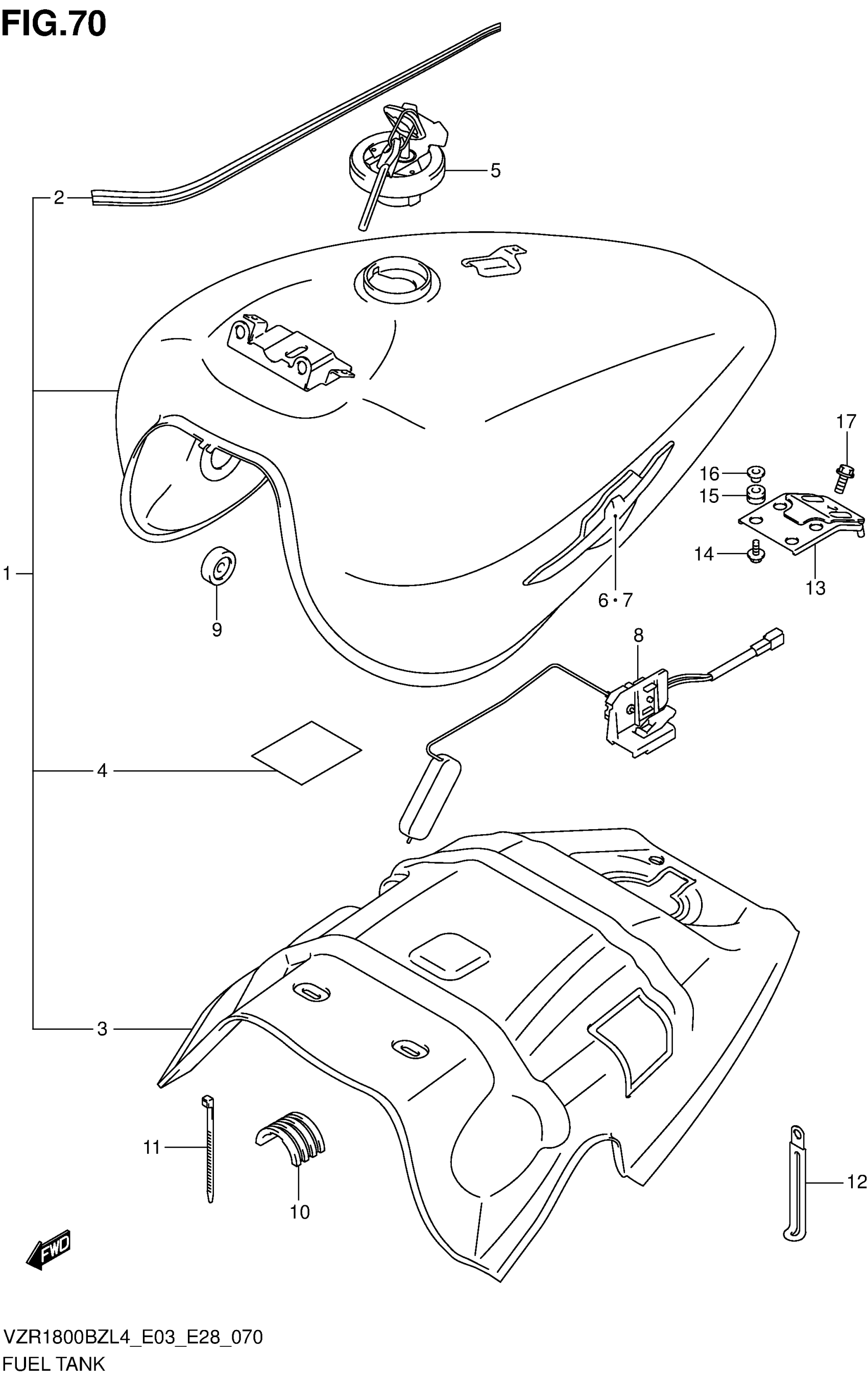

Suzuki VZR1800BZL4 (2014) FUEL TANK (VZR1800BZL4 E33) Diagram
