Description

Price

1

TANK ASSY, FUEL (YELLOW/BLACK)

44100-48GN0-KGK

$2,106.17

2

TAPE SET, FUEL TANK

68110-48GB0-ANW

Unavailable

3

SHIELD, TANK HEAT

44191-48G10

$336.25

4

TAPE

44192-48G00

$15.18

5

CAP SET,FUEL TA This part replaces 44200-39860.

44200-39862

$123.27

6

EMBLEM, RH

68111-48G01

$70.02

7

EMBLEM, LH

68121-48G01

$71.38

8

GAUGE ASSY,FUEL This part replaces 34810-48G00.

34810-48G01

$61.74

9

CUSHION | FRONT This part replaces 09329-10007.

09329-10026

$2.23

10

CUSHION, FUEL TANK

44541-13E10

$26.73

11

CLAMP (L:300)

09407-30402

$4.11

12

CLAMP(L:80) | SHIELD This part replaces 09404-06434.

09404-06036

$1.74

13

BRACKET, REAR

44530-48G10

$47.07

14

BOLT (6X20)

09116-06192

$2.30

15

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

16

WASHER

09169-06062

$2.50

17

BOLT (8X16) | REAR

01550-0816A

$2.32

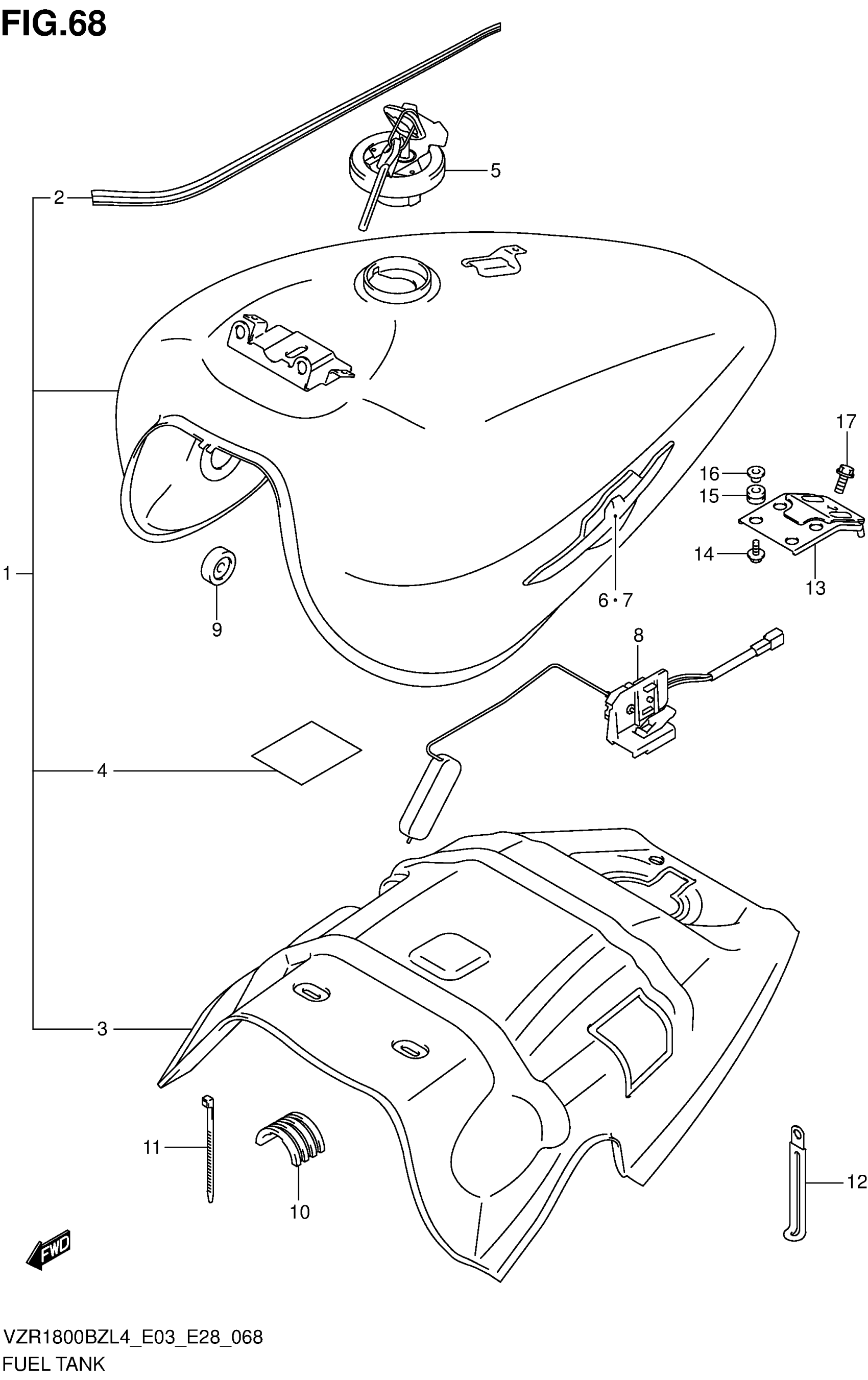

Suzuki VZR1800BZL4 (2014) FUEL TANK (VZR1800BZL4 E03) Diagram
