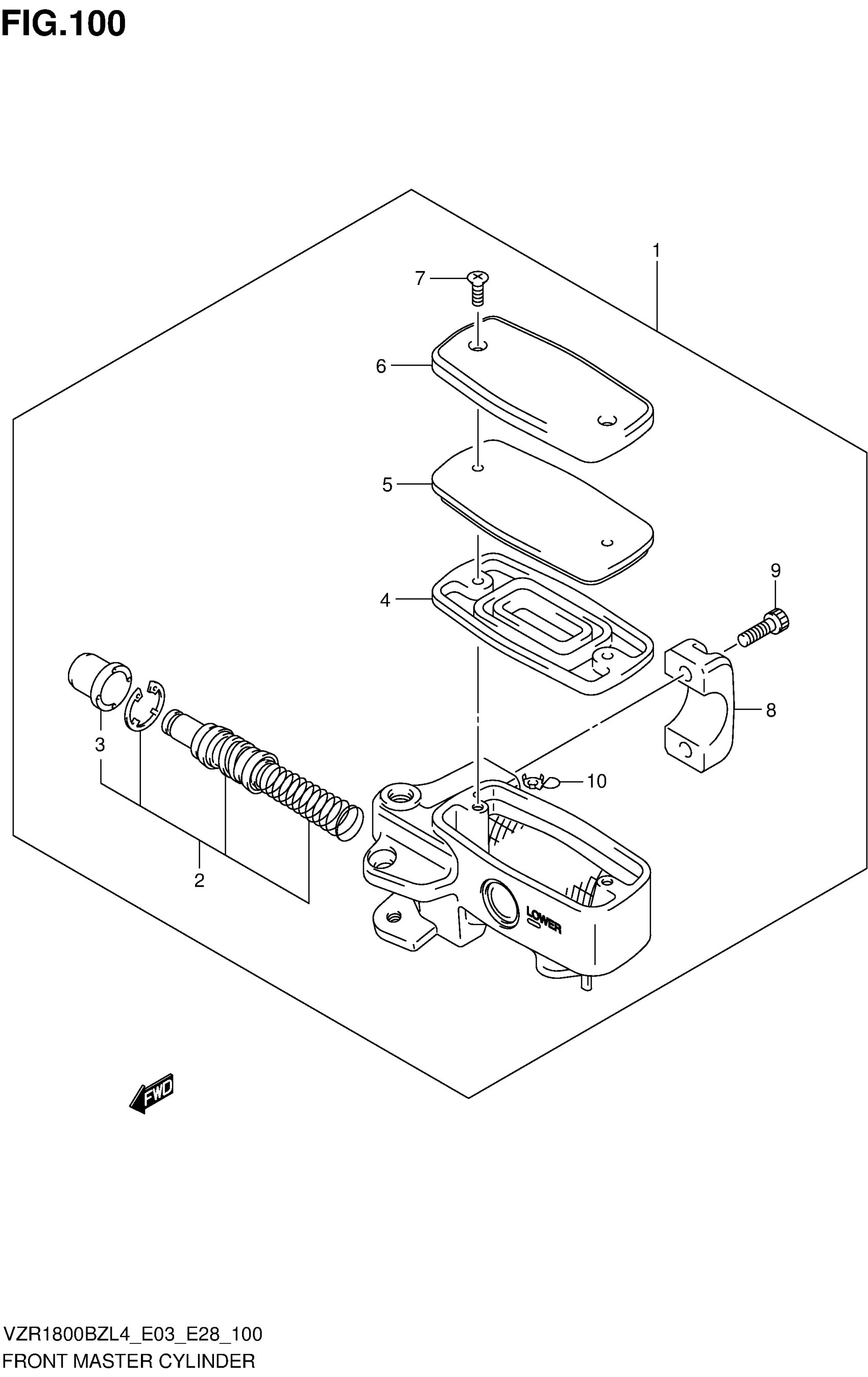

Suzuki VZR1800BZL4 (2014) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER

59600-10FD0

Unavailable

2

PISTON/CUP SET

59601-45810

$61.78

3

BOOT

59666-44300

$5.30

4

DIAPHRAGM

59667-10F00

$11.40

5

PLATE, DIAPHRAGM

57437-10F00

$23.73

6

CAP

59669-10F40

$56.07

7

SCREW

69689-49300

$1.81

8

HOLDER

59671-10F20

Unavailable

9

BOLT

07130-06207

$2.80

10

PROTECTOR

59664-32F00

$13.20
