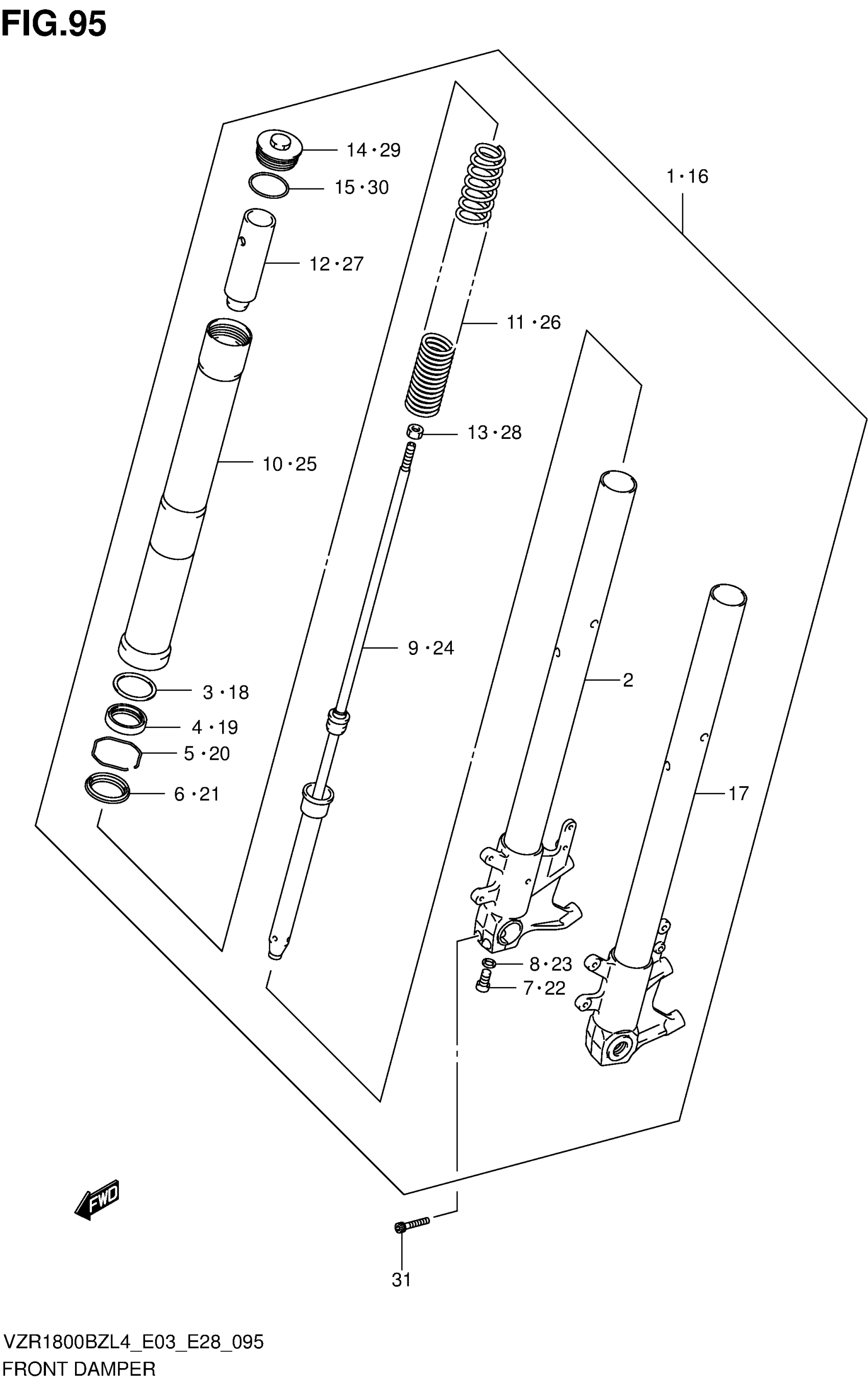

Suzuki VZR1800BZL4 (2014) FRONT DAMPER Diagram

#

Description
Price

1

DAMPER ASSY,FR FORK,RH This part replaces 51103-48G30.

51103-48G31

$1,435.33

2

TUBE, INNER RH

51110-48G30

$868.82

3

WASHER

51158-27C00

$6.19

4

OIL SEAL

51153-48G00

$25.17

5

RING, STOPPER

51156-27C00

$5.98

6

SEAL, DUST

51173-42F00

$26.58

7

BOLT

51147-05H00

$5.40

8

GASKET

51148-41310

$2.26

9

CYLINDER

51146-48G20

Unavailable

10

TUBE, OUTER

51130-48G30

Unavailable

11

SPRING, FRONT

51171-48G20

$108.50

12

SPACER, SPRING

51176-21H00

$27.40

13

.NUT, ROD

51352-13A60

$3.03

14

CAP

51351-48G30

Unavailable

15

..O RING This part replaces 51117-48G00.

51117-48G01

$3.05

16

DAMPER ASSY,FR FORK,L This part replaces 51104-48G30.

51104-48G31

$1,550.15

17

TUBE, INNER LH

51120-48G30

$868.82

18

WASHER

51158-27C00

$6.19

19

OIL SEAL

51153-48G00

$25.17

20

RING, STOPPER

51156-27C00

$5.98

21

SEAL, DUST

51173-42F00

$26.58

22

BOLT

51147-05H00

$5.40

23

GASKET

51148-41310

$2.26

24

CYLINDER

51146-48G20

Unavailable

25

TUBE, OUTER

51130-48G30

Unavailable

26

SPRING, FRONT

51171-48G20

$108.50

27

SPACER, SPRING

51176-21H00

$27.40

28

.NUT, ROD

51352-13A60

$3.03

29

CAP

51351-48G30

Unavailable

30

..O RING This part replaces 51117-48G00.

51117-48G01

$3.05

31

BOLT, HOLDER HANDLE UPPER

51328-39G20

$11.77
