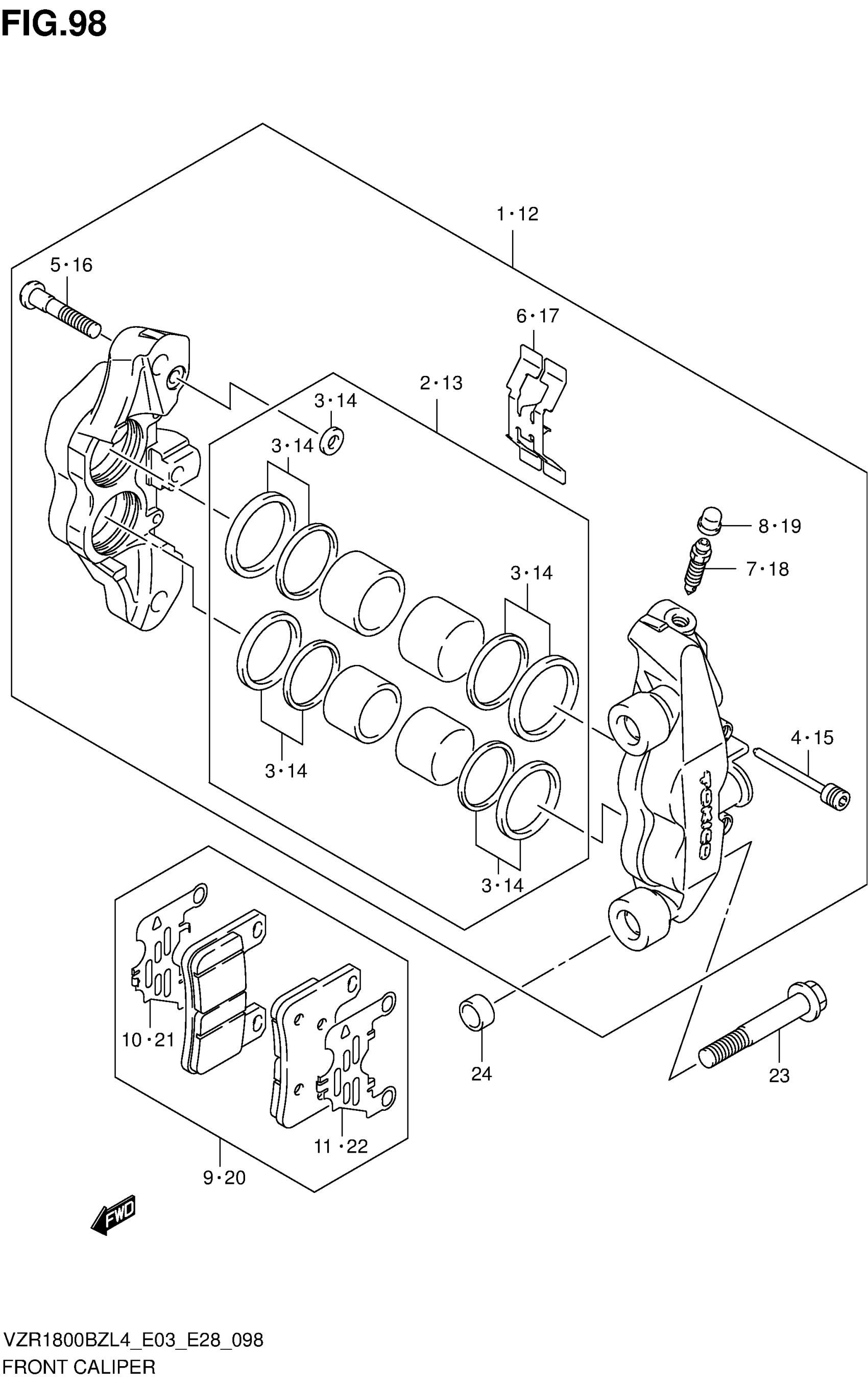

Suzuki VZR1800BZL4 (2014) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, FRONT RH

59100-41G40-999

$685.47

2

PISTON SET

59100-35870

$121.80

3

SEAL SET, PISTON This part replaces 59100-35820.

59100-29830

$37.48

4

PIN, PAD

59141-41G10

$25.82

5

BOLT

59145-18G00

$11.20

6

SPRING, PAD

59151-29G00

$12.28

7

BLEEDER

59121-18410

$8.35

8

CAP, BLEEDER PLUG

55156-66310

$4.94

9

PAD & SHIM SET

59100-29850

$43.53

10

SHIM, PAD A

59171-41G00

$17.40

11

SHIM, PAD B

59172-41G00

$17.40

12

CALIPER ASSY, FRONT LH

59300-41G40-999

$685.47

13

PISTON SET

59100-35870

$121.80

14

SEAL SET, PISTON This part replaces 59100-35820.

59100-29830

$37.48

15

PIN, PAD

59141-41G10

$25.82

16

BOLT

59145-18G00

$11.20

17

SPRING, PAD

59151-29G00

$12.28

18

BLEEDER

59121-18410

$8.35

19

CAP, BLEEDER PLUG

55156-66310

$4.94

20

PAD & SHIM SET

59100-29850

$43.53

21

SHIM, PAD A

59171-41G00

$17.40

22

SHIM, PAD B

59172-41G00

$17.40

23

BOLT (10X70)

09103-10392

$4.55

24

PIN, CALIPER

59151-41G00

$11.46
