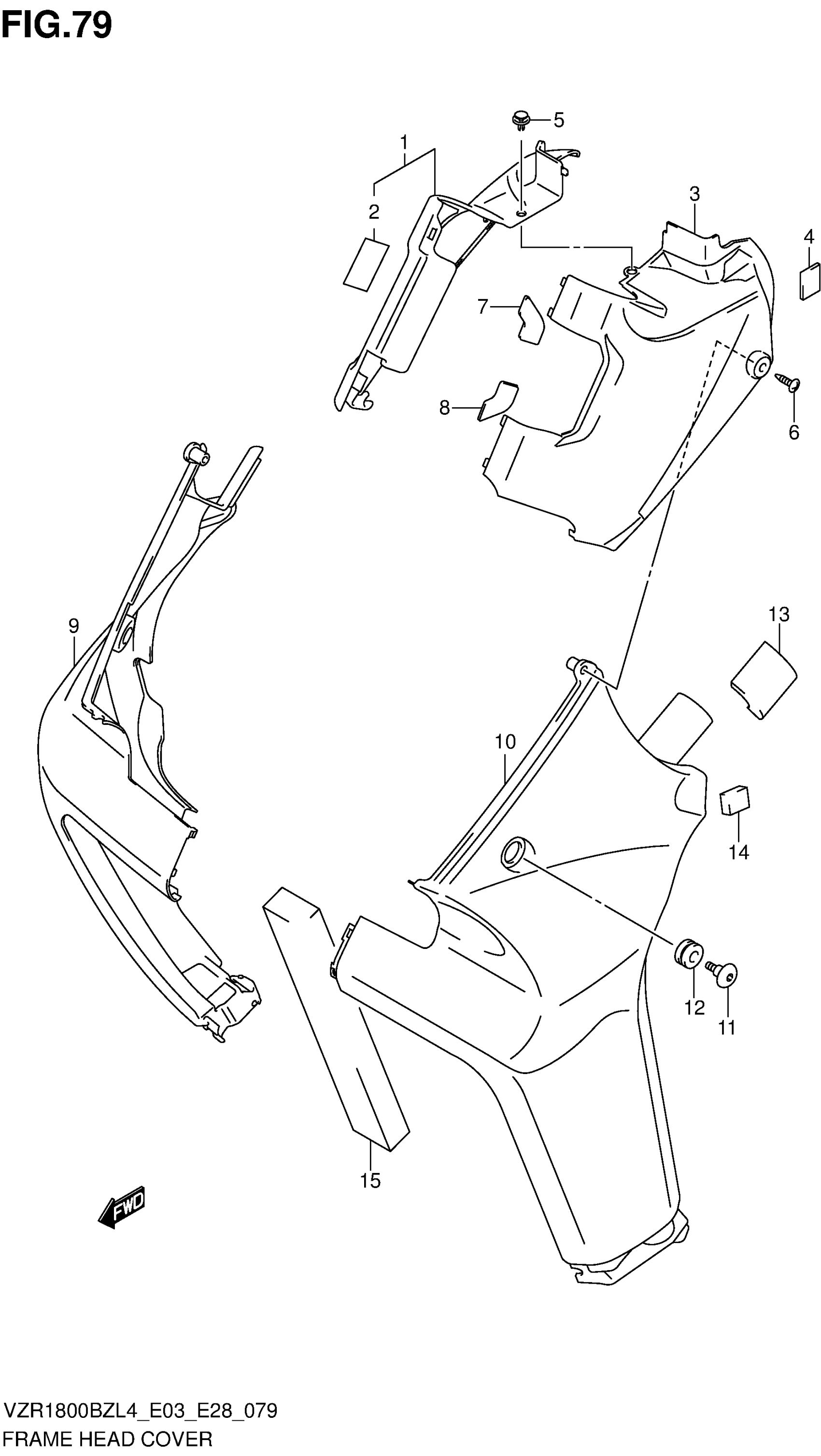

Suzuki VZR1800BZL4 (2014) FRAME HEAD COVER Diagram

#

Description
Price

1

COVER, FRAME HEAD RH (BLACK)

47350-48G50-YVB

$245.79

2

TAPE, FRAME HEAD COVER

89445-61J00

$9.90

3

COVER, FRAME HEAD LH (BLACK)

47361-48G50-YVB

Unavailable

4

CUSHION

17798-39G00

$6.49

5

CLIP

09409-06328

$3.23

6

SCREW

03541-0516A

$1.49

7

TAPE, UPPER

47352-48G00

Unavailable

8

TAPE, LOWER

47353-48G01

Unavailable

9

COVER, FRAME BODY RH (BLACK)

47551-48G50-YVB

$272.76

10

COVER, FRAME BODY LH (BLACK)

47561-48G50-YVB

$272.76

11

SCREW (6X20)

09139-06126

$4.04

12

CUSHION

09320-09016

$1.97

13

CUSHION, UPPER

63191-25C00

$3.05

14

CUSHION, CENTER

17798-39G00

$6.49

15

CUSHION, LOWER RH

47552-48G00

$20.52
