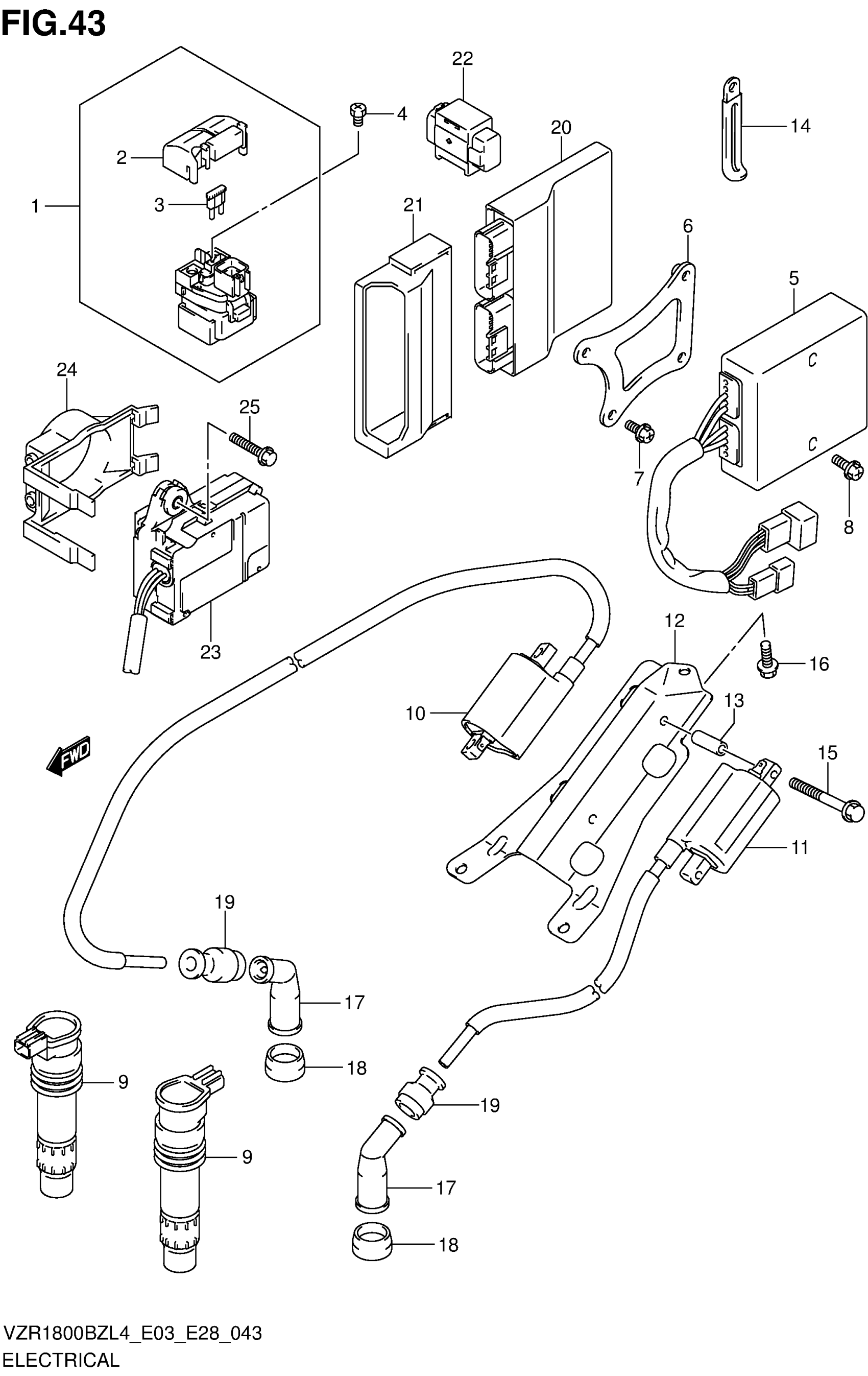

Suzuki VZR1800BZL4 (2014) ELECTRICAL (VZR1800BZL4 E28) Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR

31800-38G10

$97.31

2

COVER

31861-38G00

$4.88

3

FUSE (30A)

09481-30501

$2.32

4

SCREW (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY

32800-10G30

$326.67

6

BRACKET, RECT FTG

32830-48G00

Unavailable

7

BOLT

02162-0620C

$1.71

8

SCREW This part replaces 02162-0616A.

02162-0616B

$2.03

9

COIL ASSY,IGNITION This part replaces 33410-35F10.

33410-35F11

$142.65

10

COIL ASSY, IGNITION FRONT

33410-38A20

$163.57

11

COIL ASSY, IGNITION REAR

33410-48G00

$163.57

12

BRACKET, IGNITION COIL

33414-48G00

Unavailable

13

SPACER (6.4X10X18)

09180-06195

$3.68

14

CLAMP(L:80) | FOR RECTIFIER This part replaces 09404-06433.

09404-06036

$1.74

15

BOLT

01547-0535A

Unavailable

16

BOLT

01550-0616A

$1.97

17

CAP ASSY, SPARK PLUG

33510-20E00

$34.60

18

SEAL, SPARK PLUG

33541-47D00

$7.83

19

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

20

CONTROL UNIT,FI This part replaces 32920-48GH0.

32920-48GH1

$1,413.80

21

HOLDER,FI CONTROL UNIT This part replaces 32980-48G00.

32980-48G01

$19.02

22

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

23

ACTUATOR ASSY, EXHAUST CONTRO This part replaces 33970-48G00.

33970-48G02

$409.57

24

COVER, ACTUATOR

33973-48G01

Unavailable

25

BOLT

01560-0625A

$2.72
