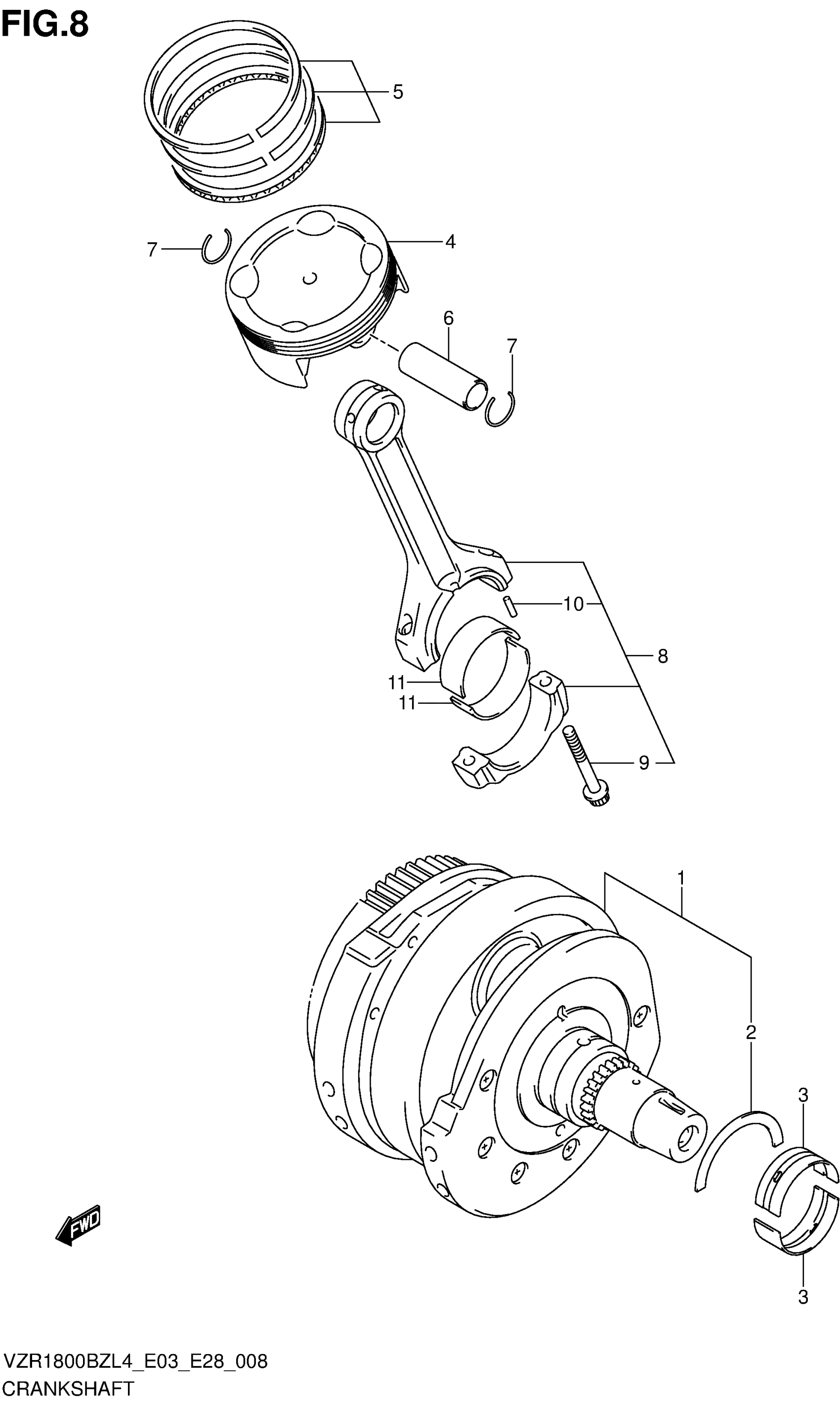

Suzuki VZR1800BZL4 (2014) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT SET

12000-48840

Unavailable

2

WASHER, CRANK THRUST (RED)

12228-48G00-0A0

$13.28

2

WASHER, CRANK THRUST (BLACK)

12228-48G00-0B0

Unavailable

2

WASHER, CRANK THRUST (BLUE)

12228-48G00-0C0

$13.28

2

WASHER, CRANK THRUST (GREEN)

12228-48G00-0D0

Unavailable

2

WASHER, CRANK THRUST (YELLOW)

12228-48G00-0E0

$13.28

2

WASHER, CRANK THRUST (WHITE)

12228-48G00-0F0

Unavailable

3

BEARING, CRANKSHAFT (GREEN)

12229-48G10-0A0

$28.85

3

BEARING, CRANKSHAFT (BLACK)

12229-48G10-0B0

$28.85

3

BEARING, CRANKSHAFT (BROWN)

12229-48G10-0C0

$27.80

3

BEARING, CRANKSHAFT (YELLOW)

12229-48G10-0D0

$28.85

3

BEARING, CRANKSHAFT (BLUE)

12229-48G10-0E0

$28.85

4

PISTON

12111-48G00-0F0

$332.00

5

RING SET, PISTON

12140-48G00

$132.73

6

PIN, PISTON

12151-48G00

$29.82

7

CIRCLIP

09381-23003

$1.49

8

ROD ASSY, CONNECTING

12160-48G00

$273.45

9

BOLT

12163-06G00

$20.85

10

PIN (4X13.8)

04221-04089

$1.49

11

BEARING, CRANK PIN (GREEN)

12164-48G00-0A0

$22.10

11

BEARING, CRANK PIN (BLACK)

12164-48G00-0B0

$21.67

11

BEARING, CRANK PIN (BROWN)

12164-48G00-0C0

$21.67

11

BEARING, CRANK PIN (YELLOW)

12164-48G00-0D0

$22.10
