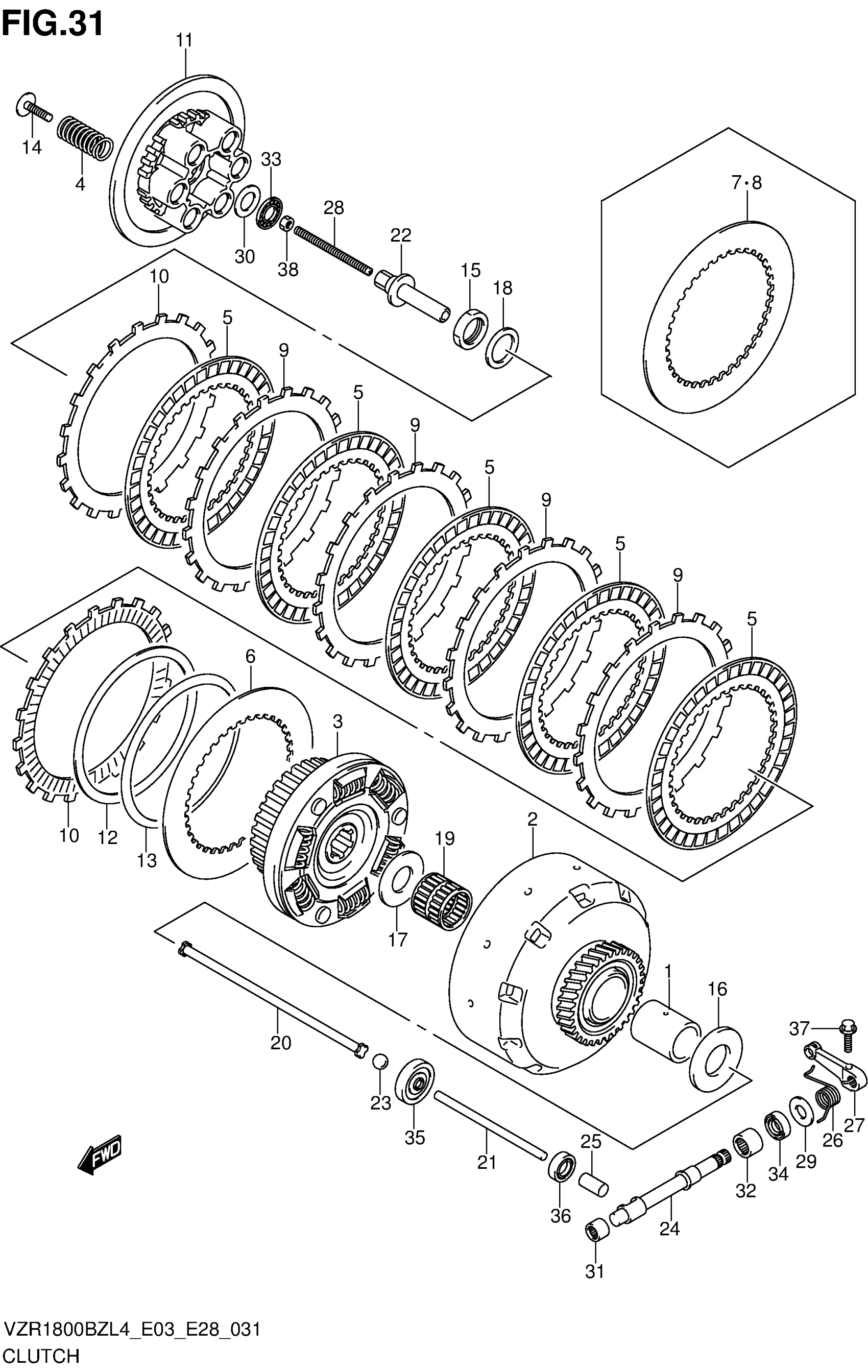

Suzuki VZR1800BZL4 (2014) CLUTCH (VZR1800BZL4 E28) Diagram

#

Description
Price

1

SPACER, PRIMARY DRIVE GEAR

21151-48G00

$51.63

2

GEAR ASSY, PRIMARY DRIVE | NT:34

21100-48G01

$383.37

3

HUB, CLUTCH

21410-48G10

$485.47

4

SPRING, CLUTCH

21413-35F10

$6.51

5

PLATE, CLUTCH DRIVE NO.1 | T:3.0

21441-22H00

$45.72

6

PLATE, CLUTCH DRIVE NO.2 | T:2.0

21441-48G40

$17.28

7

PLATE, CLUTCH DRIVE NO.3 | T:2.3

21441-48G50

$17.28

8

PLATE, CLUTCH DRIVE NO.4 | T:1.6

21441-48G60

$17.28

9

PLATE, CLUTCH DRIVEN NO.1 | T:2.3

21451-22H00

$19.23

10

PLATE, CLUTCH DRIVEN NO.2 | T:3.4

21451-48G10

$33.68

11

DISC, CLUTCH PRESSURE

21462-48G00

$58.97

12

SEAT, WAVE WASHER

21471-48G00

$13.01

13

WASHER, CLUTCH PLATE

21472-48G10

$23.81

14

BOLT, CLUTCH SPRING

21482-41G00

$2.80

15

NUT

09159-24010

$11.92

16

.WASHER (25X50X2.5)

09160-25056

$10.63

17

.WASHER (25X50X2.5)

09160-25056

$10.63

18

WASHER

09164-24008

$5.00

19

BEARING (32X37X38.3)

09263-32020

$50.87

20

ROD, CLUTCH

23110-24F00

$20.93

21

ROD, CLUTCH PUSH LH

23111-48G00

$22.30

22

PIECE, CLUTCH PUSH

23121-41G00

$55.32

23

BALL, CLUTCH PUSH

23122-02FR0

$100.95

24

CAMSHAFT, CLUTCH RELEASE

23122-48G00

$66.67

25

CAP, CLUTCH PUSH ROD

23123-41G00

$10.01

26

SPRING, CLUTCH RELEASE RETURN

23125-48G00

$4.47

27

ARM, CLUTCH RELEASE

23271-48G00

$86.48

28

SCREW (6X73)

09134-06015

$6.21

29

WASHER (10.5X24X1)

09160-10020

$1.86

30

WASHER (15.5X28X1)

09160-15045

$3.52

31

BEARING (10X14X10) | LOWER

09263-10014

$12.21

32

BEARING (12X18X12) | UPPER

09263-12027

$6.59

33

BEARING (15X28X2)

09263-15003

$7.49

34

OIL SEAL (10X20X6)

09282-10012

$7.20

35

OIL SEAL (6X34X10.5)

09283-06010

$15.16

36

OIL SEAL (10X17X5)

09285-10004

$3.04

37

BOLT

01547-0620A

$2.01

38

NUT

08310-0006A

$1.83
