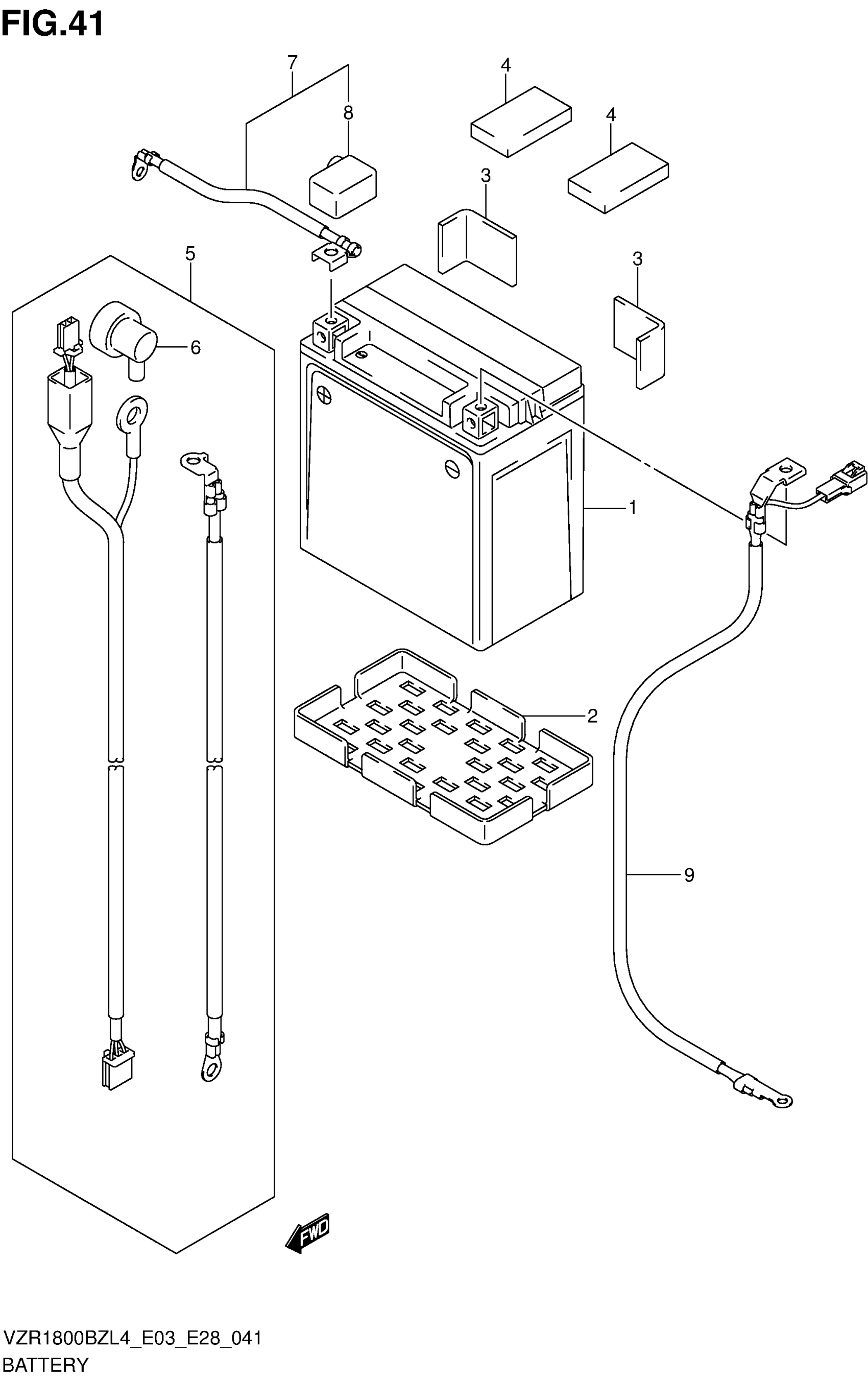

Suzuki VZR1800BZL4 (2014) BATTERY Diagram

#

Description

Price

1

BATTERY ASSY This part replaces 33610-31G01.

33610-03G10

$143.65

2

PROTECTOR,BATTERY

33652-16G00

$11.95

3

PROTECTOR (30X50X3.0)

33652-36000

$2.30

4

CUSHION, REAR FENDER REAR | CUT AS REQUIRED PROFILE (20X45) This part replaces 33652-08420.

33651-37000

$4.48

5

WIRE,STARTER MOTOR LEAD This part replaces 33810-48G00.

33810-48G02

$75.62

6

CAP, OIL PRESSURE SWITCH

36618-43410

$2.90

7

WIRE,BATTERY PLUS LEAD This part replaces 33820-48G00.

33820-48G01

$32.25

8

CAP, BATTERY

33624-10D00

$6.30

9

WIRE, BATTERY MINUS LEAD

33860-48G10

Unavailable
