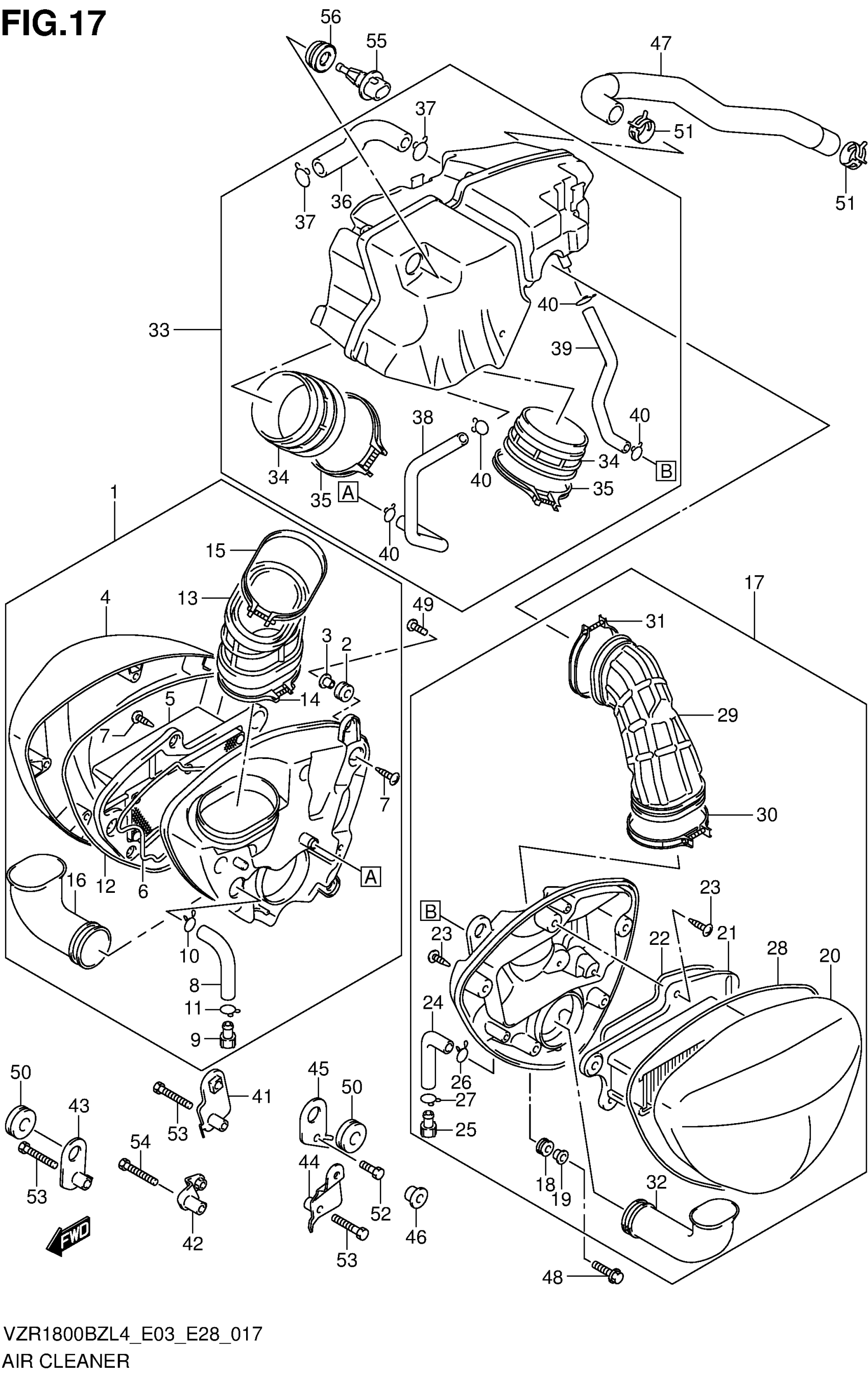

Suzuki VZR1800BZL4 (2014) AIR CLEANER (VZR1800BZL4 E28) Diagram

#

Description
Price

1

CLEANER,AIR,R This part replaces 13701-48G40.

13701-48G41

$422.07

2

CUSHION

09320-09016

$1.97

3

COLLAR

13812-29C50

$2.70

4

CAP

13741-48G40

$204.78

5

FILTER

13780-48G20

$65.25

6

GASKET

13747-48G00

$14.27

7

SCREW

03111-0516A

$1.70

8

.TUBE This part replaces 13873-48G00.

13873-48G01

$17.22

9

STOPPER

13877-00190

$5.32

10

CLIP

09401-14301

$2.35

11

CLIP

09401-15101

$2.26

12

GASKET

13746-48G00

$17.03

13

TUBE, JOINT

13739-48G00

$78.73

14

CLAMP

13826-48G00

$21.22

15

.CLAMP This part replaces 13827-48G00.

13827-22H00

$22.00

16

TLUBE, INLET

13891-48G20

$44.42

17

CLEANER,AIR,L This part replaces 13702-48G40.

13702-48G41

$332.63

18

CUSHION

09320-09016

$1.97

19

COLLAR

13812-29C50

$2.70

20

CAP

13741-48G40

$204.78

21

FILTER

13780-48G20

$65.25

22

GASKET

13747-48G00

$14.27

23

SCREW

03111-0516A

$1.70

24

.TUBE This part replaces 13873-48G00.

13873-48G01

$17.22

25

STOPPER

13877-00190

$5.32

26

CLIP

09401-14301

$2.35

27

CLIP

09401-15101

$2.26

28

GASKET

13746-48G00

$17.03

29

TUBE, JOINT

13739-48G10

$78.73

30

CLAMP

13826-48G00

$21.22

31

.CLAMP This part replaces 13827-48G00.

13827-22H00

$22.00

32

TUBE, INLET

13891-48G20

$44.42

33

CHAMBER,AIR CLEANER This part replaces 13710-48G30.

13710-48G31

$240.28

34

TUBE, OUTLET

13881-48G00

$29.33

35

CLAMP

13826-22H00

$7.17

36

.HOSE This part replaces 13865-48G00.

13865-48G01

$21.58

37

CLIP

09401-15101

$2.26

38

.TUBE,DRAIN This part replaces 13871-48G00.

13871-48G01

$25.22

39

.TUBE,DRAIN This part replaces 13871-48G10.

13871-48G11

$24.77

40

CLIP

09401-13409

$2.12

41

BRACKET, NO.1

13760-48G00

$34.85

42

BRACKET, NO.2

13760-48G10

$24.03

43

BRACKET, NO.3

13760-48G20

$15.53

44

BRACKET, NO.4

13770-48G00

$28.27

45

BRACKET, NO.5

13770-48G10

$4.88

46

SPACER, LH

13838-48G10

$8.60

47

TUBE, BREATHER

13850-48G10

$68.42

48

BOLT (6X35)

09139-06154

$3.85

49

BOLT (6X20)

09139-06155

$3.72

50

CUSHION

09320-08028

$3.04

51

CLIP

09401-20405

$4.08

52

BOLT

01500-0612A

$1.78

53

BOLT

01500-0625A

$1.78

54

BOLT (6X35)

09139-06154

$3.85

55

SENSOR, AIR TEMP

13650-52G00

$107.20

56

.GROMMET,AIR TEMP SENSOR This part replaces 13655-77E00.

13655-77E10

$3.85
