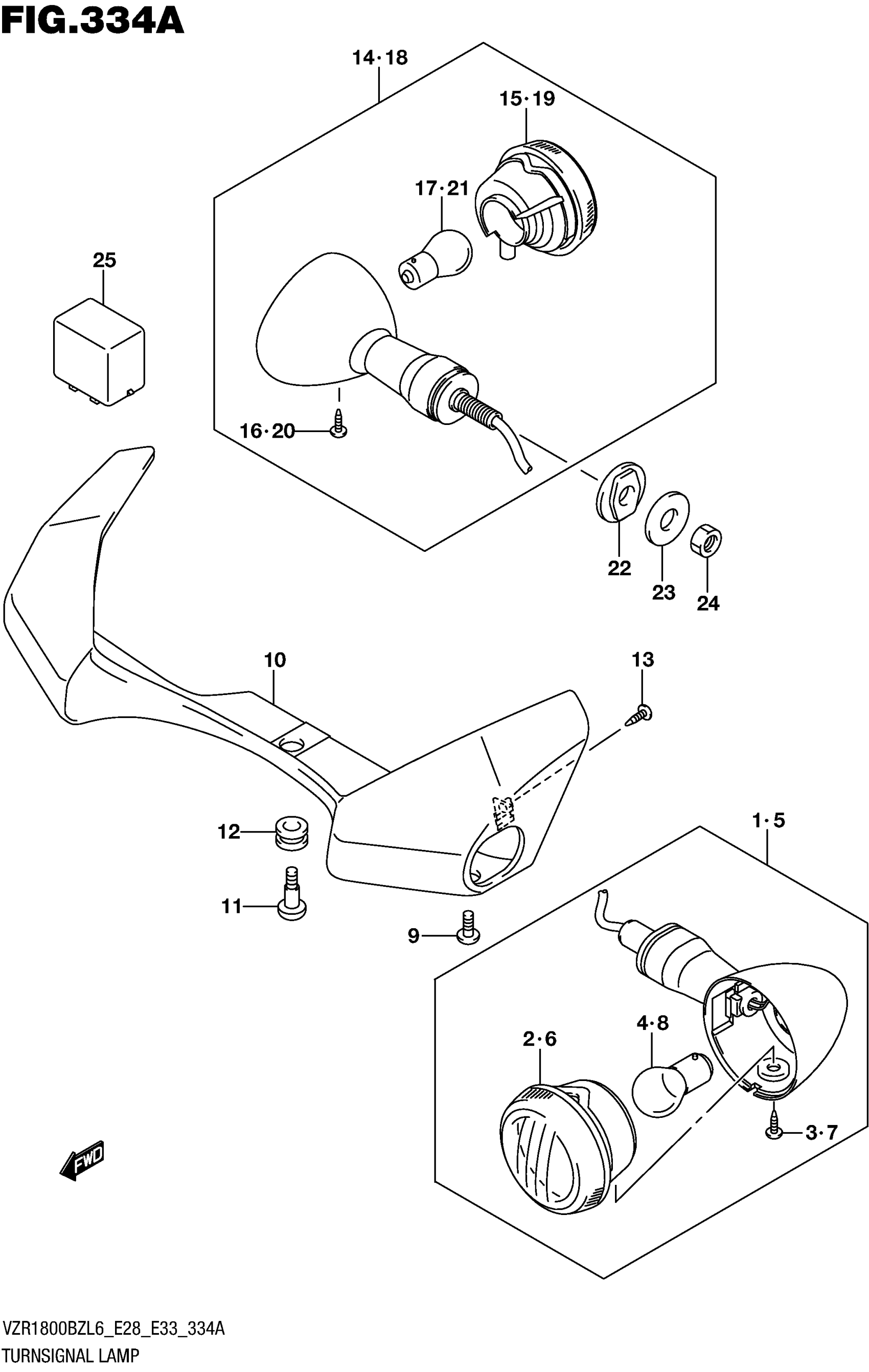

Suzuki VZR1800 (2016) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL R

35601-38AH0

$181.72

2

.LENS | FOR AMBER

35610-48EB0

$50.30

3

.SCREW (4X10)

35623-38AA0

$5.11

4

.BULB (12V23/8W) | FOR CLEAR

09471-12224

$40.17

5

LAMP ASSY, FRONT TURNSIGNAL L

35602-38AH0

$180.85

6

.LENS | FOR AMBER

35630-48EB0

$52.23

7

.SCREW (4X10)

35623-38AA0

$5.11

8

.BULB (12V23/8W) | FOR CLEAR

09471-12224

$40.17

9

SCREW

02142-0612A

$1.49

10

COVER, FRONT TURNSIGNAL

35641-48GB0

$162.23

11

SCREW (6X16)

09139-06146

$2.95

12

CUSHION

09320-09016

$1.97

13

SCREW

03541-0512A

$1.49

14

LAMP ASSY, REAR TURNSIGNAL RH

35603-48ED0

$154.02

15

.LENS | FOR AMBER

35630-38AE1

$31.91

16

.SCREW (4X10)

35623-38AA0

$5.11

17

.BULB (12V,21W) | FOR CLEAR

09471-12045

$3.27

18

LAMP ASSY,RR TURNSIGNAL LH This part replaces 35604-38AF0.

35604-38AF1

$111.38

19

.LENS | FOR AMBER

35610-38AE1

$31.91

20

.SCREW (4X10)

35623-38AA0

$5.11

21

.BULB (12V,21W) | FOR CLEAR

09471-12045

$3.27

22

SPACER, REAR TURNSIGNAL LAMP

35695-17C00

$4.03

23

WASHER (10.5X30X2.3)

09160-10501

$2.33

24

NUT

08310-0010A

$1.84

25

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08
