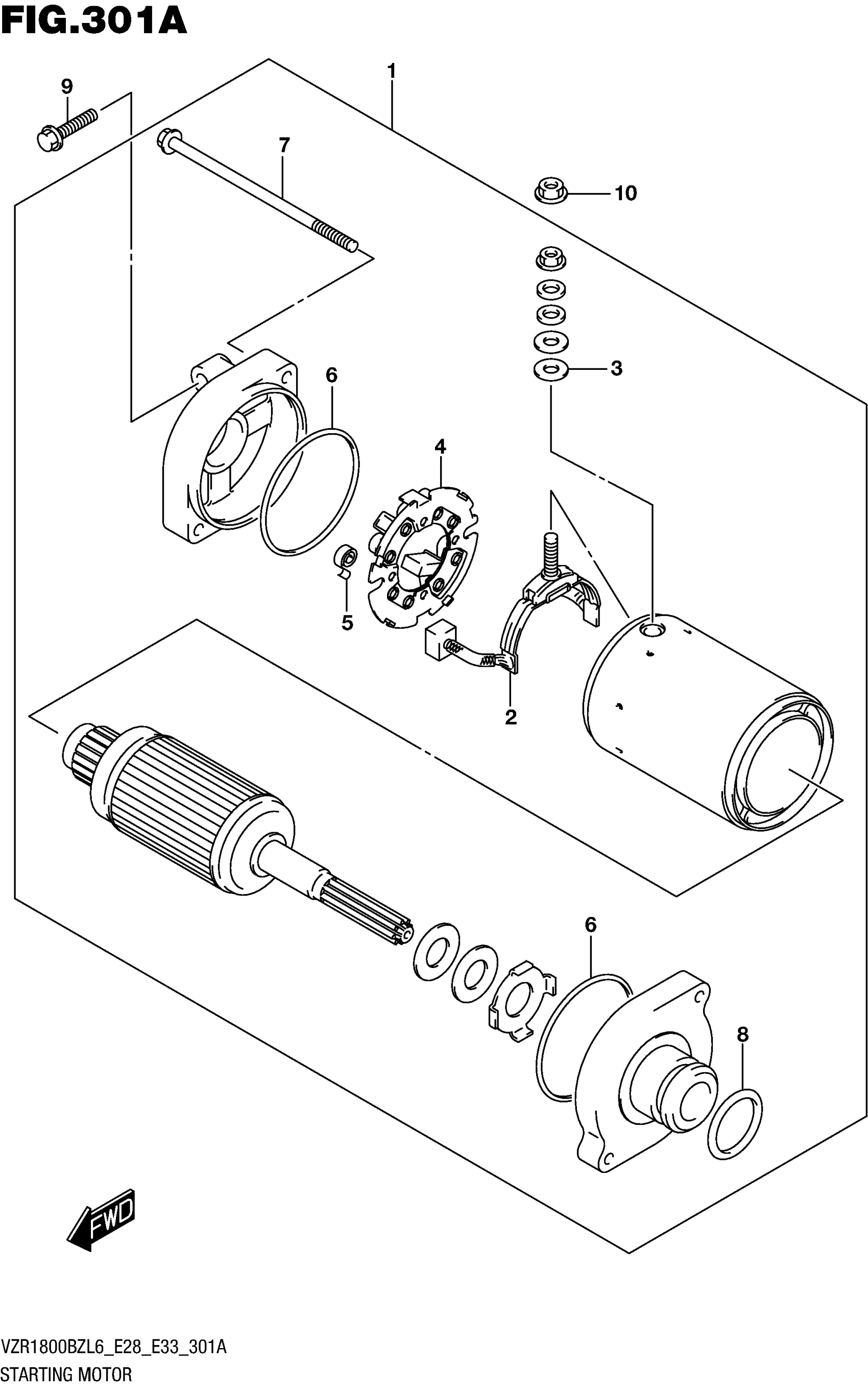

Suzuki VZR1800 (2016) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING

31100-48G00

$950.68

2

.TERMINAL SET, BRUSH

31130-38B00

$78.27

3

.O RING

31143-49040

$3.50

4

.HOLDER SET, BRUSH

31132-38B00

$78.27

5

.SPRING, BRUSH

31135-38B00

$6.10

6

O RING This part replaces 31264-31300.

31264-32E00

$6.29

7

BOLT This part replaces 31281-24B10.

31281-31D00

$9.77

8

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

9

BOLT

01547-0625A

$2.01

10

NUT

08361-3506A

$1.81
