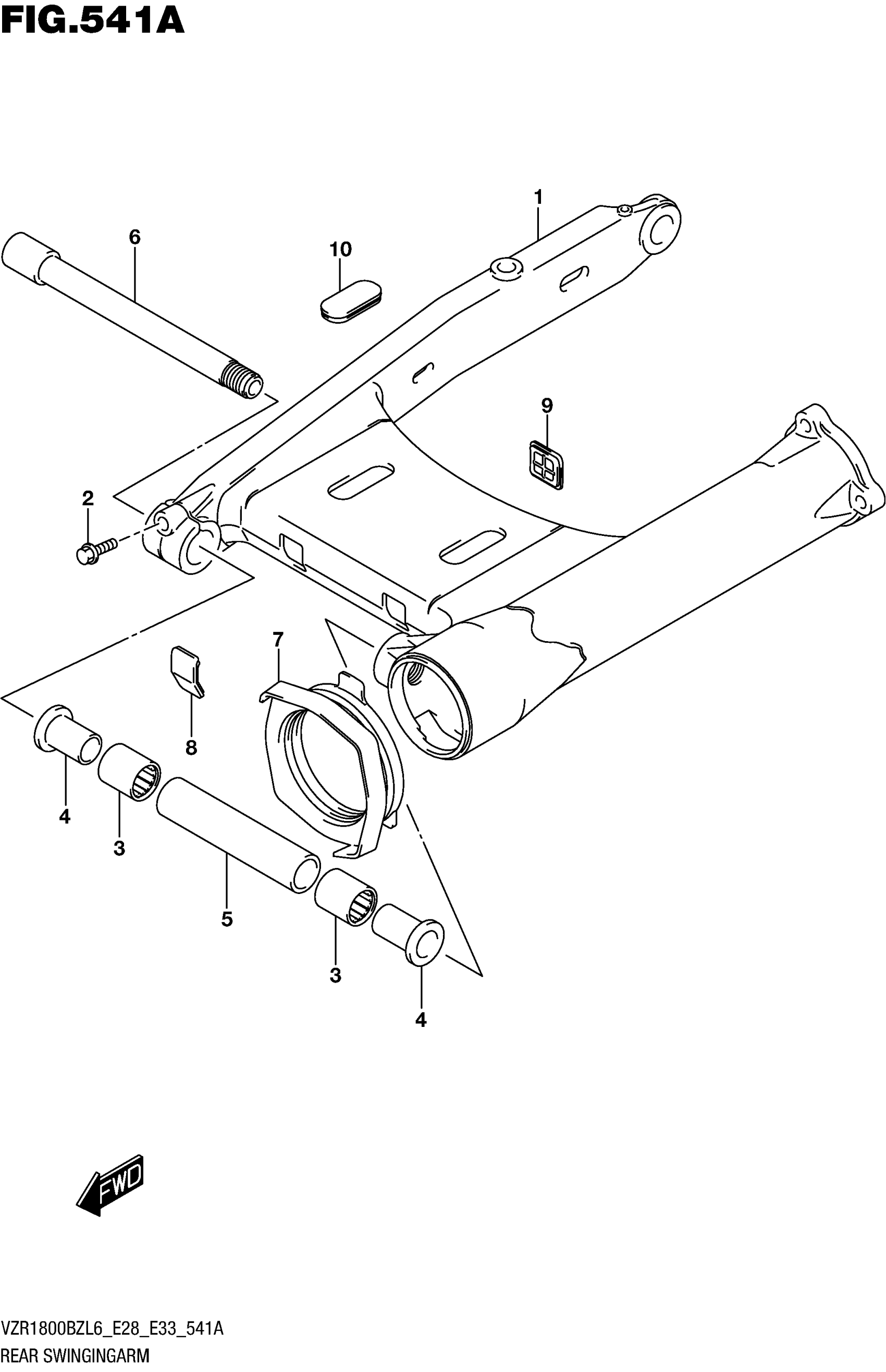

Suzuki VZR1800 (2016) REAR SWINGINGARM Diagram

#

Description

Price

1

SWINGINGARM, REAR (BLACK)

61111-48G30-019

Unavailable

2

BOLT (8X36)

09103-08071

$5.65

3

BEARING (25X33X35) This part replaces 09263-25059.

09263-25073

$30.93

4

SPACER,PIVOT BEARING

61251-31E00

$59.25

5

SPACER, REAR SWGARM PIVOT CTR

61280-48G01

Unavailable

6

SHAFT, REAR SWGARM PIVOT

61211-48G00

$145.32

7

BOOT,PROPELLER SHAFT This part replaces 61372-48G10.

61372-48G11

$22.42

8

CAP, JOINT FRONT

61167-48G00

$8.60

9

CAP, JOINT REAR

61168-48G00

$9.24

10

CAP, JOINT UPPER

61169-48G00

$8.60
