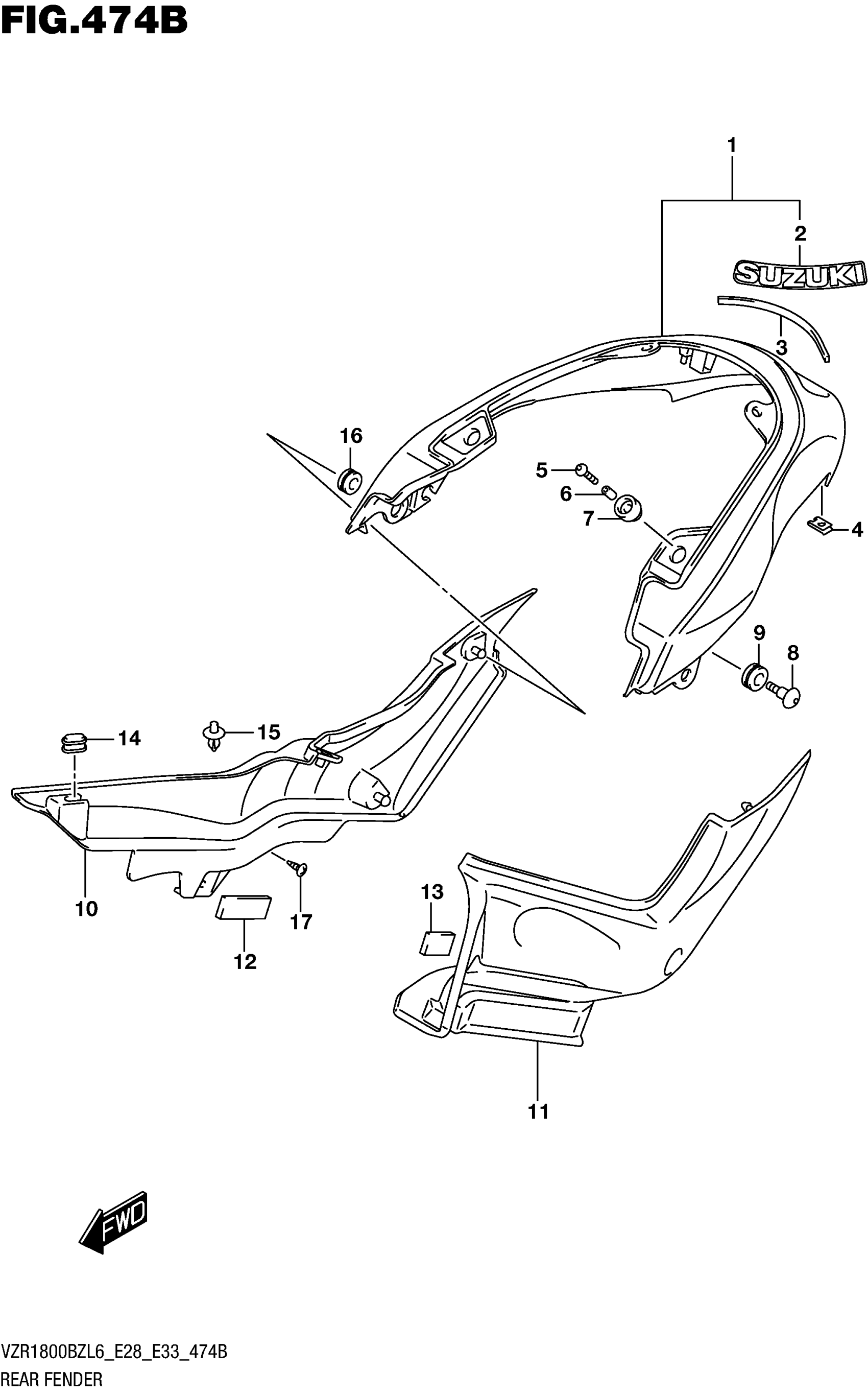

Suzuki VZR1800 (2016) REAR FENDER (FOR PGZ) (VZR1800BZL6 E28) Diagram

Description

Price

FENDER,REAR This part replaces 63110-48G00-PGZ.

63110-48G01-PGZ

$358.55

EMBLEM,"SUZUKI" This part replaces 68641-19F00-AHW.

68641-19F01-AHW

$10.22

CUSHION, COVER

63117-39G00

$4.65

NUT COWL

94484-24F00

$4.03

SCREW (6X16)

09139-06139

$3.23

SPACER (6.5X10X9.4)

09180-06286

$2.50

CUSHION

09320-10045

$3.76

BOLT (6X20)

09139-06190

$4.17

CUSHION

09320-09016

$1.97

COVER, FENDER RH (GRAY)

63171-48G01-PGZ

$139.77

COVER, FENDER LH (GRAY)

63181-48G01-PGZ

$139.77

CUSHION, RH

15439-70G10

$4.33

CUSHION, LH

47161-19C00

$3.03

CUSHION,FUEL TANK COVER This part replaces 44276-29G00.

44276-29G01

$3.56

CLIP (BLACK)

09409-06314-5PK

$2.78

CUSHION

09320-08028

$3.04

SCREW

03541-0516A

$1.49
