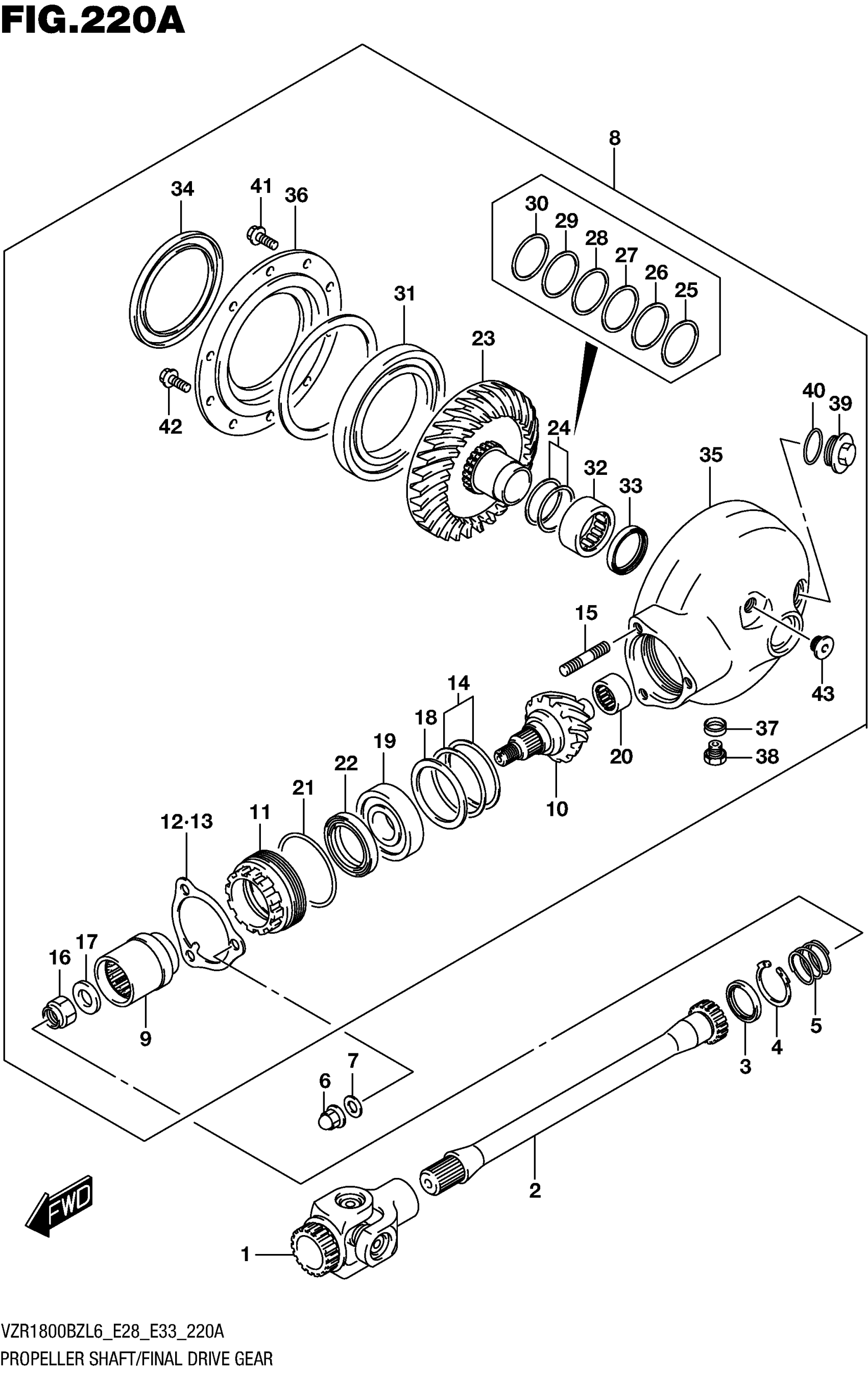

Suzuki VZR1800 (2016) PROPELLER SHAFT/FINAL DRIVE GEAR Diagram

#

Description
Price

1

YOKE, UNIVERSAL JOINT

27100-48G20

$351.00

2

SHAFT, PROPELLER (L:375)

27151-48G20

$278.10

3

OIL SEAL (30X40.5X5.5)

09283-30026

$10.40

4

CIRCLIP

09381-40003

$4.64

5

SPRING

09440-30008

$3.72

6

NUT

09159-10026

$6.20

7

WASHER

09164-10008

$1.71

8

GEAR & CASE SET This part replaces 27300-48850-019.

27300-48851-019

$1,975.02

8

GEAR & CASE SET This part replaces 27300-48850-019.

27300-48851-019

$1,975.02

9

.COUPLING, FINAL DRIVE GEAR

27172-24A00

$59.80

10

.GEAR, FINAL DRIVE BEVEL

27311-24A03

Unavailable

10

(NT:12)

27311-24A03

Unavailable

11

.STOPPER, FINAL DRIVE

27312-24A02

$74.08

12

.PLATE, BEARING STOPPER

27313-38B00

$7.37

13

.PLATE, BEARING STOPPER

27313-38B10

$7.37

14

.SHIM SET,FINAL DRIVE GEAR (T | T:0.30/0.35/0.40/0.5

27445-24810

$28.18

15

.STUD BOLT

09108-10106

$4.68

16

.NUT

09159-16003

$4.00

17

.WASHER (16X29X4)

09160-16029

$6.35

18

.WASHER (54X68X1.5)

09160-54001

Unavailable

19

.BEARING (28X68X18)

09262-28023

$127.87

20

BEARING (20X34X18)

09263-20062

$46.98

21

.O RING (D:3.1,ID:63.9)

09280-64003

$5.64

22

.OIL SEAL (45.5X58X7)

09283-47002

$17.18

23

.GEAR, FINAL DRIVEN BEVEL

27320-48G00

Unavailable

24

.SHIM SET, FINAL DRIVEN GEAR | RH

27326-48811

$103.03

25

..SHIM (40X46.8X0.95)

09181-40011

$3.27

26

..SHIM (40X46.8X1.05)

09181-40013

$3.97

27

..SHIM (40X46.8X1.1)

09181-40014

Unavailable

28

..SHIM (40X50X1.2)

09181-40176

Unavailable

29

..SHIM (40X50X1.4)

09181-40182

Unavailable

30

..SHIM (40X50X1.5)

09181-40212

Unavailable

31

.BEARING (85X130X14)

09262-85001

$202.27

32

.BEARING (40X50X20)

09263-40016

$68.97

33

.OIL SEAL (38X46X6)

09283-38026

$16.33

34

.OIL SEAL (85X110X11)

09289-85001

$41.81

35

.CASE, FINAL GEAR (BLACK)

27450-48G70-019

Unavailable

36

.CASE, FINAL GEAR BEARING

27461-38B00

$239.92

37

.GASKET (13.8X18.8X4.8)

09168-14002

$2.26

38

PLUG (MAGNETO)

09247-14002

$5.24

39

.PLUG (30X9)

09259-30007

$18.39

40

.O RING (D:3.1,ID:26.4)

09280-26006

$2.76

41

.BOLT

01550-0825A

$2.32

42

BOLT (10X20)

01550-1025A

$3.05

43

.PLUG (16X8)

09248-16012

$4.64
