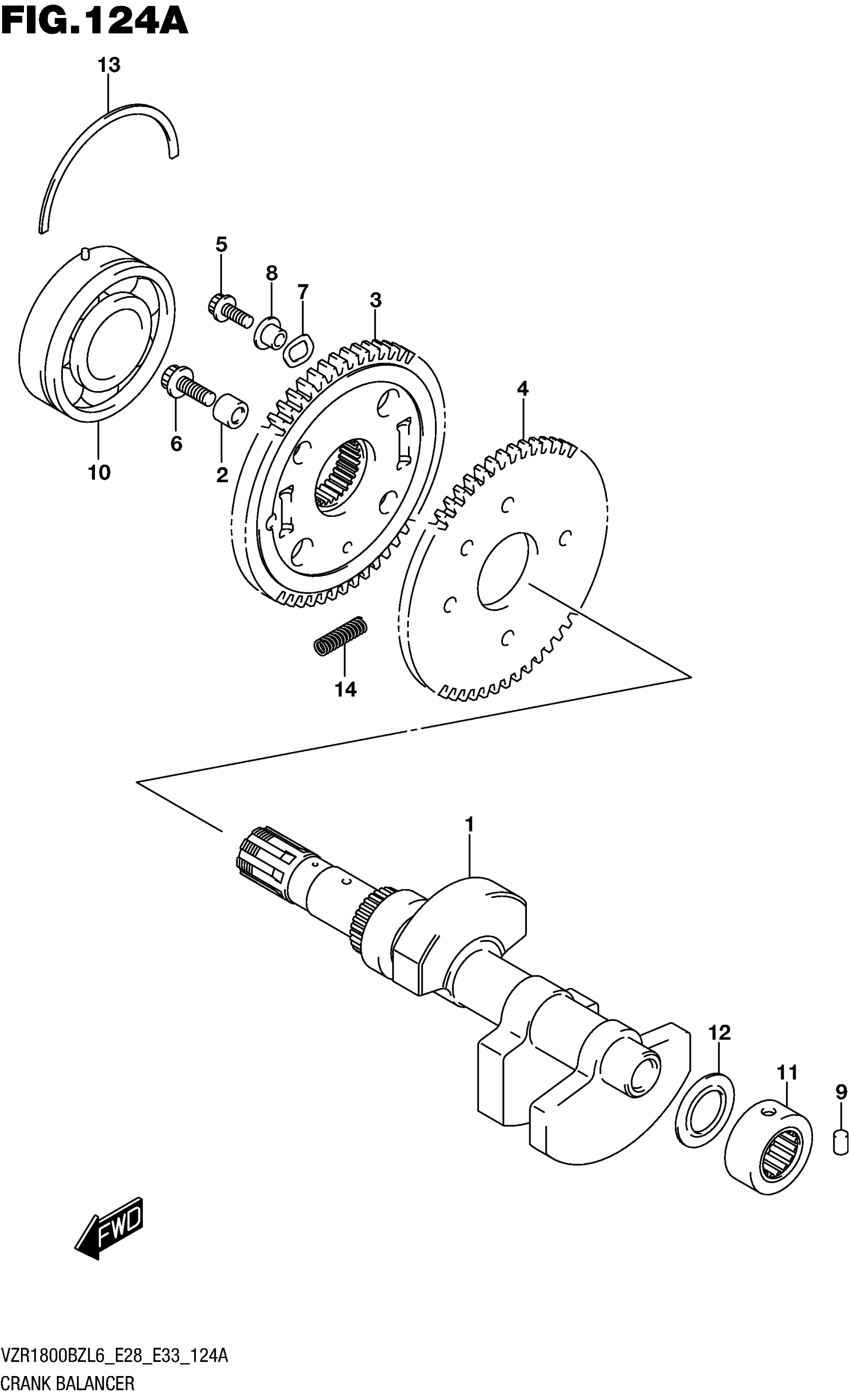

Suzuki VZR1800 (2016) CRANK BALANCER Diagram

#

Description
Price

1

SHAFT, CRANK BALANCER

12650-48G00

Unavailable

2

SPACER,CRANK BAL DRN GEAR NO.

12663-48G00

Unavailable

3

GEAR, DRIVEN NO.1 (NT:55)

12666-48G10

Unavailable

4

GEAR, DRIVEN NO.2 (NT:55)

12667-48G10

Unavailable

5

BOLT (6X16)

09106-06099

$2.82

6

BOLT (8X16)

09106-08191

Unavailable

7

WASHER

09164-11005

Unavailable

8

SPACER (6.3X10X9.6)

09180-06329

Unavailable

9

PIN (6X10)

09261-06003

$1.49

10

BEARING (25X62X17)

09262-25160

Unavailable

11

BEARING (20X34X13.5)

09263-20087

$42.65

12

OIL SEAL (20X31.2X2.7)

09285-20006

$6.51

13

C RING

09390-62012

$7.31

14

SPRING

09440-07001

$2.38
