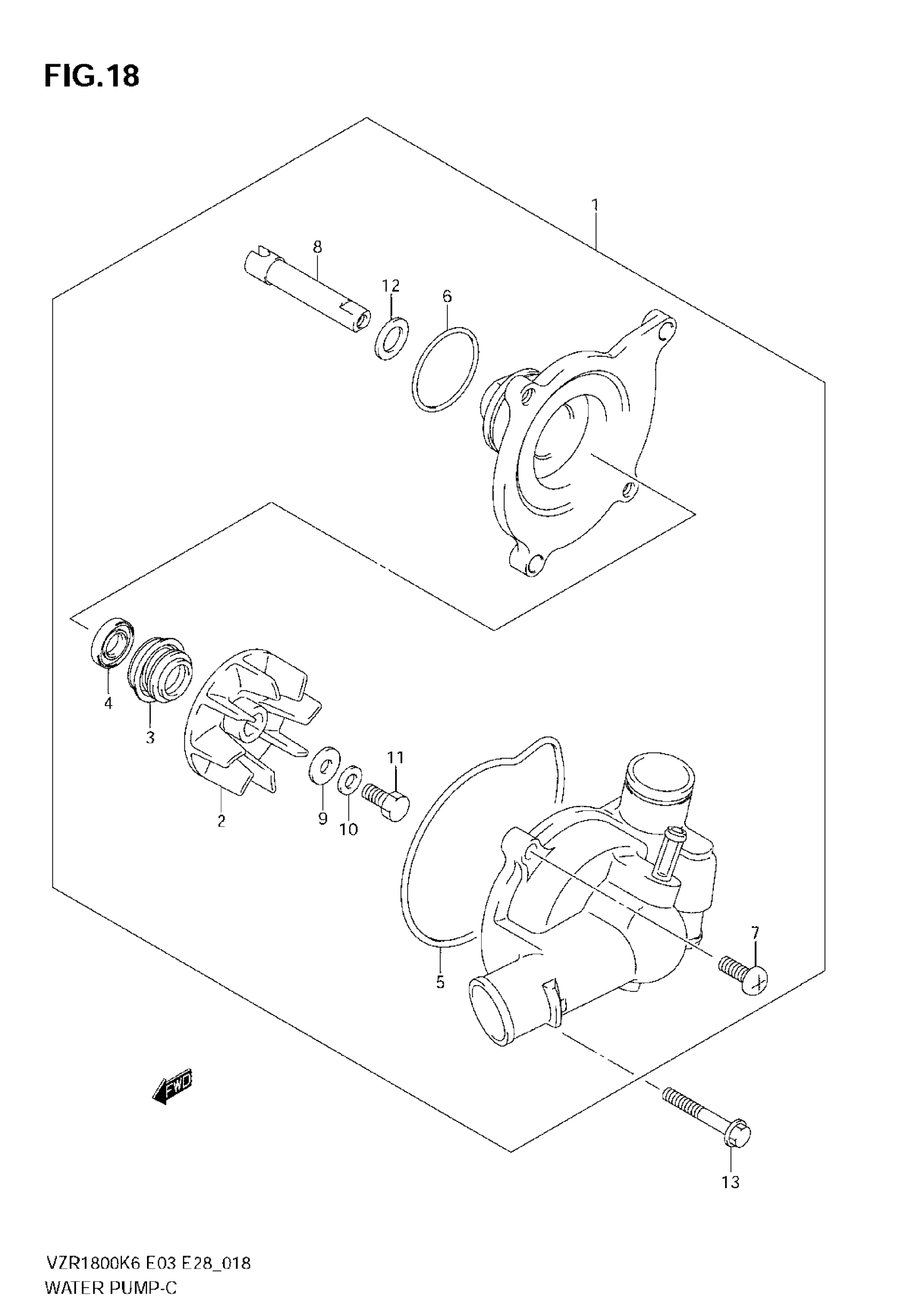

Suzuki VZR1800 (2009) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY,WATER | Includes Item(s) 2 - 12 This part replaces 17400-48G00.

17400-48G01

$393.77

2

IMPELLER

17491-17E01

$26.34

3

.SEAL,MECHANICAL This part replaces 17470-02F10.

17470-02F11

$27.96

4

.SEAL OIL (10X21X5)

09283-10004

$4.61

5

.O-RING This part replaces 17418-33400.

17418-33401

$4.28

6

.O-RING

17435-33400

$14.63

7

.SCREW

02112-0616B

$2.37

8

SHAFT

17511-48G00

Unavailable

9

WASHER

09168-06025

$2.80

10

WASHER

09164-06006

$2.66

11

BOLT

09100-06099

$2.08

12

SHIM

09181-10167

$2.06

13

BOLT

01547-0635A

$2.38
