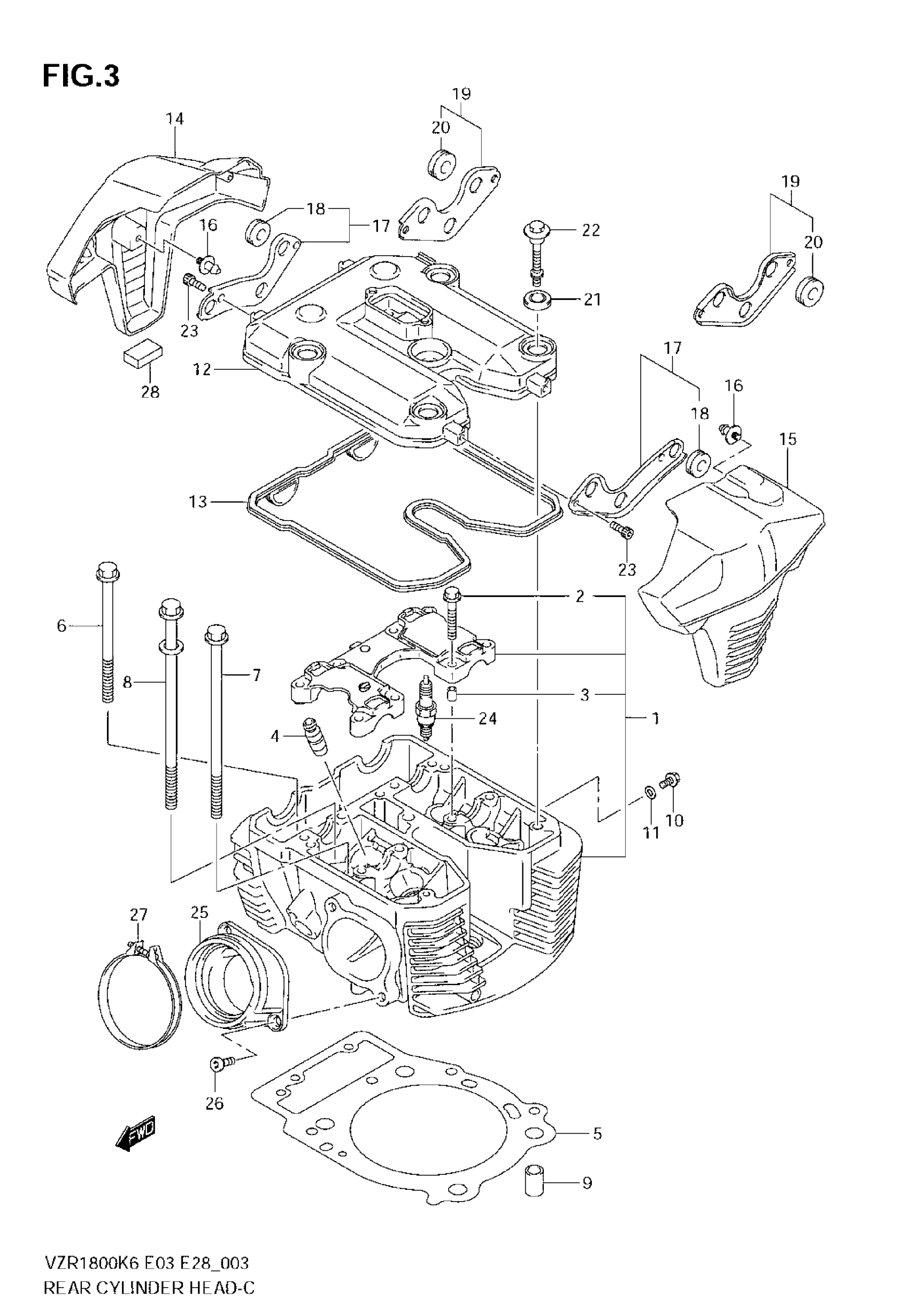

Suzuki VZR1800 (2009) REAR CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER REAR | MODEL K6

11103-48G00

Unavailable

1

HEAD ASSY, CYLINDER REAR | MODEL K7/K8/K9; Includes Item(s) 2 - 3

11103-48G10

Unavailable

2

BOLT (6X39) This part replaces 09103-06026-A05.

09103-06026

$1.84

3

PIN

09206-08001

$1.77

4

GUIDE, VALVE (OS 0.3) | OPT

11115-65J00-001

$36.07

5

GASKET

11142-48G00

$61.08

6

BOLT (8X140) This part replaces 09103-08305-C01.

09103-08305

$17.30

7

BOLT (8X180)

09103-08415

$12.60

8

BOLT (10X190)

09103-10396

$28.57

9

PIN

04211-13189

$2.19

10

BOLT, OIL GALLERY | MODEL K7/K8/K9

09103-06222

$2.28

11

GASKET | MODEL K7/K8/K9

09168-06023

$2.01

12

COVER, CYLINDER HEAD

11170-48G00

Unavailable

13

GASKET

11173-48G00

$34.90

14

CAP, HEAD COVER NO.1 | MODEL K6

11174-48G00

$138.98

14

CAP, HEAD COVER NO.1 | MODEL K7/K8/K9

11174-48G10

Unavailable

15

CAP, HEAD COVER NO.2 | MODEL K6

11175-48G00

$136.40

15

CAP, HEAD COVER NO.2 | MODLE K7/K8/K9

11175-48G10

Unavailable

16

BOLT | MODEL K7/K8/K9

11176-48G00

Unavailable

17

BRACKET,HEAD COVER CAP | MODEL K6; Includes Item(s) 18 This part replaces 11180-48G00-E00.

11180-48G01

$10.97

18

CUSHION (8X22X7) | MODEL K6 This part replaces 09320-08013.

09320-08509

$1.91

19

BRACKET | MODEL K7/K8/K9; Includes Item(s) 20 This part replaces 11180-48G10.

11180-48G20

Unavailable

20

CUSHION (8X22X7) | MODEL K7/K8/K9 This part replaces 09320-08013.

09320-08509

$1.91

21

CUSHION,HEAD COVER BOLT

11192-13E00

$3.97

22

BOLT (6X37.5)

09111-06091

$24.82

23

BOLT

07130-0612A

$2.50

24

SPARK PLUG, CR8EK (NGK)

09482-00412

$9.72

24

SPARK PLUG, U24ETR (DENSO)

09482-00413

$14.37

24

SPARK PLUG, CR9EK (NGK) | OPT

09482-00410

$10.60

24

SPARK PLUG (DENSO,U27ESR-N) | OPT This part replaces 09482-00411.

09482-00459

$5.58

24

SPARK PLUG, CR7EK (NGK) | OPT

09482-00414

$13.63

24

SPARK PLUG, U22ETR (DENSO) | OPT

09482-00415

Unavailable

25

PIPE ASSY,INTAKE This part replaces 13101-48G00.

13101-48G01

$109.97

26

SCREW (6X20.5)

09120-06008

$2.88

27

CLAMP

09402-82208

$5.58

28

CUSHION,HEAD COVER CAP | MODEL K7/K8/K9

11177-48G00

Unavailable
