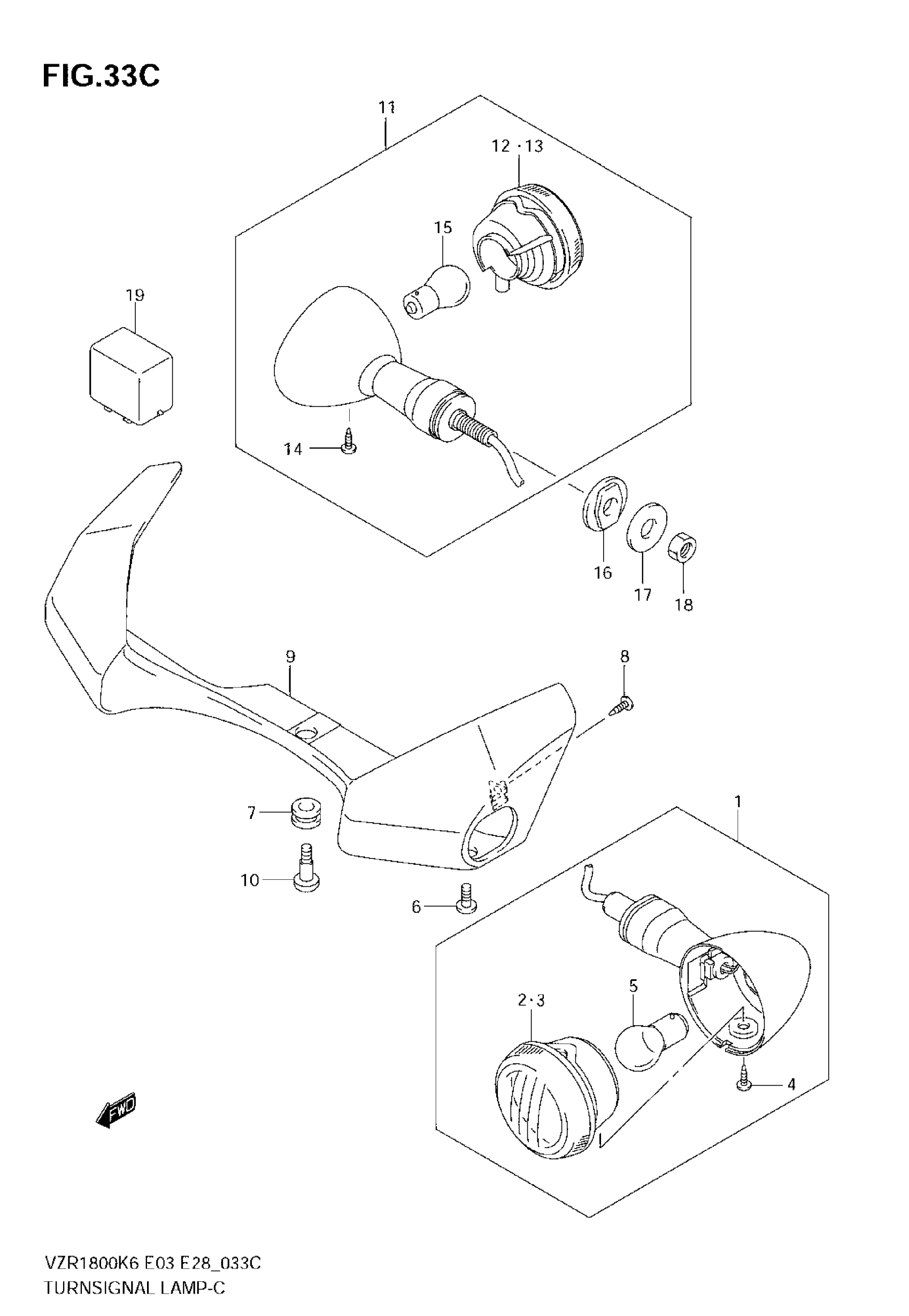

Suzuki VZR1800 (2009) TURNSIGNAL LAMP (VZR1800ZK8) Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL, R

35601-38AH0

$181.72

1

LAMP ASSY, FRONT TURNSIGNAL, L | Includes Item(s) 2 - 5

35602-38AH0

$180.85

2

LENS | FOR RH

35610-48EB0

$50.30

3

LENS | FOR LH

35630-48EB0

$52.23

4

SCREW (4X10)

35623-38AA0

$5.11

5

BULB (12V23/8W) | FOR AMBER

09471-12224

$40.17

6

SCREW, FR TURNSIGNAL LAMP

02142-0612A

$1.49

7

CUSHION

09320-09016

$1.97

8

SCREW, FR TURNSIGNAL

03541-0510A

$1.49

9

COVER, FRONT

35641-48G00

$190.33

10

SCREW, FR (6X16)

09139-06146

$2.95

11

LAMP ASSY, REAR TURNSIGNAL, R

35603-48ED0

$154.02

11

LAMP ASSY,RR TURNSIGNAL LH | Includes Item(s) 12 - 15 This part replaces 35604-38AF0.

35604-38AF1

$111.38

12

LENS | FOR RH

35630-48ED0

$52.23

13

LENS | FOR LH

35610-38AF0

$50.30

14

SCREW (4X10)

35623-38AA0

$5.11

15

BULB (12V21W) | FOR AMBER

09471-12186

$12.66

16

SPACER, REAR TURNSIGNAL LAMP

35695-17C00

$4.03

17

WASHER, REAR TURNSIGNAL | 10.5X30X2.3

09160-10501

$2.33

18

NUT, REAR TURNSIGNAL LAMP

08310-0010A

$1.84

19

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08
