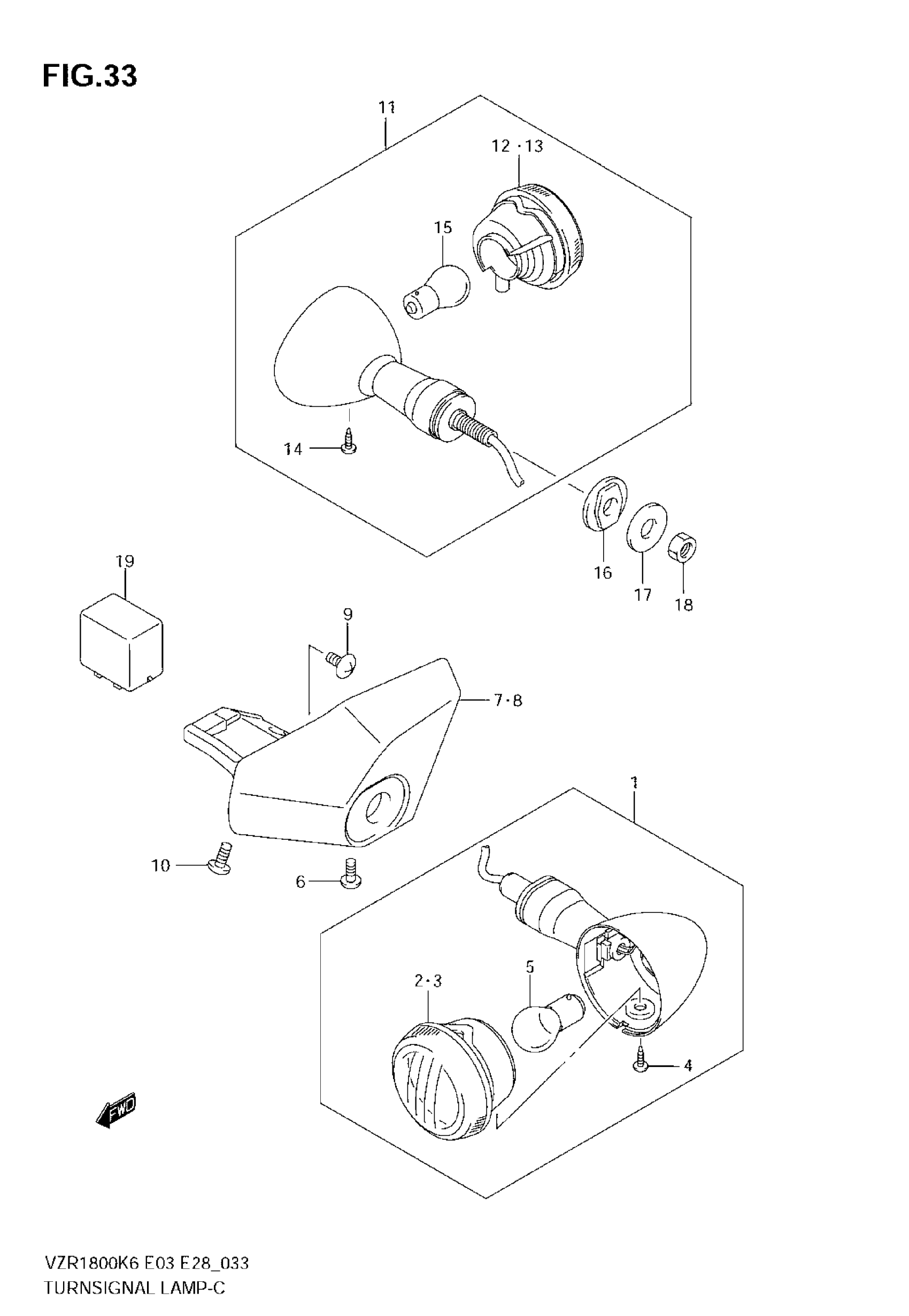

Suzuki VZR1800 (2009) TURNSIGNAL LAMP (VZR1800K6/K7) Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL, R

35601-38AF0

$114.67

1

LAMP ASSY, FRONT TURNSIGNAL, L | Includes Item(s) 2 - 5

35602-38AF0

$114.67

2

LENS | FOR RH

35610-38AA0

$31.91

3

LENS | FOR LH

35630-38AA0

$31.91

4

SCREW (4X10)

35623-38AA0

$5.11

5

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

6

SCREW, FR TURNSIGNAL LAMP

02142-06127

$1.49

7

STAY, FRONT TURNSIGNAL, R

35671-48G00

Unavailable

8

STAY, FRONT TURNSIGNAL, L

35681-48G00

Unavailable

9

SCREW, FR TURNSIGNAL LAMP

09139-08007

$3.70

10

SCREW, FR TURNSIGNAL LAMP

07120-0612A

$2.50

11

LAMP ASSY,RR TURNSIGNAL RH This part replaces 35603-48EC0.

35603-48EC1

$92.68

11

LAMP ASSY,RR TU | Includes Item(s) 12 - 15 This part replaces 35604-48EC0.

35604-48EC1

$110.18

12

LENS | FOR RH

35630-38AE1

$31.91

13

LENS | FOR LH

35610-38AE1

$31.91

14

SCREW (4X10)

35623-38AA0

$5.11

15

BULB (12V21W)

09471-12045

$3.27

16

SPACER, REAR TURNSIGNAL LAMP

35695-17C00

$4.03

17

WASHER, REAR TURNSIGNAL | 10.5X30X2.3

09160-10501

$2.33

18

NUT, REAR TURNSIGNAL LAMP

08310-0010A

$1.84

19

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08
