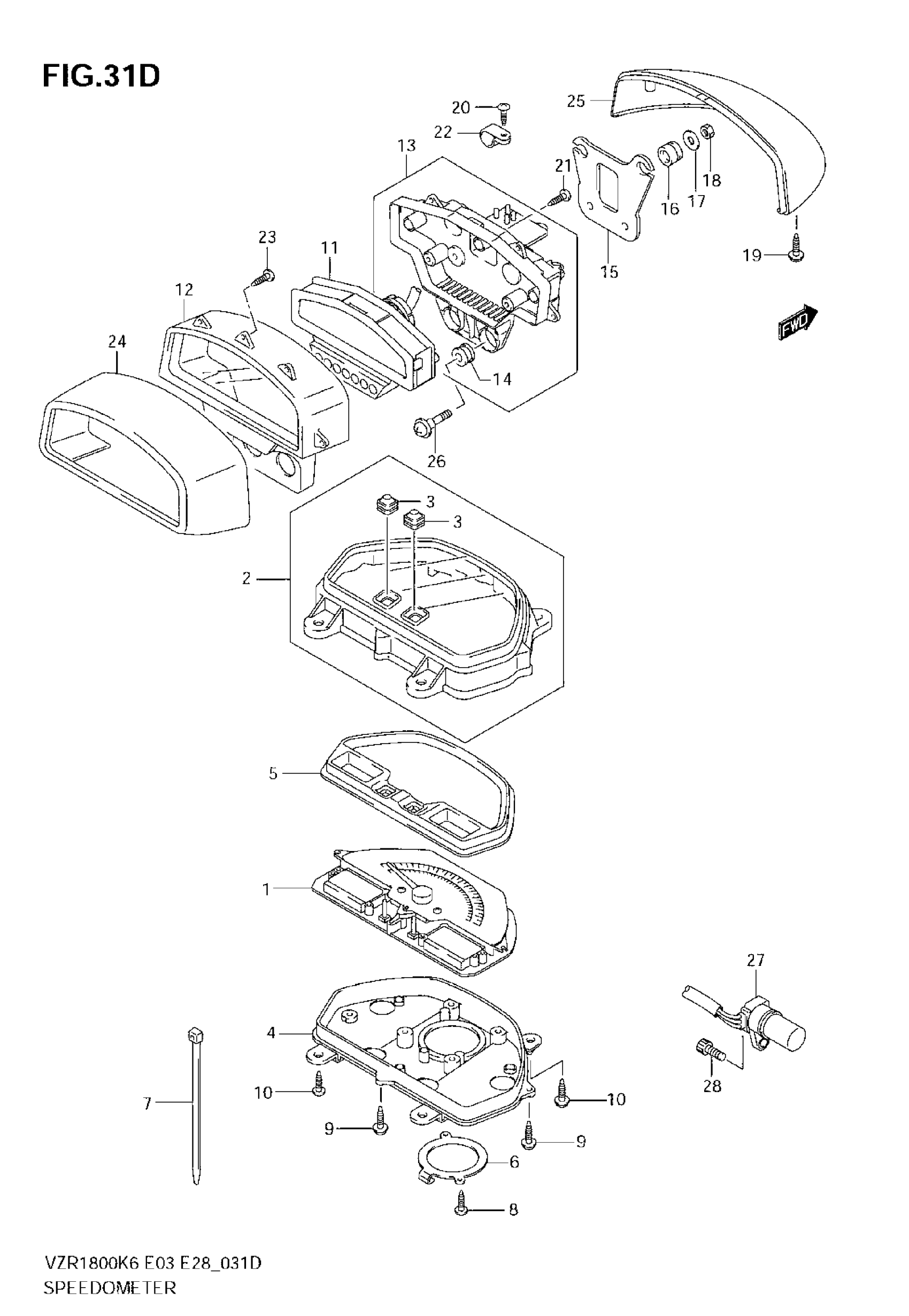

Suzuki VZR1800 (2009) SPEEDOMETER (VZR1800ZK7) Diagram

#

Description
Price

1

SPEEDOMETER

34120-48G30

Unavailable

1

SPEEDOMETER | E28

34120-48G20

Unavailable

2

UPPER CASE ASSY | Includes Item(s) 3

34150-48G00

$123.73

3

SW RUBBER

34124-32F00

$5.75

4

LOWER CASE ASSY

34111-48G00

Unavailable

5

REFLECTOR ASSY

34125-48G00

$71.50

6

BRACKET

34950-48G00

Unavailable

7

CLAMP (L:100)

09407-10404

$2.90

8

.SCREW (3X12)

34183-09F00

$2.56

9

SCREW (3X14)

34149-03G00

$3.71

10

SCREW, SPEEDOMETER

03541-0516A

$1.49

11

TACHOMETER ASSY This part replaces 34220-48G00.

34220-48G01

Unavailable

12

UPPER CASE ASSY

34250-48G00

Unavailable

13

LOWER CASE ASSY | Includes Item(s) 14

34211-48G00

Unavailable

14

CUSHION

34955-33E00

$3.56

15

BRACKET

34296-48G00

Unavailable

16

CUSHION

34955-48G00

Unavailable

17

WASHER (5.2X16X1)

09160-05013

$1.49

18

NUT

08310-00057

$1.84

19

SCREW (4X14)

34149-17E10

$6.23

20

SCREW

03541-1412A

$2.13

21

SCREW (3X14)

34149-03G00

$3.71

22

CLAMP

34198-03A50

Unavailable

23

SCREW (2.3X10.5)

34183-48G00

Unavailable

24

UPPER COVER ASSY

34256-48G00

$109.17

25

LOWER COVER

34257-48G00

Unavailable

26

SCREW, TACHOMETER

34149-48G00

$5.98

27

SENSOR,SPEED This part replaces 34990-48G00.

34990-48G01

$159.05

28

BOLT This part replaces 07130-0616A.

07130-0616B

$2.39
