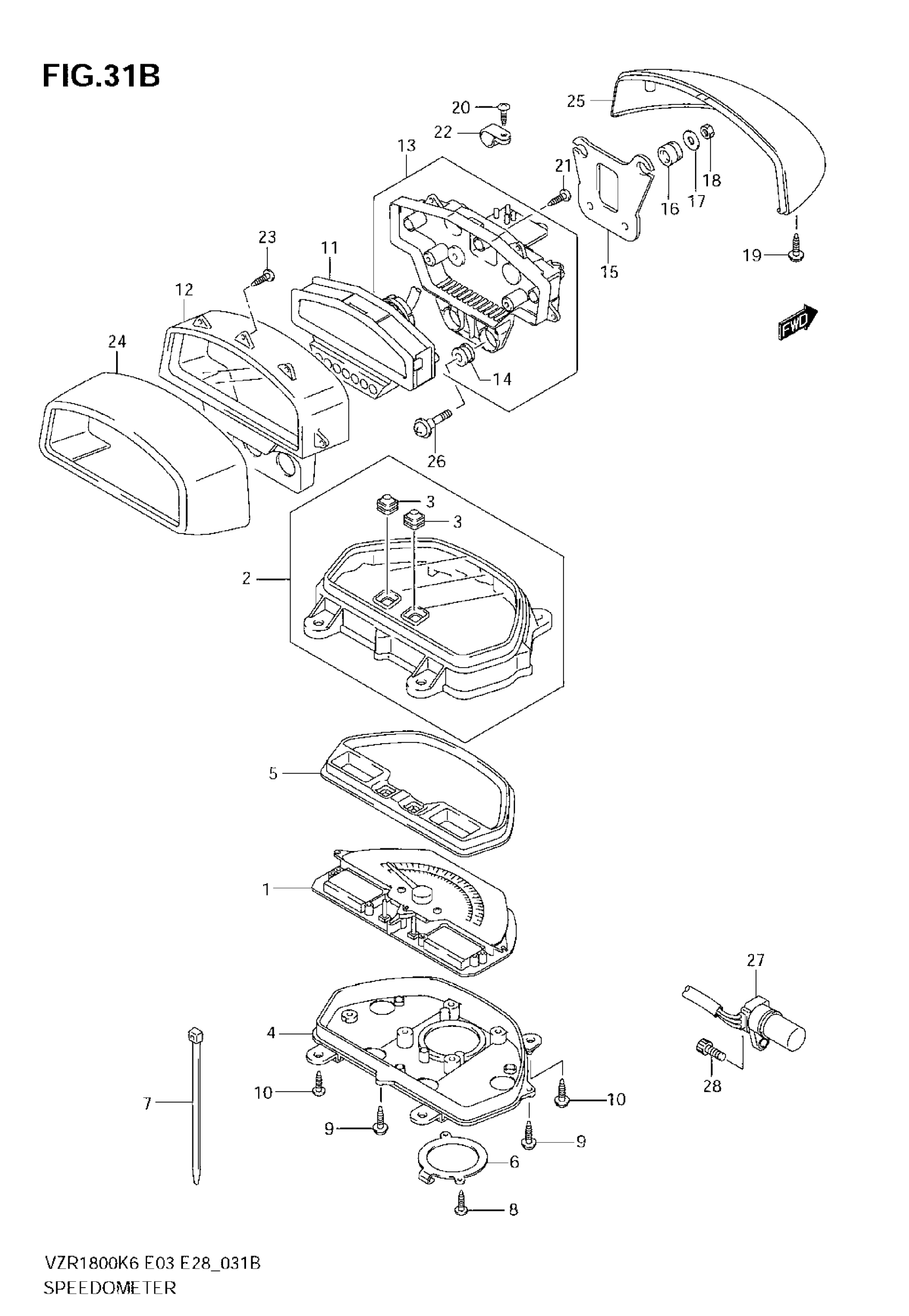

Suzuki VZR1800 (2009) SPEEDOMETER (VZR1800NK6) Diagram

#

Description
Price

1

SPEEDOMETER

34120-48G10

Unavailable

1

SPEEDOMETER | E28

34120-48G00

Unavailable

2

UPPER CASE ASSY | Includes Item(s) 3

34150-48G00

$138.98

3

SW RUBBER

34124-32F00

$6.50

4

LOWER CASE ASSY

34111-48G00

Unavailable

5

REFLECTOR ASSY

34125-48G00

$80.70

6

BRACKET

34950-48G00

Unavailable

7

CLAMP (L:100)

09407-10404

$2.71

8

.SCREW (3X12)

34183-09F00

$1.79

9

SCREW (3X14)

34149-03G00

$3.50

10

SCREW, SPEEDOMETER

03541-0516A

$1.37

11

TACHOMETER ASSY

34220-48G20

Unavailable

12

UPPER CASE ASSY

34250-48G00

Unavailable

13

LOWER CASE ASSY | Includes Item(s) 14

34211-48G00

Unavailable

14

CUSHION

34955-33E00

$3.26

15

BRACKET

34296-48G00

Unavailable

16

CUSHION

34955-48G00

Unavailable

17

WASHER (5.2X16X1)

09160-05013

$1.25

18

NUT

08310-00057

$1.83

19

SCREW (4X14)

34149-17E10

Unavailable

20

SCREW

03541-1412A

$2.16

21

SCREW (3X14)

34149-03G00

$3.50

22

CLAMP

34198-03A50

Unavailable

23

SCREW (2.3X10.5)

34183-48G00

Unavailable

24

UPPER COVER ASSY

34256-48G00

Unavailable

25

LOWER COVER

34257-48G00

Unavailable

26

SCREW, TACHOMETER

34149-48G00

$6.75

27

SENSOR,SPEED This part replaces 34990-48G00.

34990-48G01

$178.65

28

BOLT This part replaces 07130-0616A.

07130-0616B

$2.38
