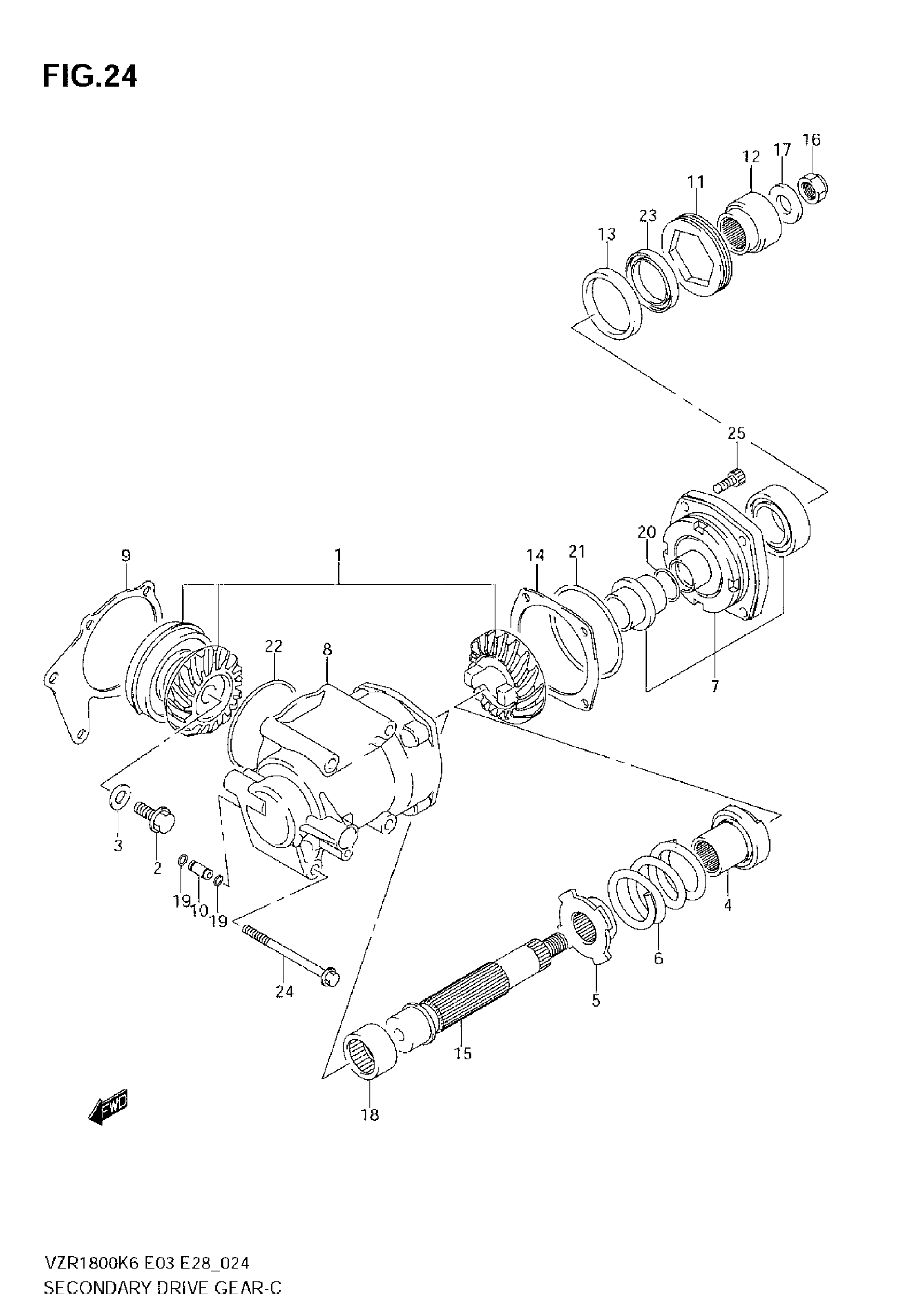

Suzuki VZR1800 (2009) SECONDARY DRIVE GEAR (MODEL K6/K7) Diagram

#

Description
Price

1

GEAR SET, SECONDARY This part replaces 24910-48810.

24910-48830

$1,046.63

2

BOLT (12X24) This part replaces 09103-12084-A05.

09103-12084

$9.22

3

WASHER, SECONDARY DRIVE

09160-12045

$3.76

4

DOG, OUTPUT CAM This part replaces 24923-48G00.

24923-48G10

$145.30

5

STOPPER, CAM SPRING This part replaces 24924-48G00.

24924-48G10

Unavailable

6

SPRING, SECONDARY DAMPER

24925-48G00

$57.45

7

STOPPER, SEC SET, DRIVEN BEVEL

24926-48811

Unavailable

8

CASE, SECONDARY GEAR

24931-48G00

$425.25

9

SHIM SET, DRIVE | T:0.40/0.45/0.50/0.55/0.60/ 0.65/0.70/0.75/0.80

24935-48810

$112.01

10

PIPE, SEC GEAR CASE OIL

24940-26D00

Unavailable

11

STOPPER, SEC DRIVEN

24942-26D00

$81.27

12

COUPLING, SECONDARY DRIVEN This part replaces 24943-48G00.

24943-48G01

$120.15

13

HOUSING, OIL SEAL

24944-48G00

$59.07

14

SHIM SET, SECONDARY | T:0.30/0.35/0.40/0.50/0.60

24945-26810

Unavailable

15

SHAFT, SECONDARY DRIVEN BEVEL

24961-48G00

$196.77

16

NUT, SEC DRIVEN BEVEL COUPLING

09159-16003

$4.33

17

WASHER, SEC DRIVEN BEVEL

09160-16040

$12.75

18

BEARING, SECONDARY DRIVEN

09263-32012

$122.43

19

O RING, SEC CASE OIL PI

09280-06008

$2.06

20

O RING, SEC DRIVE BRG STOPPER

09280-24010

$5.09

21

O RING, BEARING HOUSING | DD:3.7,ID:76.5

09280-78003

$8.20

22

O RING, SECONDARY CASE | DD:2.4,ID:90.8

09280-92002

$17.53

23

SEAL, SECONDARY DRIVEN OIL

09283-38011

$19.48

24

BOLT

01550-0895A

$5.00

25

BOLT, BEARING HOUSING | 8X25

09106-08097

$1.89
