Description

Price

1

WHEEL SET, REAR (18M/CXMT8.5) (SILVER) | Includes Item(s) 2

64100-48810-12Z

Unavailable

2

BUSH, REAR HUB

09319-12019

$12.00

3

SPACER, REAR WHEEL BEARING

64731-48G00

$81.65

4

BEARING, REAR WHEEL, R

09262-25061

$29.88

5

BEARING (25X52X15)

08143-62057

$22.02

6

.SEAL,OIL (32X52X7)

09285-32004

$7.20

7

DISC, REAR BRAKE | VZR1800NK8 This part replaces 69210-10F30.

69210-10F50

$462.72

7

DISC, REAR BRAKE | VZR1800K8/ZK8/K9/NK9

69210-10F50

$462.72

8

BOLT, DISC

09106-08160

$3.22

9

BRACKET, REAR CALIPER

69721-48G00

Unavailable

10

BOLT

09106-12003

$4.66

11

AXLE, REAR

64711-48G00

$242.02

12

SPACER, REAR AXLE, R

64741-48G00

$29.88

13

SPACER, REAR AXLE, L

64772-48G00

$45.40

14

NUT, REAR AXLE

09159-22007

$17.33

15

WASHER, REAR AXLE NUT

09160-22081

$2.80

16

JOINT ASSY, REAR HUB

64680-48G00

$425.25

17

O RING

09280-80001

$3.52

18

BOLT, DRIVEN JOINT WASHER

09119-06049

$1.63

19

WASHER, REAR HUB DRIVEN

64679-48G00

$7.10

20

WASHER, THRUST | VZR1800NK8

64677-48G00

$11.93

20

WASHER, THRUST | VZR1800K8/ZK8/K9/NK9

64677-48G10

$8.37

21

TIRE, REAR (240/40R18M/C 79V) (DUNLOP) | D221 This part replaces 65110-48G00.

65110-48G01

$1,030.53

22

VALVE ASSY, WHEEL RIM

43130-24A00

$8.10

23

BALANCER, WHEEL NO.1

43222-73H10

$6.57

23

BALANCER, WHEEL NO.2

43224-73H10

$4.02

23

BALANCER, WHEEL NO.3

43226-73H10

$4.69

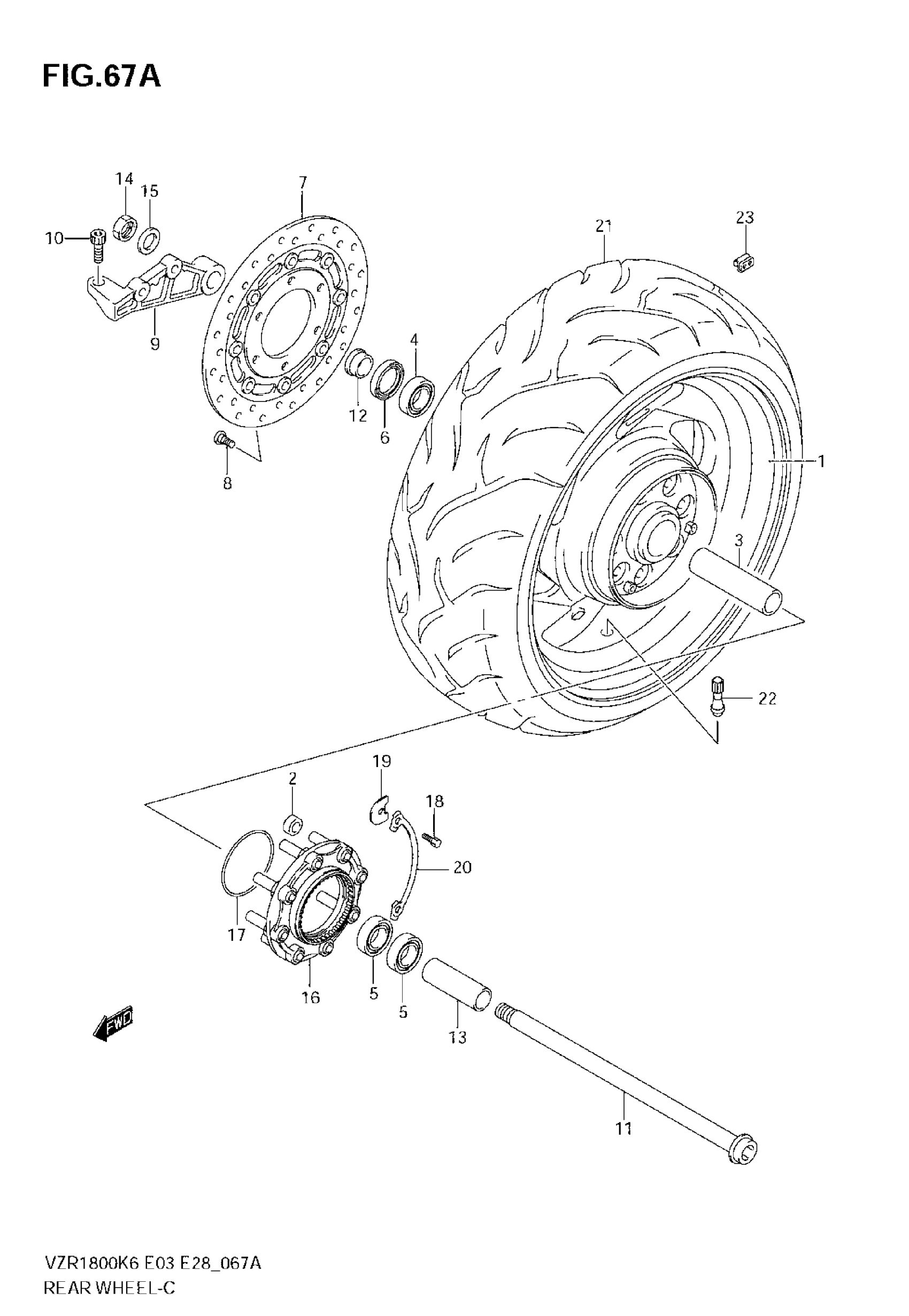

Suzuki VZR1800 (2009) REAR WHEEL (MODEL K8/K9) Diagram
